Advanced Configuration

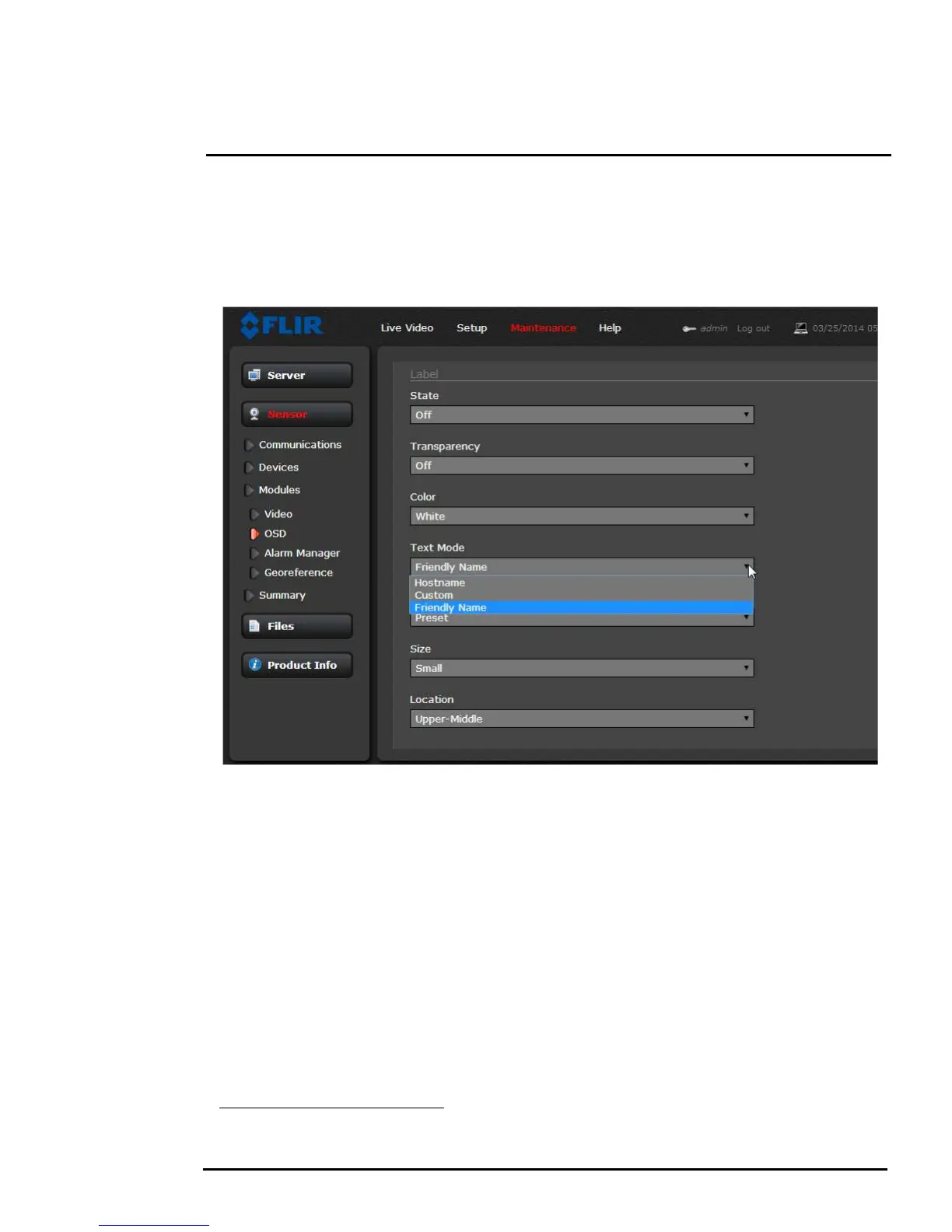

On Screen Display (OSD): Use the OSD page to turn on and configure the On Screen Display
(OSD) options. It may be desirable to display text information (such as the name of the camera or the
date/time) as an overlay on the video image. The OSD configuration page allows certain camera-
related information to be displayed in the analog video and in the IP video streams. It is possible to
display the following parameters as an overlay on the video channels: Date, Time, Label, Preset
2
,
Icon, Menu, Initial System Info, and Thermography Info (FC-Series R camera only).
The Label can display the Friendly Name (configured on the Product Info page), the Hostname
(configured on the LAN Settings page) or a Custom text string (using the Text parameter after
selecting Custom).
The appearance of each text string can be controlled with the following parameters:
• State (on or off)
• Transparency (on indicates only the letters are displayed, off indicates the letters are
displayed inside an opaque block)
• Color (changes the color of the letters)
• Style Mode (can be Preset, which indicates the information is displayed in certain preset
sizes and locations, or Manual, which requires additional size and location settings)
• Size (text size - small, medium or large)
• Location (preset location on the screen where the information will appear)
2. The Preset label is generally used with FLIR pan/tilt cameras.
