Screen elements
9

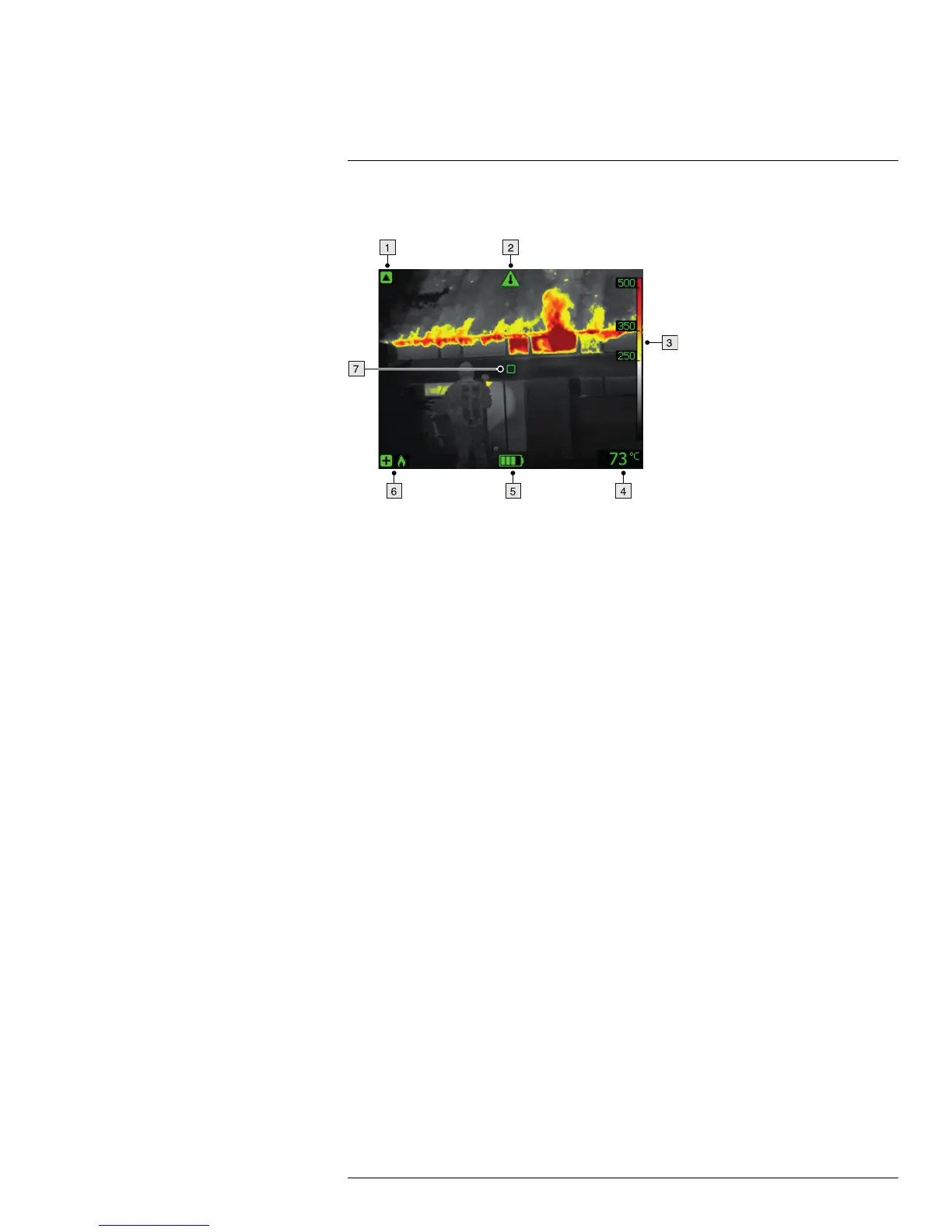

9.1 Figure
9.2 Explanation
1. Low-sensitivity range indicator.
2. Overheating indicator. The indicator provides a visual warning to the user that the ther-
mal imager is about to shut down due to internal overheating.
3. Temperature scale.
4. Digital readout of the temperature at the position of the spotmeter.
5. Battery status indicator.
6. Camera mode indicator (e.g. fire mode).
7. Spotmeter.
Note The icons are displayed in green or blue, depending on the selected camera mode.
• The green icon color indicates that the camera is in a mode where it automatically
switches between the high-sensitivity range and the low-sensitivity range, depending
on the temperature of objects in the field of view.
• The blue icon color indicates that the camera is in a mode where the temperature range
is locked to the high-sensitivity range.
