Targets remain visible until the next sweep. Bearing is indicated by the target’s angular position in
relation to an imaginary line joining the PPI’s origin to the top of the console, as shown in Figure 29.

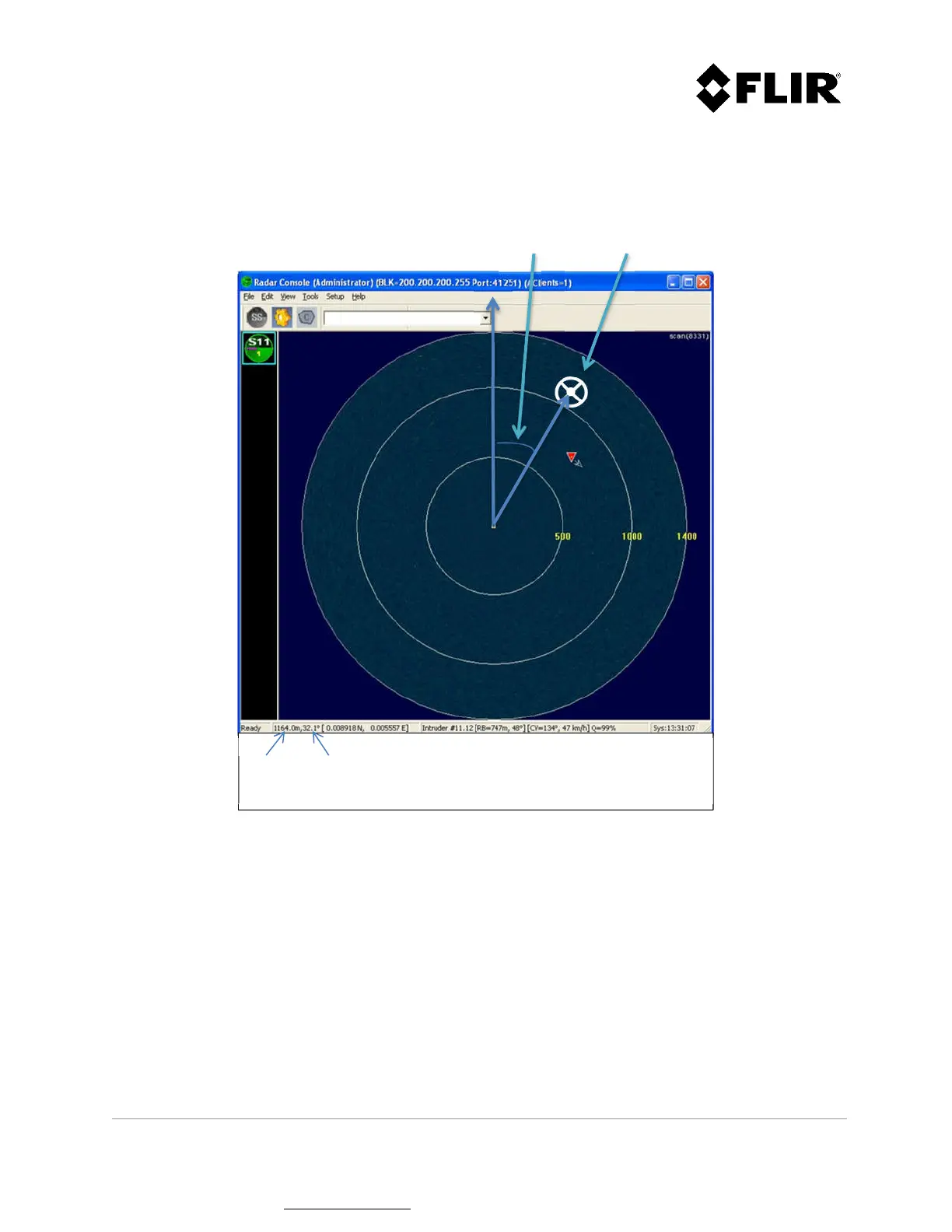

Figure 29 - Cursor Position Indicator
The PPI position displays as a range and bearing relative to the radar position and as latitude and
longitude coordinates. The bearing angle is given relative to North.
Cursor
distance to
radar
Cursor
angle to
centre
Cursor
angle to
centre
Cursor
