2.2.4.2 Continuous Mode
This mode is used to continually scan the radar between two fixed positions in azimuth and tilt angles.
The radar azimuth pan speed can also be configured. To enable a continuous rotation, the az_1 and
az_2 angles should be set to 0 and 360 respectively. In that case, the tilt angle tilt_1 only will be used.

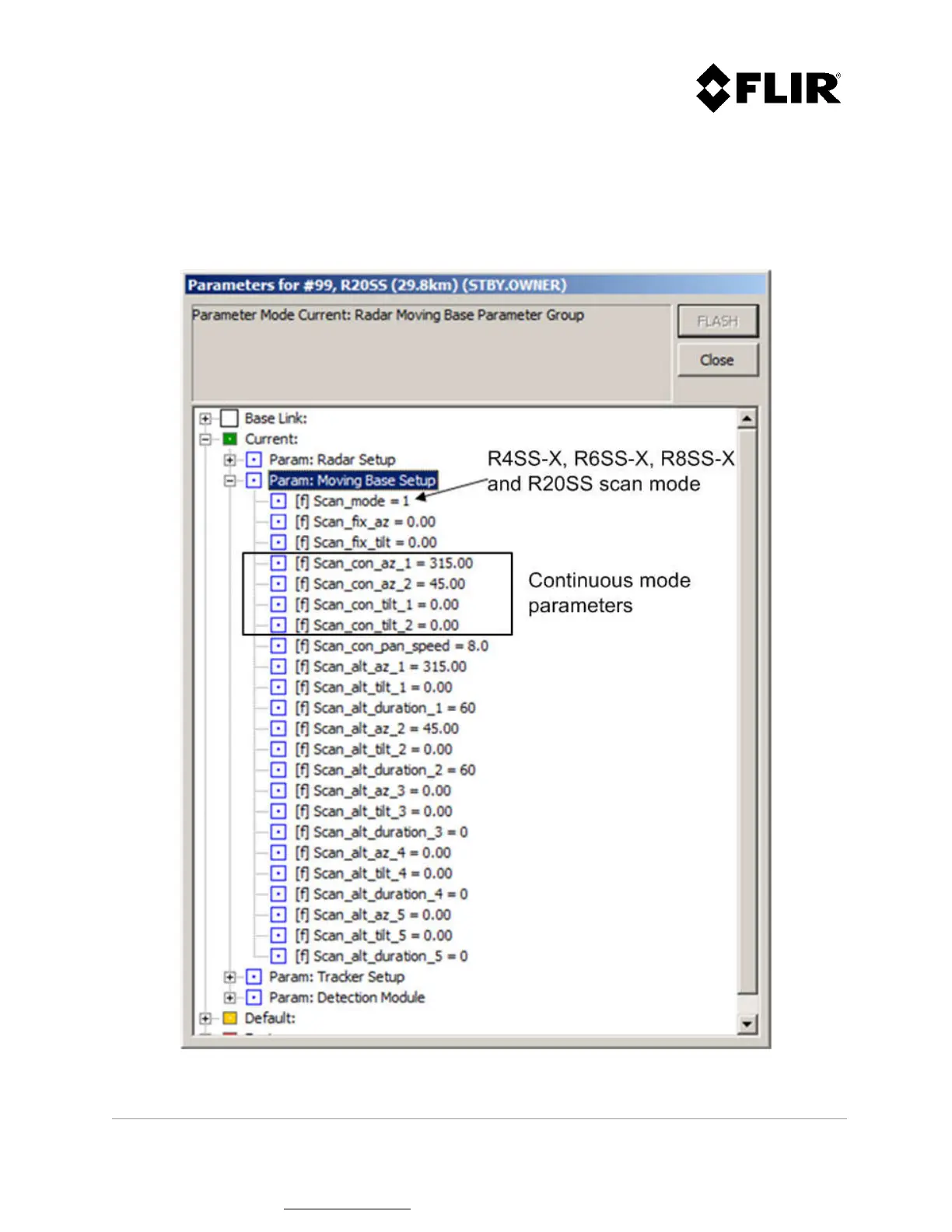

Figure 13 - Continuous Mode Configuration Parameters
