910-0001-00-MAN-R06 FLIR Proprietary Information Page 48 of 81
Information contained in this document pertains to a Canadian origin product that is controlled as "dual use" by the Canadian
government. However, when in the United States or possessed by a US person, it may be considered a defense article from the US Government's
perspective. US government authorization may be required for re-transfer to a foreign person. If you have any questions, please contact FLIR's
Global Trade Compliance group at exportquestions@flir.com .
2.2.6.6 PPI Color Palette
The PPI Color Palette command displays the radar sectors in an alternate set of colors. The PPI color
intensity is increased by pressing the + (Add) key or decreased by pressing the – (Minus) key.

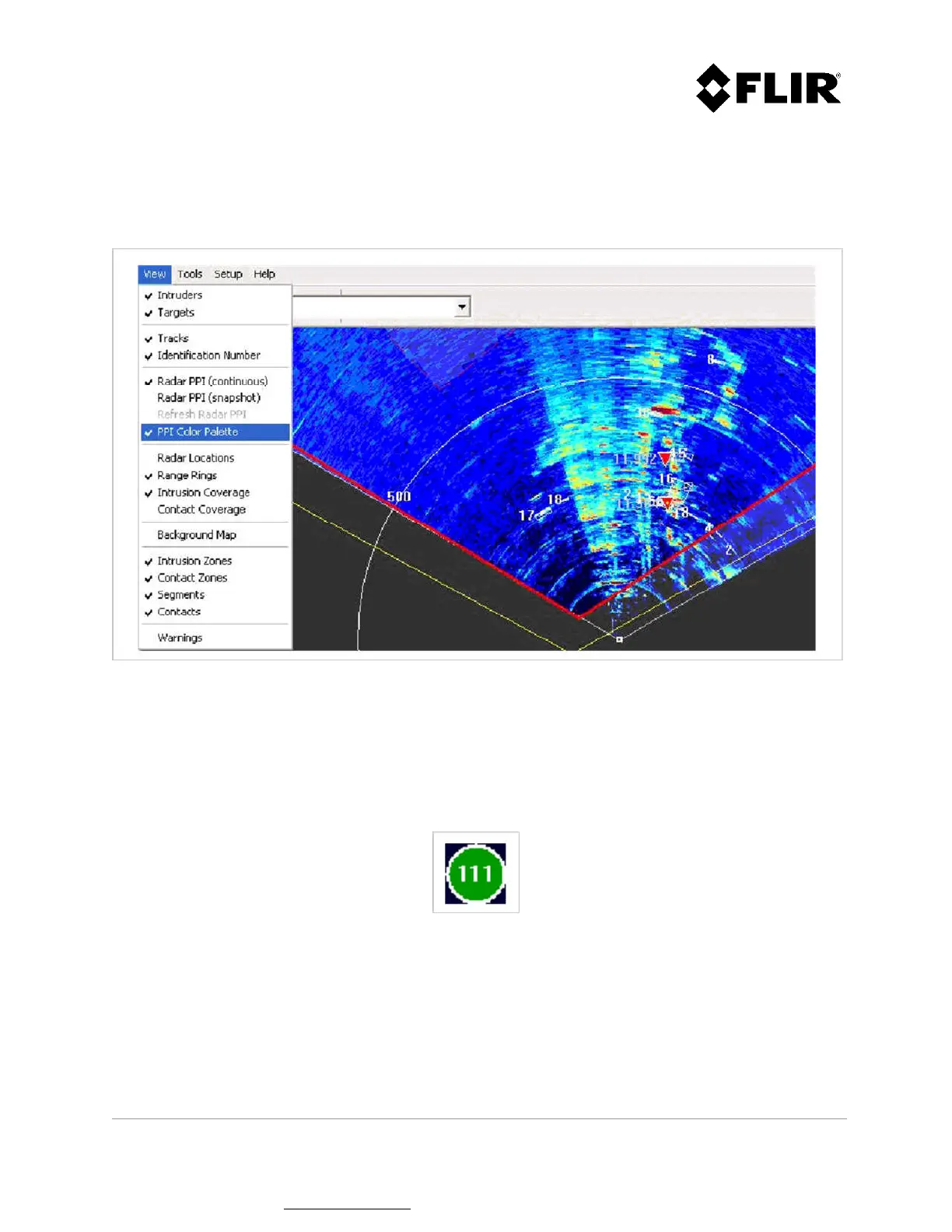

Figure 33 - PPI Color Palette
2.2.6.7 Radar Location
The Radar Location command displays a radar icon at the location of the radar currently selected in
the left pane of the Radar Console Application.
Figure 34 – Radar Location
