2.2.6 PPI Display
The commands described in the following sub-sections are accessed using the View Menu.

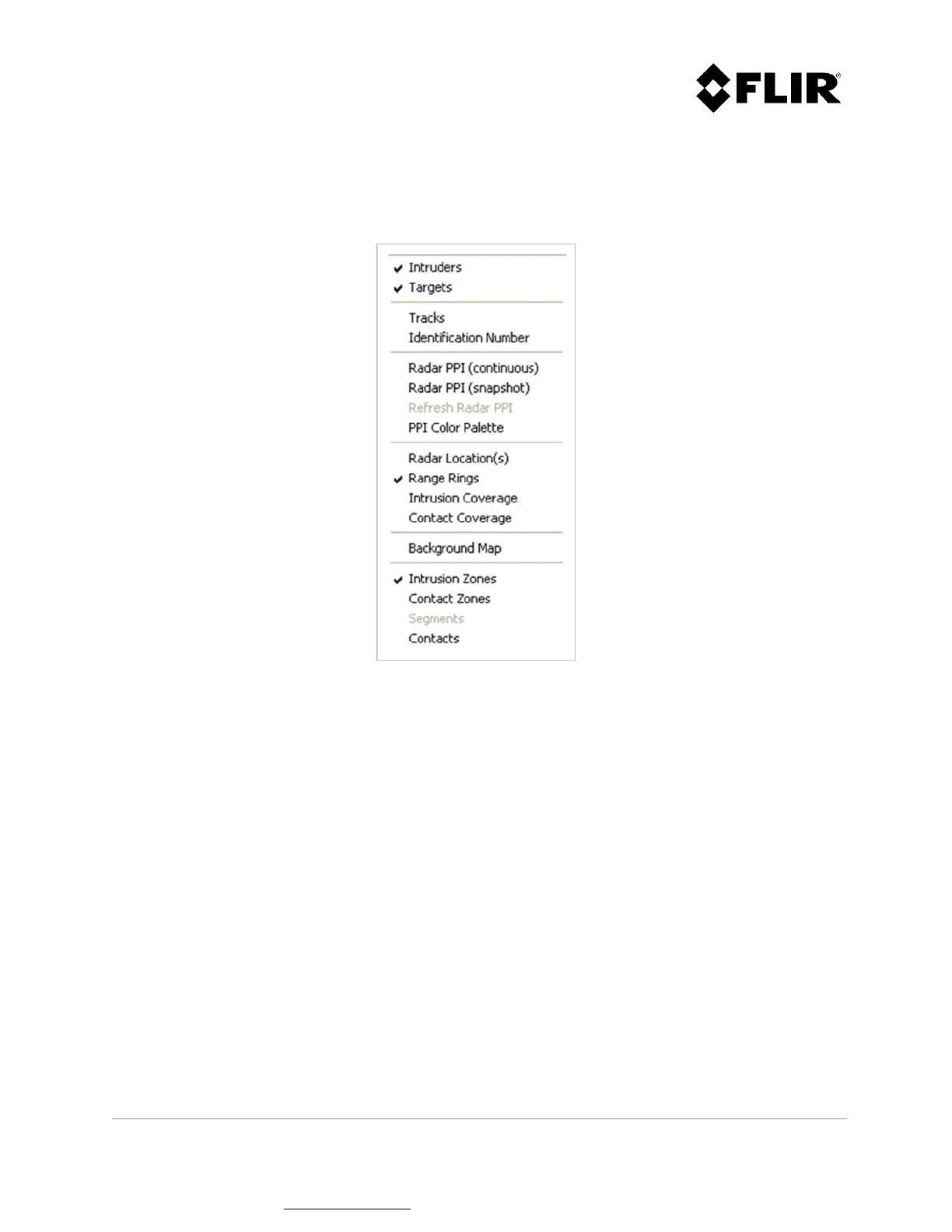

Figure 28 - View Menu Commands
2.2.6.1 Radar PPI (Continuous)
The PPI displays radar sectors in a continuous mode as they are received. The PPI uses a radial sweep
pivoting about the center of the display, resulting in a map-like picture of the area covered by the
radar beam.
