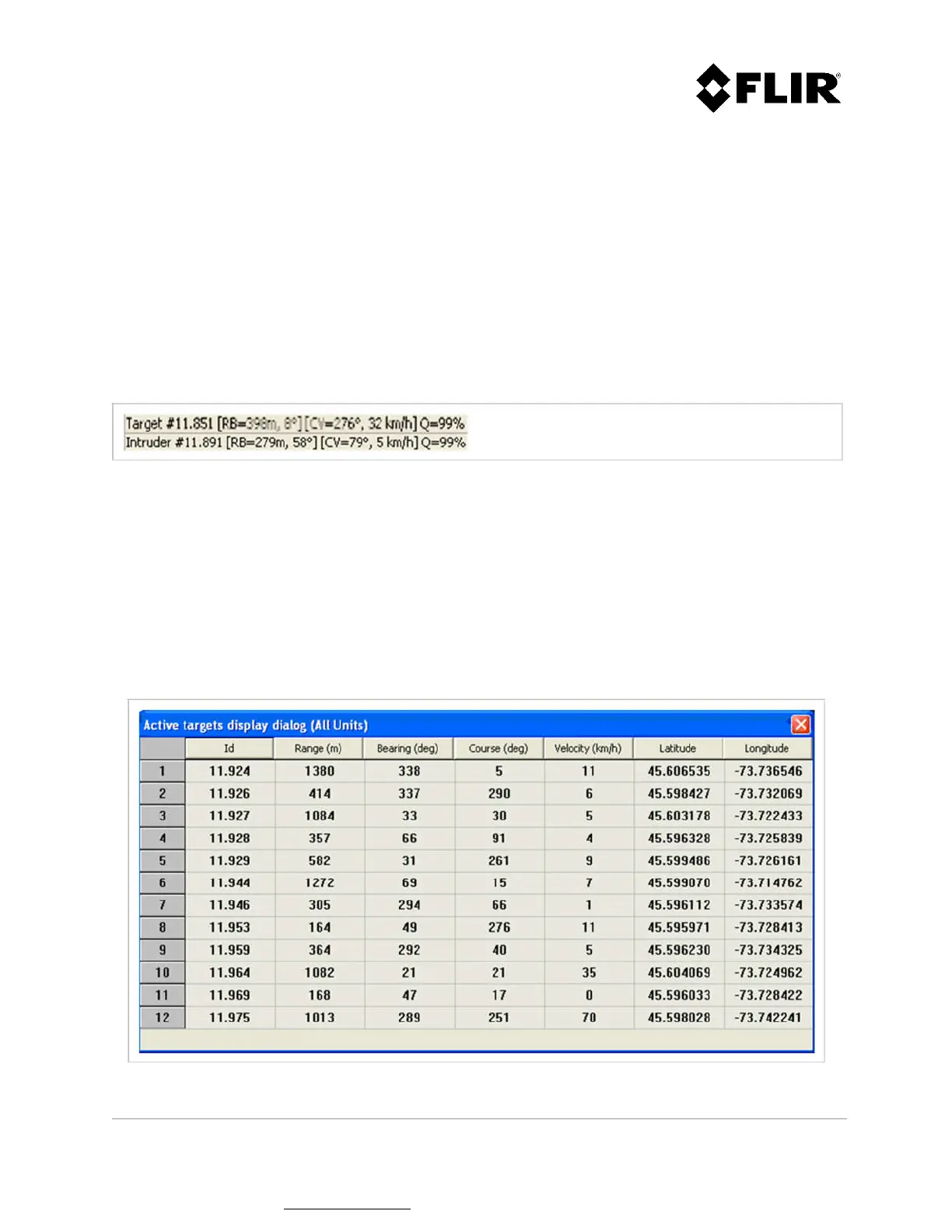

FLIR Ranger R3 - Figure 42 - Selected Intruder; Target Status Line Information; Figure 43 - Targets;Intruders List View

910-0001-00-MAN-R06 FLIR Proprietary Information Page 56 of 81
Information contained in this document pertains to a Canadian origin product that is controlled as "dual use" by the Canadian
government. However, when in the United States or possessed by a US person, it may be considered a defense article from the US Government's
perspective. US government authorization may be required for re-transfer to a foreign person. If you have any questions, please contact FLIR's
Global Trade Compliance group at exportquestions@flir.com .
Hovering the mouse cursor over an intruder or track symbol will display the following information:
 Type (intruder / target)
 Identification number
 Range
 Bearing
 Course
 Speed
 Quality
The information is continuously updated at the bottom of the PPI as shown in Figure 42. It continues to
be displayed until the target no longer exists.
Figure 42 - Selected Intruder / Target Status Line Information
There are two alternate ways to display information on intruders and targets: the List View and the
Tree View. These are enabled via the Tools menu Targets/Intruders List View (Figure 43) and
Targets/Intruders Tree View (Figure 44) commands.
In the Targets/Intruders List View, left clicking with the mouse on any column will sort the targets and
intruders based on the selected column. This view is limited to a total of twelve (12) targets and
intruders. If there are more, they will not be listed in this view. For a complete view, use the
Targets/Intruders Tree View (Figure 44).
Figure 43 - Targets/Intruders List View
