Installation
9
427-0200-00-12 - Revision 110 - May 2021

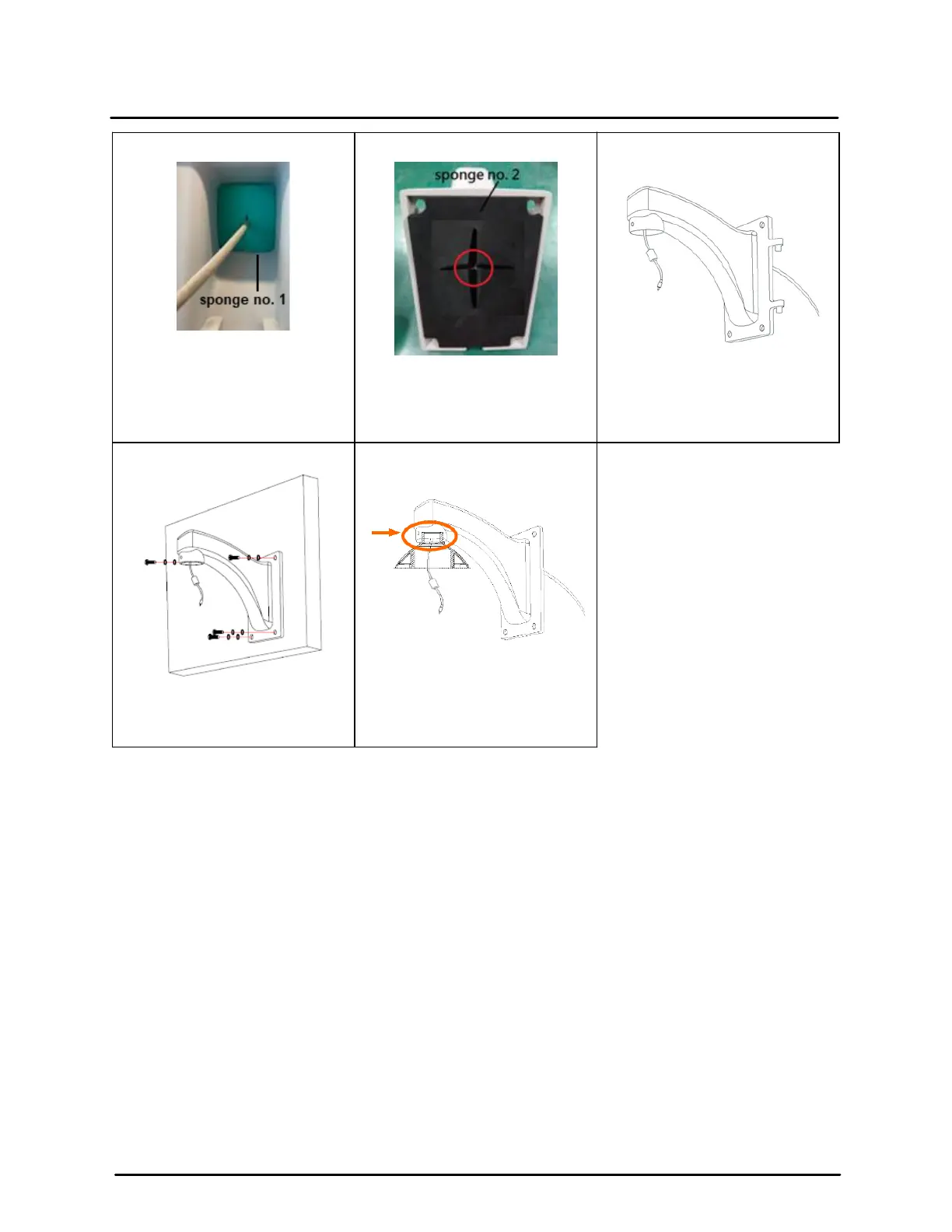

Place the smaller, green sponge
inside the bracket and route the
cables through the center of it,
as shown. You might need to cut
a slit in the sponge.
Place the larger, black sponge
inside the bracket, as shown.
Route the cables through the
pre-cut cross in the sponge.
Route the cables through the
bracket.
Affix the bracket to the wall using
the appropriate screws and
screw anchors (not provided).
Use the Allen key and a hex
head cap screw to assemble and
firmly affix the camera's pendant
cap to the bracket.
