Handling the camera13

Follow this procedure:

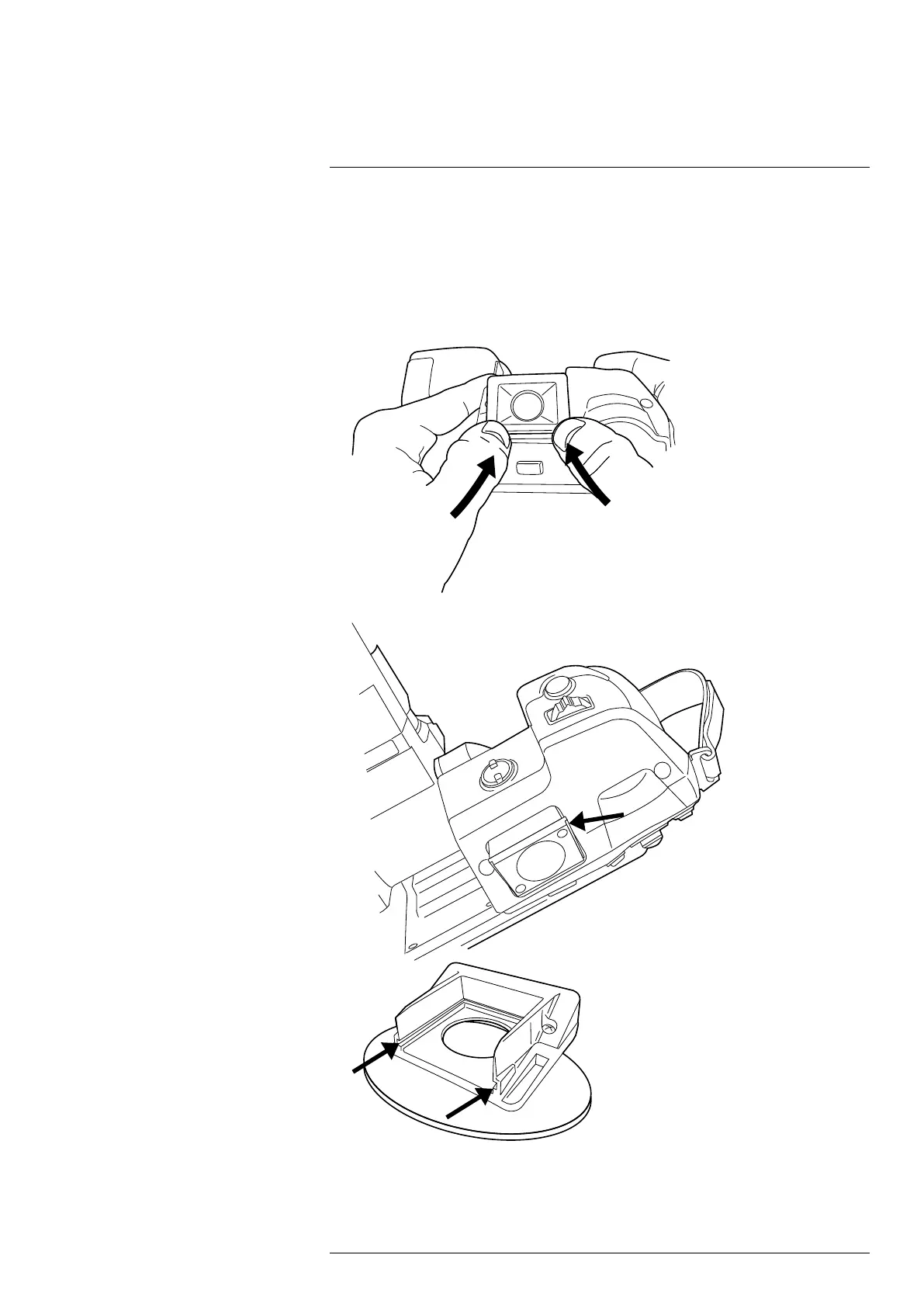

1. Put your thumbs at the lower part of the eyecup. Push the eyecup horizontally, away

from the touch-screen LCD side, until the eyecup slides out from its mount.

Note To remove the eyecup, you must slide it out from its mount. Do not pull the

eyecup straight up.

2. Note the grooves on the eyecup mount on the camera and on the new eyecup.

#T559880; r. AK/36075/36075; en-US

Default Chapter7
- Table of Contents7
1 Disclaimers15
- Legal Disclaimer15
- Usage Statistics15
- Changes to Registry15
- Government Regulations15
- Copyright15
- Quality Assurance15
- Patents15
- EULA Terms15
2 Safety Information17
3 Notice to User21
- User-To-User Forums21
- Calibration21
- Accuracy21
- Disposal of Electronic Waste21
- Training21
- Documentation Updates21
- Important Note about this Manual21
- Note about Authoritative Versions21
4 Customer Help22
- General22
- Submitting a Question22
- Downloads23
5 Quick Start Guide24
- Procedure24
6 List of Accessories and Services25
7 Note about Ergonomics27
- General27
- Figure27
8 Camera Parts28
- View from the Right28
  - Explanation28
  - Figure28
- View from the Left29
  - Explanation29
  - Figure29
- View from the Rear30
  - Explanation30
  - Figure30
- View from the Bottom31
  - Explanation31
  - Figure31
- Battery Condition LED Indicator32
  - Explanation32
  - Figure32
- Power LED Indicator32
- Laser Pointer33
9 Screen Elements34
- Figure34
  - Explanation34
10 Navigating the Menu System35
- Figure35
  - Explanation35
11 Pairing Bluetooth Devices36
- General36
- Procedure36
12 Configuring Wi-Fi37
- General37
- Setting up a Peer-To-Peer Connection (most Common Use)37
- Connecting the Camera to a Wireless Local Area Network (Less Common Use)37
13 Handling the Camera38
- Charging the Battery38
  - Using the Power Supply to Charge the Battery38
  - Using the Stand-Alone Battery Charger to Charge the Battery38
- Turning on the Camera38
  - Procedure38
- Turning off the Camera38
- Adjusting the Viewfinder's Dioptric Correction39
  - Figure39
  - Procedure39
- Adjusting the Angle of the Lens40
- Figure40
- Adjusting the Infrared Camera Focus Manually40
  - Procedure40
- Autofocusing the Infrared Camera41
  - Figure41
  - Procedure41
- Continuous Autofocus41
  - General41
- Operating the Laser Pointer42
  - Figure42
  - Procedure42
- Using the Digital Zoom Function43
  - Figure43
  - Procedure43
- Changing Lenses43
- Calibrating the Compass45
  - Procedure45
- Changing the Viewfinder Eyecup45
- Using the Camera Lamp as a Flash47
  - General47
  - Procedure47
14 Working with Images48
- Saving an Image48
- Previewing an Image48
  - Procedure49
- Opening a Saved Image49
  - General49
- Editing a Saved Image49
- Adjusting an Infrared Image50
- Performing a Non-Uniformity Correction (NUC)51
  - What Is a Non-Uniformity Correction51
  - When to Perform a Non-Uniformity Correction51
- Changing the Temperature Range51
  - General51
  - Procedure52
- Hiding Overlay Graphics (Programmable Button)52
  - General52
- Changing the Color Palette52
- Deleting an Image53
  - General53
  - Procedure53
- Deleting All Images53
- Creating a PDF Report in the Camera53
  - Naming Convention53
15 Working with Image Modes55
- General55
- Image Examples55
- Selecting the Image Mode56
16 Working with Measurement Tools57
- General57
- Adding/Removing Measurement Tools57
- Working with User Presets57
  - Procedure57
- Resizing or Moving a Measurement Tool58
  - General58
  - Procedure58
- Changing Object Parameters58
- Displaying Values in the Result Table and Displaying a Graph60
  - General60
  - Procedure61
- Creating and Setting up a Difference Calculation61
  - General61
- Setting a Measurement Alarm62
17 Fetching Data from External FLIR Meters65
- General65
- Supported FLIR Meters65
- Technical Support for External Meters65
- Typical Moisture Measurement and Documentation Procedure65
  - Procedure65
- More Information66
18 Working with Color Alarms and Isotherms67
- Color Alarms67
  - General67
  - Image Examples67
- Setting up Above, Below, and Interval Alarms68
- Building Isotherms69
19 Annotating Images70
- General70
- Adding a Note70
  - Procedure70
- Adding a Table71
  - General71
  - Procedure71
- Adding a Voice Annotation71
- Adding a Sketch72
  - General72
  - Procedure72
20 Programming the Camera (Time Lapse)73
- General73
- Procedure73
21 Recording Video Clips74
- General74
- Procedure74
22 Screening Alarm75
- General75
- Procedure75
23 Changing Settings76
- General76
- Procedure77
24 Technical Data78
- Online Field-Of-View Calculator78
- Note about Technical Data78
- Note about Authoritative Versions78
- FLIR T600 15° (Incl. Wi-Fi and Ext. Cal.)79
- FLIR T600 15° (Incl. Wi-Fi)85
- FLIR T600 25° (Incl. Wi-Fi and Ext. Cal.)91
- FLIR T600 25° (Incl. Wi-Fi)97
- FLIR T600 25° and 15° W/Case103
- FLIR T600 25° and 45° W/Case109
- FLIR T600 45° (Incl. Wi-Fi and Ext. Cal.)115
- FLIR T600 45° (Incl. Wi-Fi)121
- FLIR T600Bx 25° (Incl. Wi-Fi and Ext. Cal.)127
- FLIR T600Bx 25° (Incl. Wi-Fi)133
- FLIR T600Bx 45° (Incl. Wi-Fi and Ext. Cal.)139
- FLIR T600Bx 45° (Incl. Wi-Fi)145
- FLIR T610 15° (Incl. Wi-Fi)151
- FLIR T610 25° (Incl. Wi-Fi)157
- FLIR T610 45° (Incl. Wi-Fi)163
- FLIR T620 15° (Incl. Wi-Fi and Ext. Cal.)169
- FLIR T620 15° (Incl. Wi-Fi)175
- FLIR T620 25° (Incl. Wi-Fi and Ext. Cal.)181
- FLIR T620 25° (Incl. Wi-Fi)187
- FLIR T620 25° and 15° (Incl. Wi-Fi)193
- FLIR T620 25° and 45° (Incl. Wi-Fi)199
- FLIR T620 45° (Incl. Wi-Fi and Ext. Cal.)205
- FLIR T620 45° (Incl. Wi-Fi)211
- FLIR T620Bx 15° (Incl. Wi-Fi and Ext. Cal.)217
- FLIR T620Bx 15° (Incl. Wi-Fi)223
- FLIR T620Bx 25° (Incl. Wi-Fi and Ext. Cal.)229
- FLIR T620Bx 25° (Incl. Wi-Fi)235
- FLIR T620Bx 45° (Incl. Wi-Fi and Ext. Cal.)241
- FLIR T620Bx 45° (Incl. Wi-Fi)247
- FLIR T630 15° (Incl. Wi-Fi)253
- FLIR T630 25° (Incl. Wi-Fi)259
- FLIR T630 45° (Incl. Wi-Fi)265
- FLIR T630Sc 15° (Incl. Wi-Fi)271
- FLIR T630Sc 25° (Incl. Wi-Fi)277
- FLIR T630Sc 25° and 45° W/Case283
- FLIR T630Sc 45° (Incl. Wi-Fi)289
- FLIR T640 15° (Incl. Wi-Fi and Ext. Cal.)295
- FLIR T640 15° (Incl. Wi-Fi)301
- FLIR T640 25° (Incl. Wi-Fi and Ext. Cal.)307
- FLIR T640 25° (Incl. Wi-Fi)313
- FLIR T640 25° and 15° (Incl. Wi-Fi)319
- FLIR T640 25° and 45° (Incl. Wi-Fi)325
- FLIR T640 45° (Incl. Wi-Fi and Ext. Cal.)331
- FLIR T640 45° (Incl. Wi-Fi)337
- FLIR T640Bx 15° (Incl. Wi-Fi and Ext. Cal.)343
- FLIR T640Bx 15° (Incl. Wi-Fi)349
- FLIR T640Bx 25° (Incl. Wi-Fi and Ext. Cal.)355
- FLIR T640Bx 25° (Incl. Wi-Fi)361
- FLIR T640Bx 45° (Incl. Wi-Fi and Ext. Cal.)367
- FLIR T640Bx 45° (Incl. Wi-Fi)373
- FLIR T650Sc 15° (Incl. Wi-Fi)379
- FLIR T650Sc 25° (Incl. Wi-Fi)385
- FLIR T650Sc 25° and 15° W/Case391
- FLIR T650Sc 25° and 45° W/Case397
- FLIR T650Sc 45° (Incl. Wi-Fi)403
- FLIR T660 15° (Incl. Wi-Fi and Ext. Cal.)409
- FLIR T660 15° (Incl. Wi-Fi)415
- FLIR T660 25° (Incl. Wi-Fi and Ext. Cal.)421
- FLIR T660 25° (Incl. Wi-Fi)427
- FLIR T660 25° and 15° W/Case433
- FLIR T660 25° and 45° W/Case439
- FLIR T660 45° (Incl. Wi-Fi and Ext. Cal.)445
- FLIR T660 45° (Incl. Wi-Fi)451
25 Mechanical Drawings457
26 CE Declaration of Conformity467
27 Cleaning the Camera469
- Camera Housing, Cables, and Other Items469
- Infrared Lens469
- Infrared Detector469
  - General469
  - Procedure470
28 Application Examples471
- Moisture & Water Damage471
  - General471
  - Figure471
- Faulty Contact in Socket471
- Oxidized Socket472
  - General472
  - Figure472
- Insulation Deficiencies473
  - General473
  - Figure473
- Draft473
29 About FLIR Systems475
- More than Just an Infrared Camera476
- Sharing Our Knowledge476
- Supporting Our Customers476
30 Glossary478
31 Thermographic Measurement Techniques481
- Introduction481
- Emissivity481
  - Finding the Emissivity of a Sample481
- Reflected Apparent Temperature484
- Distance485
- Relative Humidity485
- Other Parameters485
32 History of Infrared Technology486
33 Theory of Thermography489
- Introduction489
- The Electromagnetic Spectrum489
- Blackbody Radiation489
- Infrared Semi-Transparent Materials495
34 The Measurement Formula496
35 Emissivity Tables500
- References500
- Tables500
