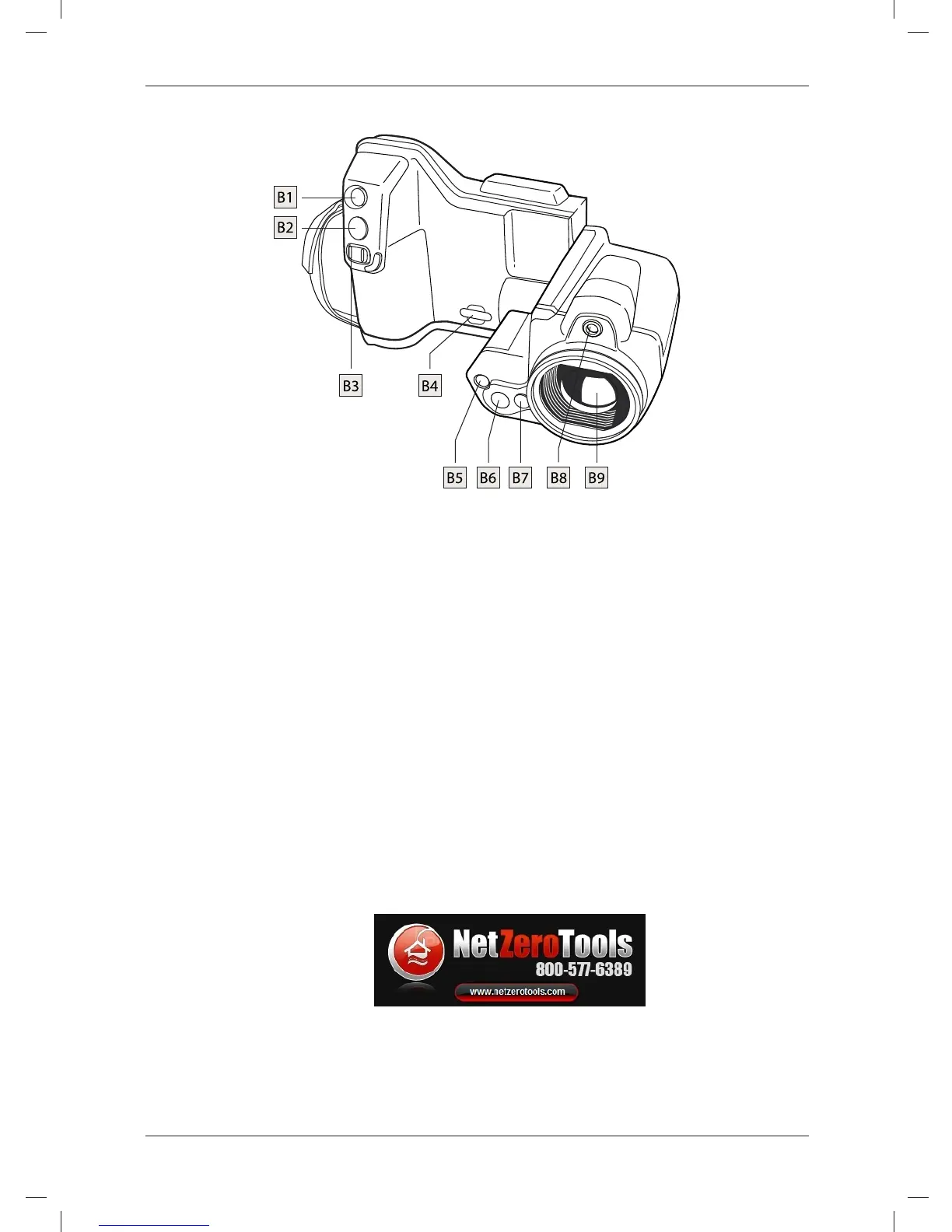

Front view
B1 Laser pointer button: Push to activate the laser pointer.
B2 This button has two main functions:
1. Preview/Save: Push the button fully down to save an infrared image and a
digital photo simultaneously. Note: The behavior of this button can be
changed under Settings to one of the following:
Preview/Save.
Save directly (default).
Always preview.
2. Autofocus: Push the button halfway down to autofocus the camera.
B3 Focus button: Move left/right to manually focus the camera.
B4 Attachment point for the neck strap.
B5 Video lamp.
B6 Digital camera lens.
B7 Release button for additional infrared lenses.
B8 Laser pointer.
B9 Infrared lens.
© 2012, FLIR Systems, Inc. All rights reserved worldwide.
10
Publ. no. T559755, rev. 000
www.netzerotools.com
www.netzerotools.com

Other manuals for FLIR T640

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the FLIR T640 and is the answer not in the manual?

FLIR T640 Specifications

General IconGeneral
Resolution640 x 480 pixels
Temperature Range-40°C to +2000°C
Field of View25° × 19°
Digital Camera5MP
Laser PointerYes
Wi-FiYes
Spatial Resolution (IFOV)0.68 mrad
Image Frequency30 Hz
Accuracy±2°C or ±2% of reading
Video RecordingYes
MeterLinkYes
Operating Temperature-15°C to +50°C
Storage Temperature-40°C to +70°C
ConnectivityUSB, Wi-Fi, Bluetooth
Battery LifeUp to 4 hours
FocusAutomatic or manual
Weight1.3 kg (2.9 lbs)
Spectral Range7.5 - 14 µm
Image StorageSD card
Thermal Sensitivity<30 mK
Lens Options15°, 45°
