FLIR TG165-X User Manual

Description
4
4.1 Product Description

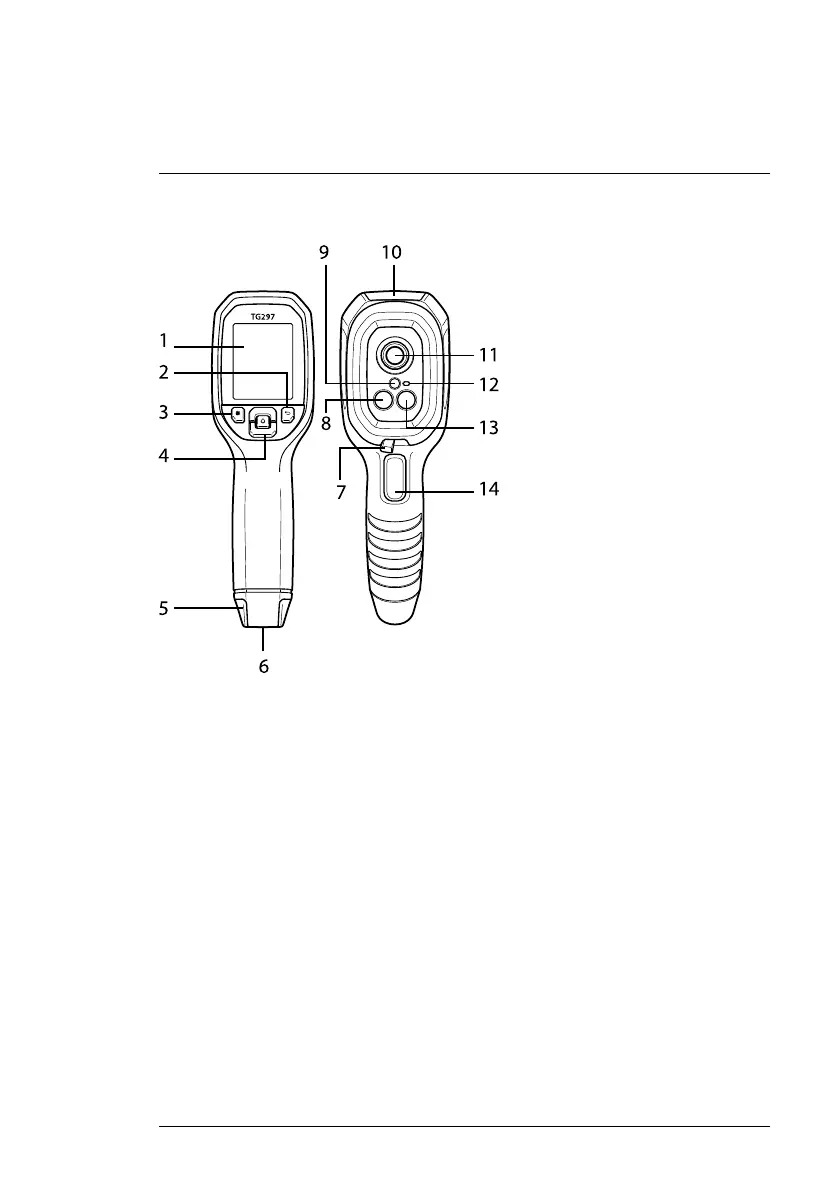

Figure 4.1 Imaging IR Thermometer Description (TG297 pictured)
1. Display area
2. Return button (to back up in the menu system)
3. Laser pointer button
4. Up/Down Navigation buttons and Power button (long press)/Menu button
(short press)
5. Lanyard post
6. Accessory mount
7. High temperature filter switch (TG297)
8. Lepton® IR camera
9. Laser pointer with circular target-spot assist
10. USB-C and Thermocouple jack compartment
11. Spot thermal sensor
12. Work light (LED)
13. 2M pixel visible spectrum camera
14. Image capture trigger (also used to exit the menu system)
#NAS100014; r. AJ/68076/68076; en-US
4

FLIR TG165-X Specifications

General

Internal storage capacity	4 GB
Sensor type (thermal module)	-
Temperature measurement range	-25 - 300 °C
Image sensor size	2/3 \
Sensor resolution (thermal module)	80 x 60 pixels
Display type	LCD
Certification	CE/CB/EN61010/UL
Product color	Black
Built-in display	Yes
Display diagonal	2.4 \
Display resolution	320 x 240 pixels
Operating temperature (T-T)	-10 - 45 °C
Battery capacity	- mAh
Battery life (max)	5 h
Battery recharge time	6 h
Package depth	151 mm
Package width	284 mm
Package height	105 mm
Package weight	94 g

Weight and Dimensions

Depth	64 mm
Width	219 mm
Height	81 mm
Weight	40 g
