Floe MAXIS - Set Extension Tube Height and Connect Actuator

SHEET 6 OF 8

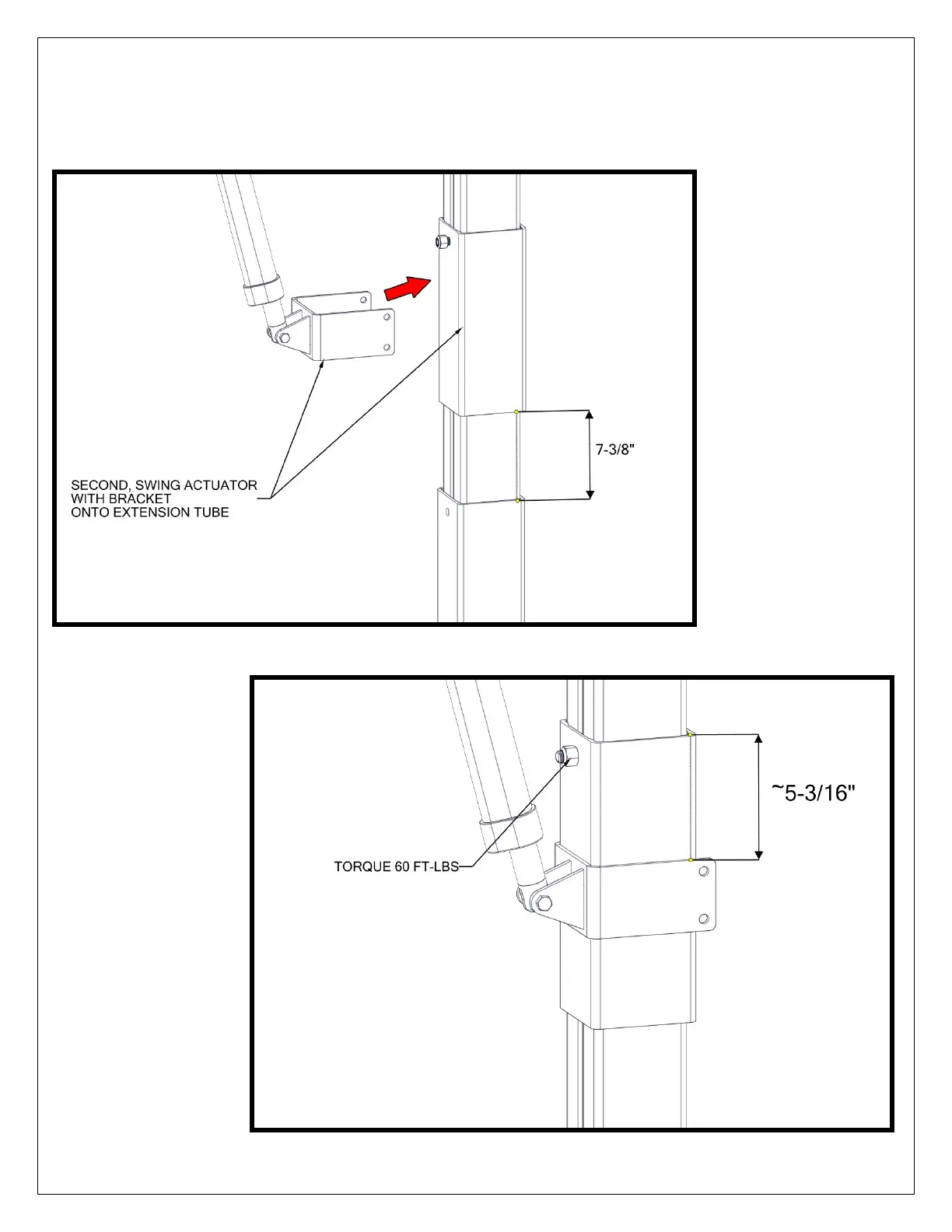

FIRST, SET HEIGHT OF EXTENSION TUBE 7-3/8” FROM TOP OF CORNER POST. THEN, SWING LOWER
ACTUATOR MOUNT AND ACTUATOR TOWARDS EXTENSION TUBE (FIGURE 2.3). EXTENSION TUBE
WILL BE APPROXIMATELY 5-3/16” FROM TOP OF TUBE TO TOP OF ACTUATOR MOUNT. TORQUE 60
FT-LBS (FIGURE 2.4).
FIGURE 2.3
FIGURE 2.4
