Floe VSD 8000 - STEP 4: Frame Assembly & Squaring; Frame Beam Attachment and Alignment

12
STEP 4


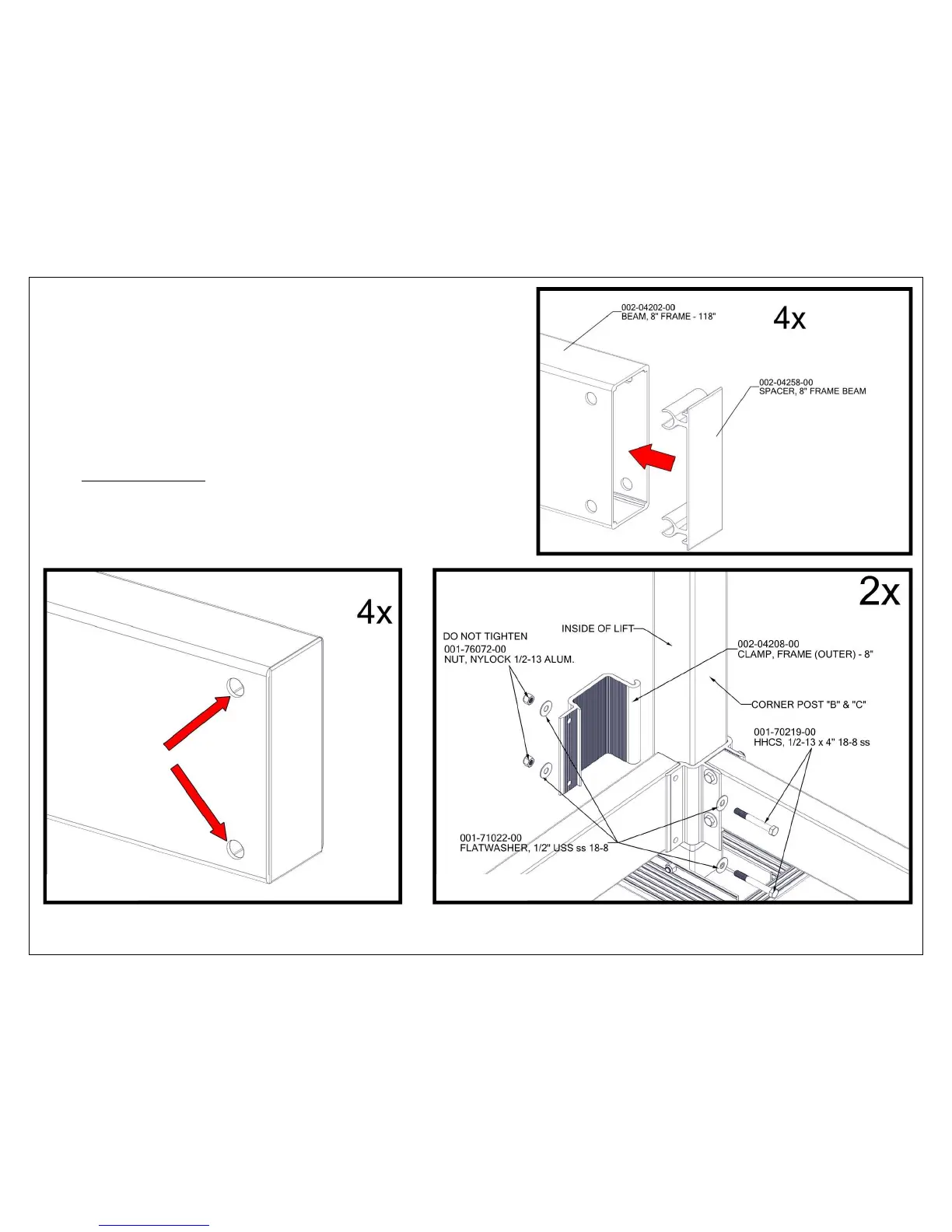

INSERT FRAME BEAM SPACERS INTO ENDS OF 118” FRAME BEAMS
AND ENSURE HOLES IN FRAME BEAM LINE UP WITH CLAMP.
(FIGURE 4.1 & 4.2).
 ATTACH A FRAME BEAM BETWEEN CORNER POSTS “B” AND “C”
USING OUTER FRAME CLAMPS USING (2) ½” x 4” BOLTS, (4) ½”
FLAT WASHERS, AND (2) ½” NYLOCK NUTS (FIGURE 4.3).
DO NOT TIGHTEN.
FIGURE
4.1
FIGURE
4.2
FIGURE
4.3
