Floe VSD 8000 - STEP 1: Initial Setup; Corner Post Preparation

5

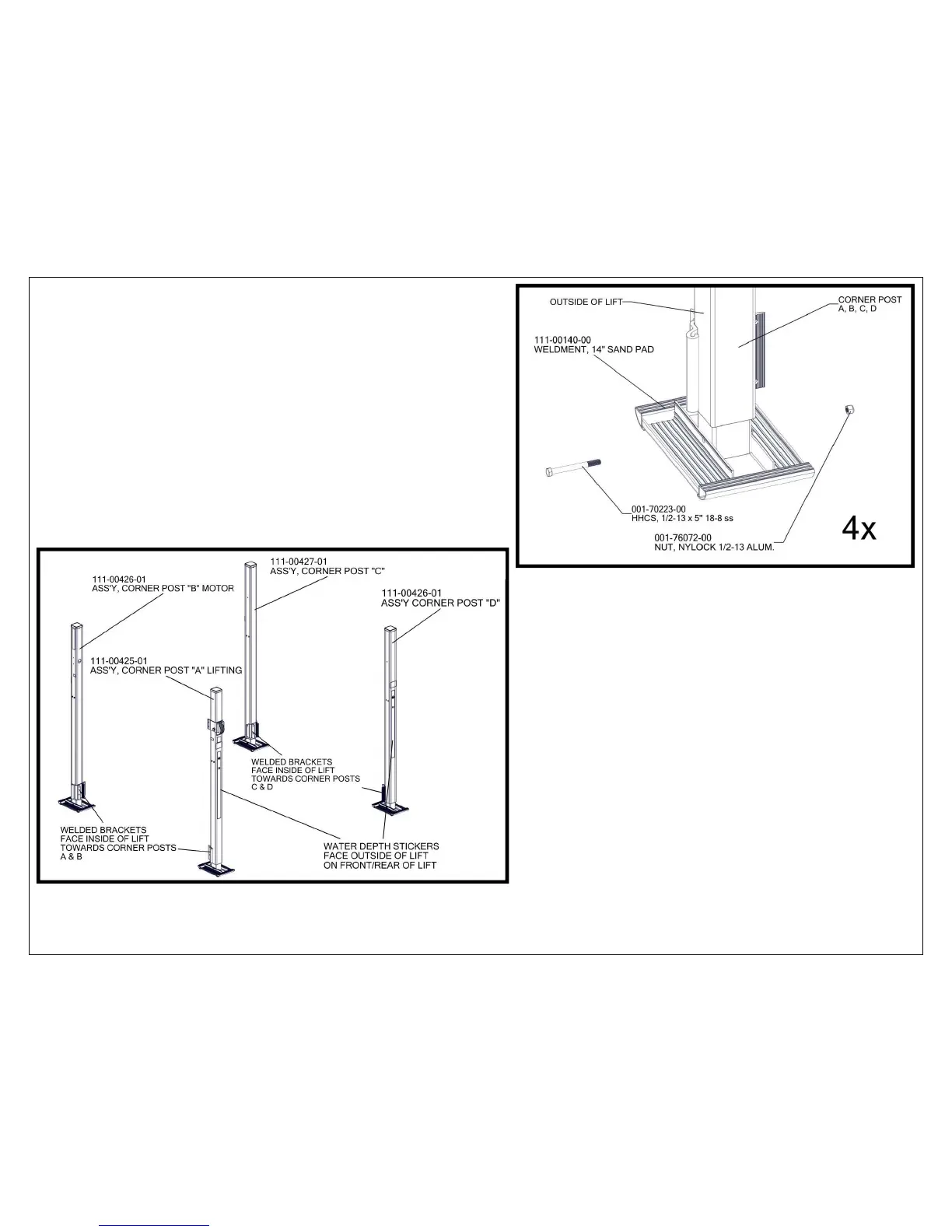

STEP 1

ATTACH SAND PADS TO ALL FOUR CORNER POST
ASSEMBLIES USING CORNER POST ASSEMBLIES
USING (4) ½” x 5” BOLTS AND (4) ½” NYLOCK NUTS.
TORQUE TO 25 FT-LBS (FIGURE 1.1).
 ARRANGE CORNER POSTS AS SHOWN IN FIGURE
1.2.
FIGURE 1
.1
FIGURE 1.2
