Floe VSD 8000 - STEP 2: Frame Beam Attachment; Frame Beam Spacer and Connection

6

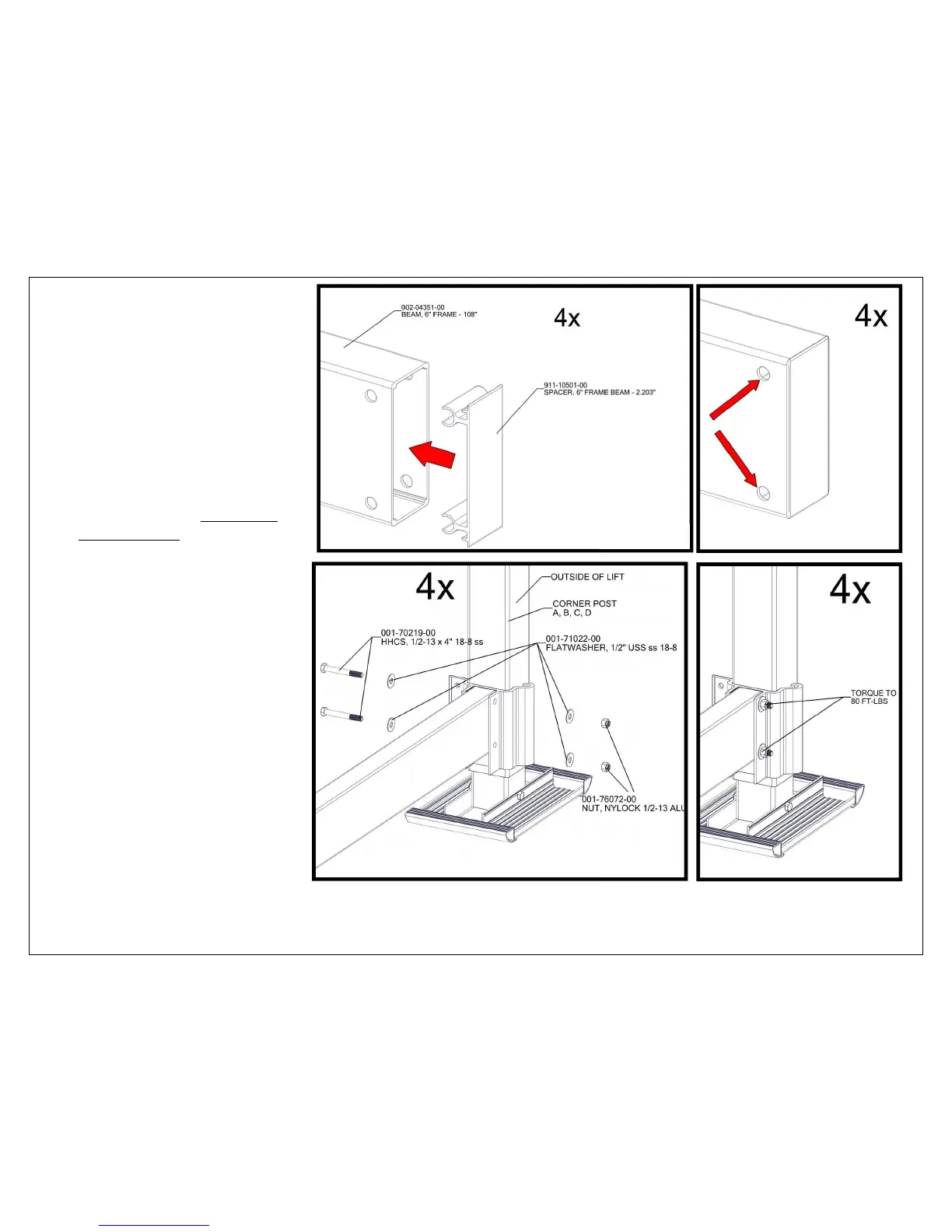

STEP 2

INSERT FRAME BEAM SPACERS INTO
ENDS OF 108” FRAME BEAMS AND
ENSURE HOLES IN FRAME BEAM LINE
UP WITH CLAMP (FIGURE 2.1 & 2.2).
 ATTACH FRAME BEAMS TO PRE-
ATTACHED LOWER CORNER POST
CLAMPS USING (2) ½ x 4” BOLTS, (4)
½” WASHERS, AND (2) ½” NYLOCK
NUTS (FIGURE 2.3). TORQUE TO 80
FT-LBS (FIGURE 2.4). REPEAT FOR
EACH CORNER.
FIGURE
2.1
FIGURE
2.2
FIGURE
2.3
FIGURE
2.4
