Floe VSD 8000 - Page 7

7

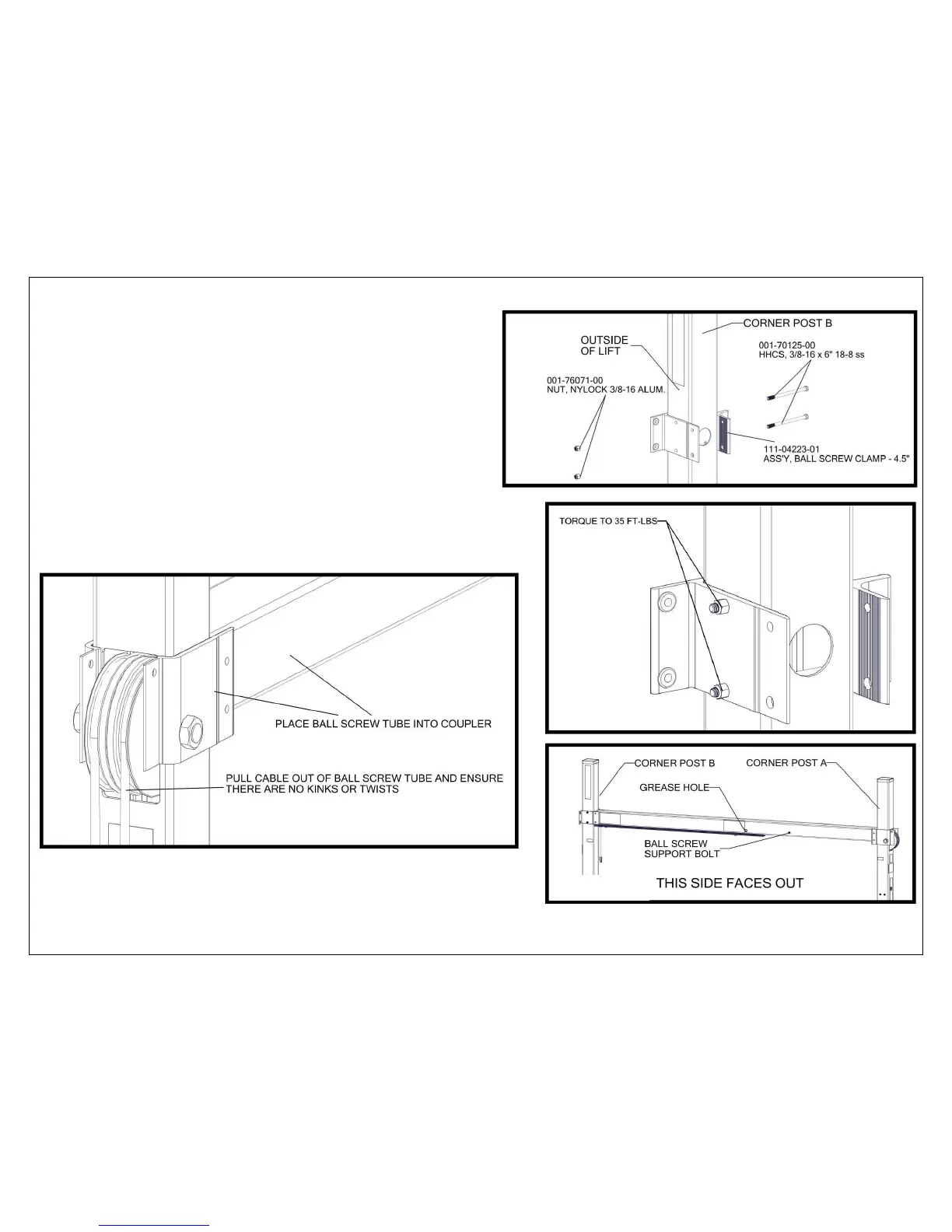

STEP 2

ATTACH BALL SCREW CLAMP TO CORNER POST USING
(2) 3/8 x 6” BOLTS, AND (2) NYLOCK NUTS (FIGURE 2.5).
TORQUE TO 35 FT-LBS (FIGURE 2.6).
 ORIENT BALL SCREW TUBE BETWEEN CORNER POSTS “A”
& “B” WITH GREASE HOLE AND SUPPORT BOLT VISIBLE
ON OUTSIDE OF LIFT (FIGURE 2.7).
 PULL CABLE OUT OF BALL SCREW, ALIGN ON PULLEY,
AND ENSURE THAT THERE ARE NO KINKS OR TWISTS.
PLACE BALL SCREW INTO COUPLER. (FIGURE 2.8).
FIGURE
2.5
FIGURE
2.7
FIGURE
2.8
FIGURE
2.6
