Floe VSD 8000 - Page 9

9
STEP 2
FIGURE
2.13
FIGURE
2.14


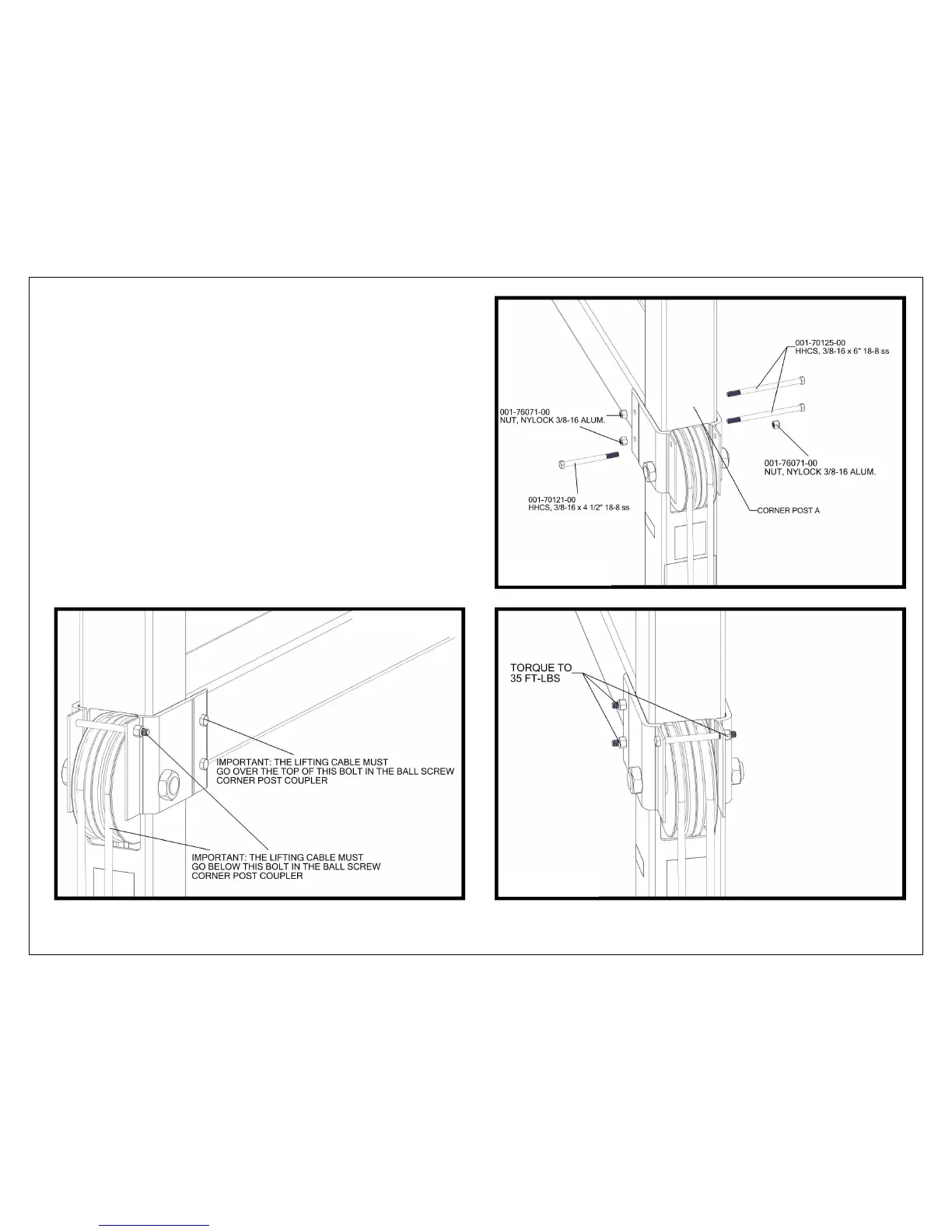

ATTACH CABLE END OF BALL SCREW TUBE TO COUPLER ON
CORNER POST “A” USING (2) 3/8” x 6” BOLTS, (1) 3/8” x 4 ½”
BOLT, AND (3) 3/8” NYLOCK NUTS (FIGURE 2.13).
 IMPORTANT: LIFTING CABLE MUST GO OVER UPPER 3/8” x 6”
BOLT AND UNDER 3/8” x 4 ½” BOLT IN BALL SCREW CORNER
POST COUPLER (FIGURE 2.14). TORQUE TO 35 FT-LBS
(FIGURE 2.15).
FIGURE
2.15
