Floe VSD - Step 1: Safely Disconnecting the VSD Drive Unit

4
STEP 1

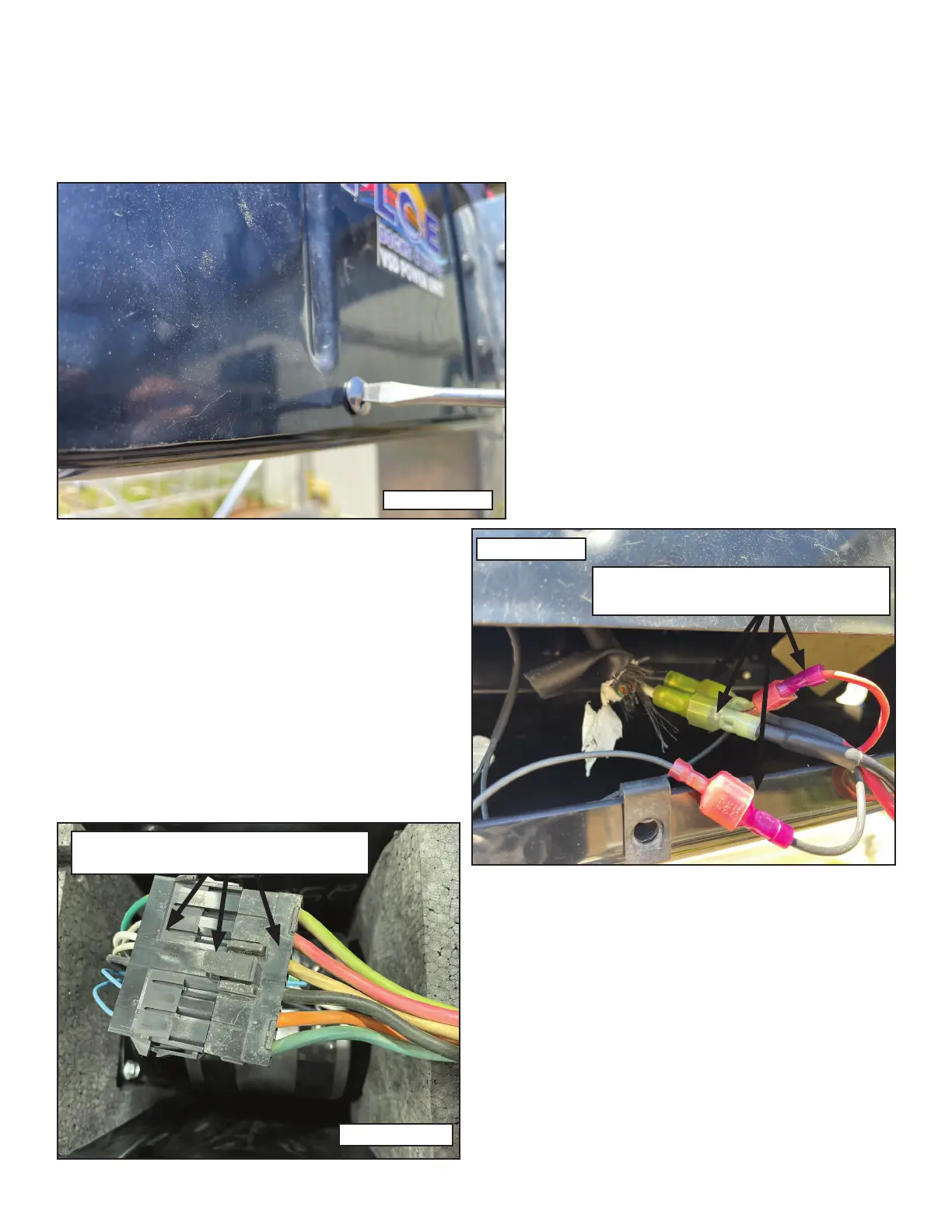

REMOVE (2) SCREWS FROM THE BOTTOM OF THE MOTOR COVER (FIGURE 1.1). PULL THE COVER
DOWN AND DISCONNECT THE MOTOR & BRAKE WIRES (FIGURE 1.2). FOR AC DRIVE UNITS, DIS-
CONNECT THE PLUG THAT IS COMING FROM THE ASC (FIGURE 1.2A).
FIGURE 1.1
FIGURE 1.2
FIGURE 1.2A
DISCONNECT MOTOR AND BRAKE
CONNECTORS
DISCONNECT PLUG FROM ASC
WHILE PULLING UP ON TAB
