- 22 -
3.2.3 Measure the pipe diameter
The correct diameter of the pipe or channel is necessary for accurate flow calculations.
1. Measure the inside pipe diameter (I.D.) at three locations (Figure 14). Be sure that the measurements are
accurate.
2. Calculate the average of the three measurements. Record this number for use during the software setup
for the site.

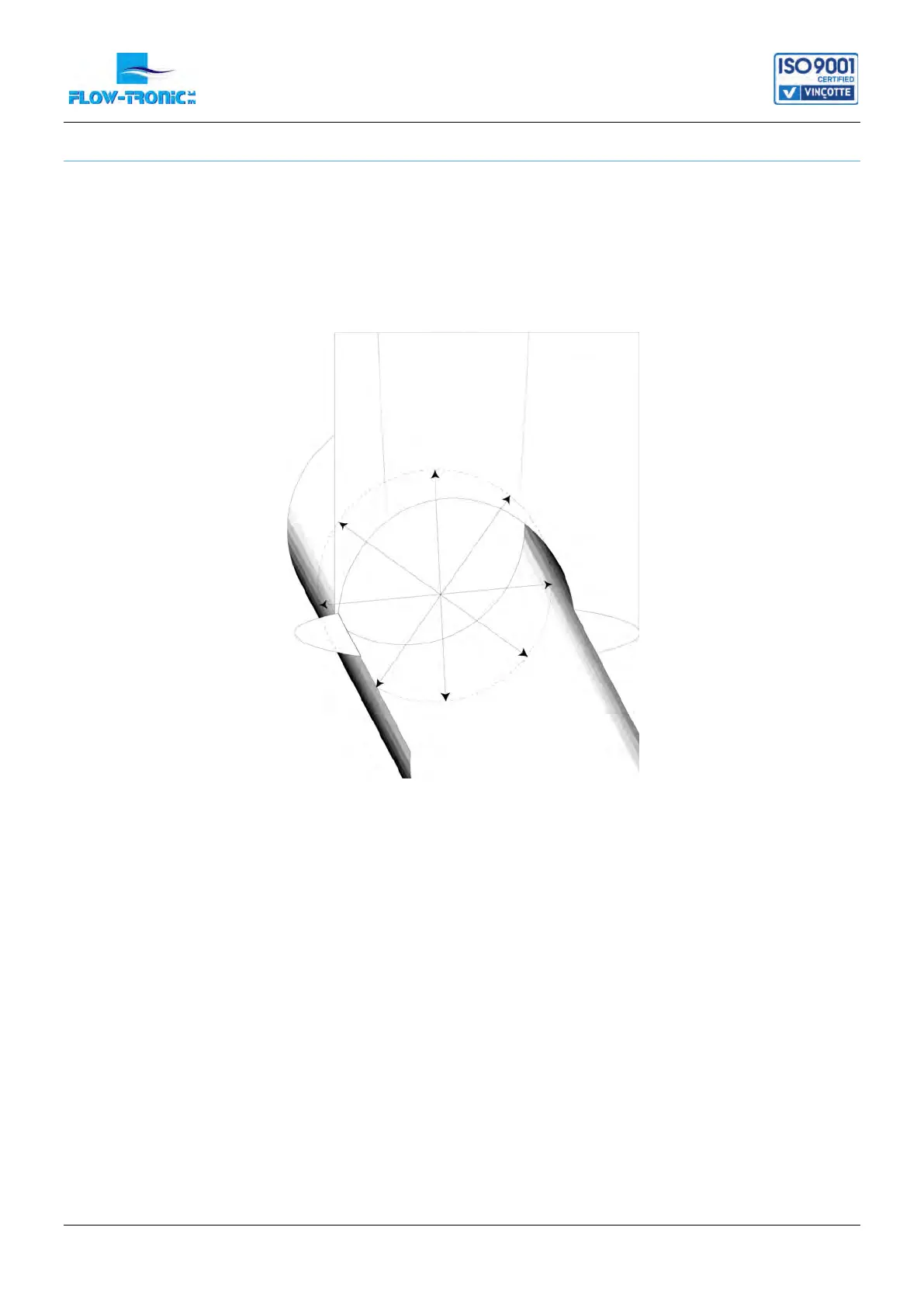

Figure 14
: Pipe diameter measurement
