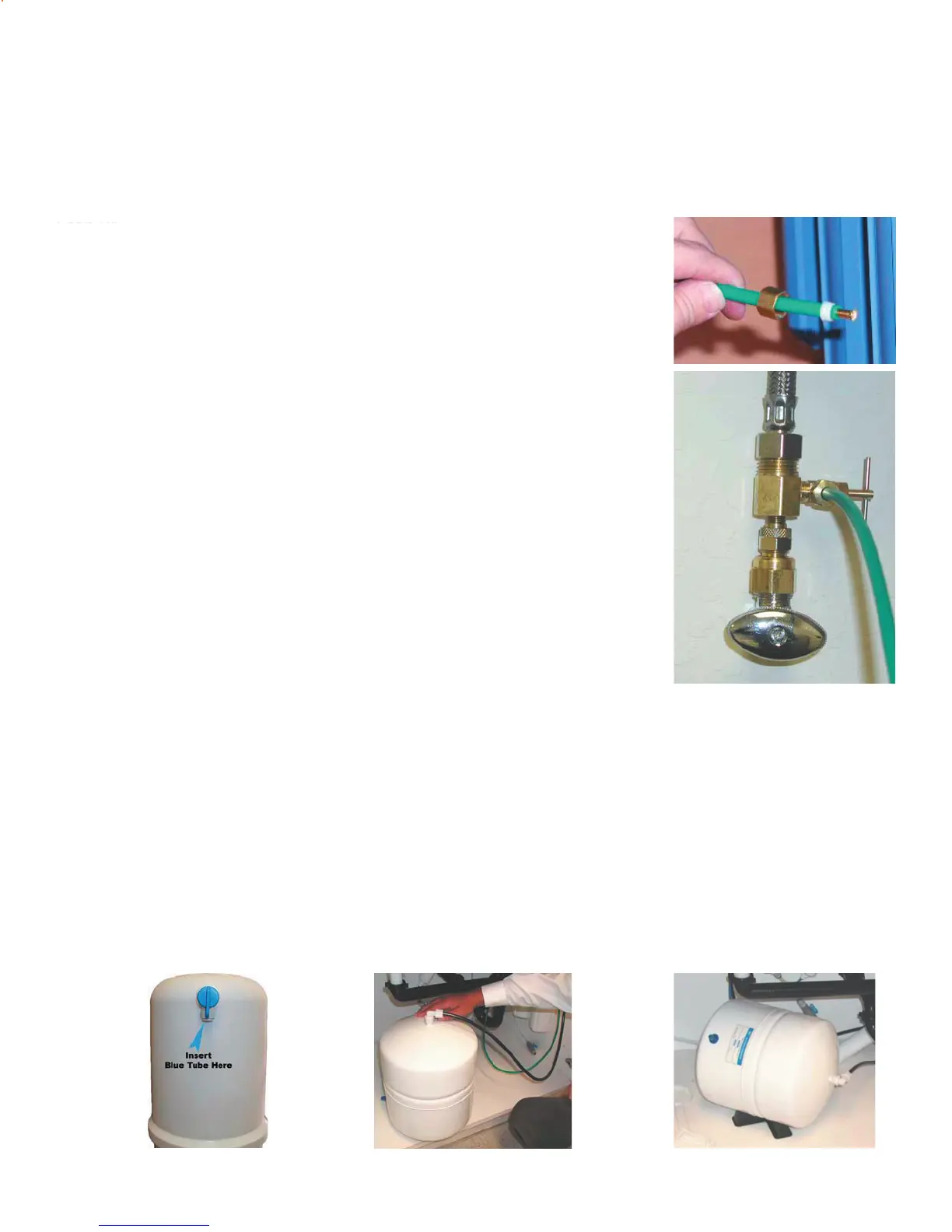

Green Tube Connection
Measure the green tube coming from the port marked TAP on the Reverse Osmosis
Module over to the adapta valve attached to the Angle Stop Valve. Leaving a gentle curve
in the tubing so the tube does not kink. Cut to desired length using a sharp knife.
Insert the green tube into the ¼” opening on adapta valve until
it stops. Slide nut and sleeve down and thread onto the male
pipe threads. Hand tighten brass nut, add one full turn with a
½” wrench for secure fi t.
½” wrench for secure fi t.
½” wrench for secure fi t.
Connect Blue Tube from TANK port on RO
Module to the Tank
Position tank in desired location. Stand it upright or lay it on its
side (using the black plastic stand FR05-M-MT only). Measure
the blue tube from the RO module port marked TANK over to
the tank and cut it to desired length.
Remove a brass nut, plastic delrin sleeve and brass insert from
the parts bag. Slide the nut on the tube fi rst, then the Delrin
sleeve (Small taper end of Delrin sleeve must point to the end of
tube). Then insert the brass Insert into the end of the tube.
Insert the blue 3/8” tube into the compression nut as far as it
will go. Tighten the compression nut securely with a wrench.
