FLOWMAX 170 - Dimensions

TECHNICAL CHARACTERISTCS
11
18.5
18.5
5.313.2
19.3
27.6
8.3
8.3
2.7
HWO G
CWI
HI
HO

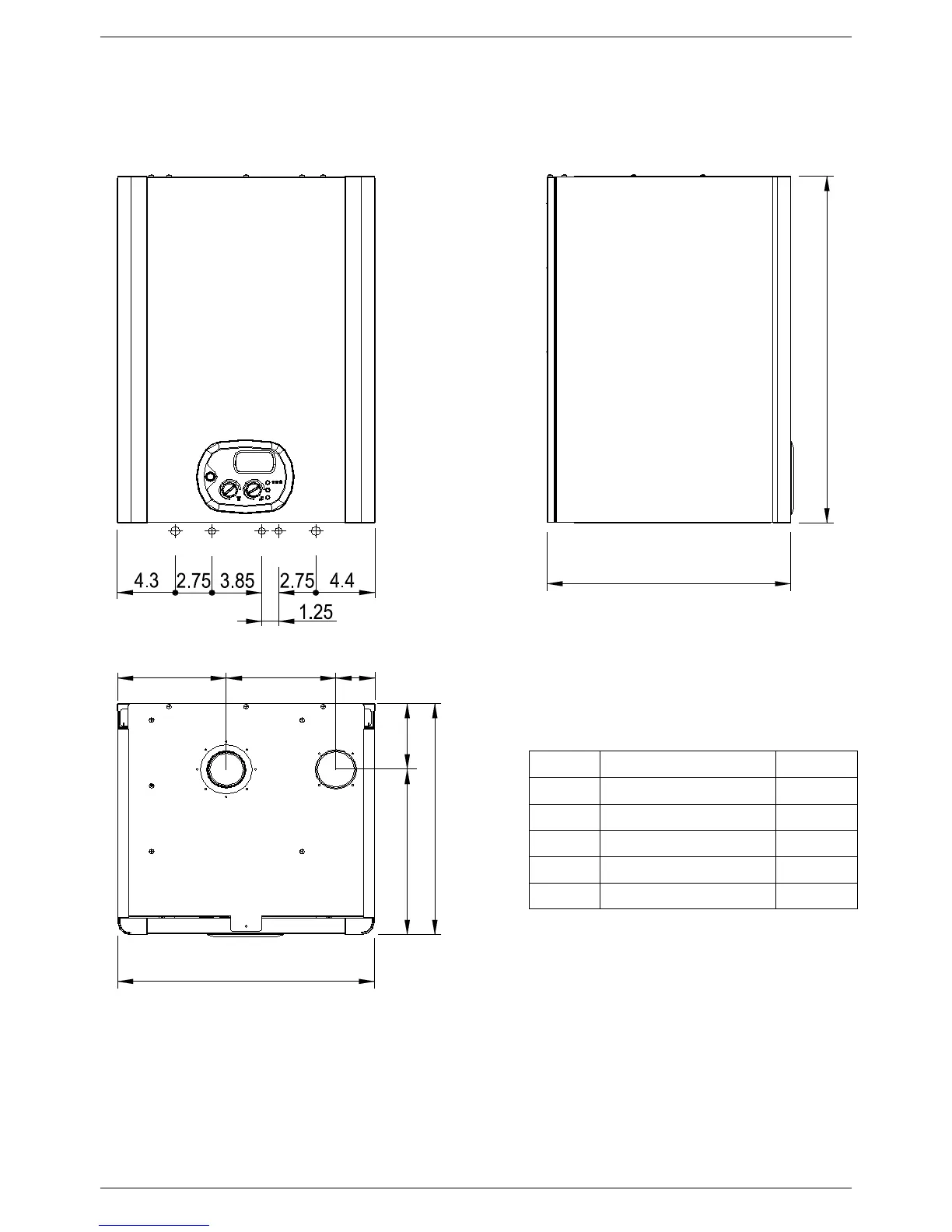

2.2 Dimensions
LEGEND
HI
HEATING INTAKE
Ø 3/4"
HO
HEATING OUTLET
Ø 3/4"
G
GAS
Ø 3/4"
CWI
COLD WATER INLET
Ø 1/2"
HWO
HOT WATER OUTLET
Ø 3/4"
SC
CONDENSATE DRAIN
Ø 0.98 in
