FlowAct Diaphragm Linear Actuator FCD VLENIMFACTA4 10/16
5
flowserve.com
3. You can alternatively place a sling around the actuator
case just above the yoke.
4. Upon removing the actuator from the packaging, we
recommend that you:
• Promptly touch up any damage to the paint that of-
fers corrosion protection.
• Contact your shipper immediately to report any
damage.
• Call your Flowserve representative if you experience
any problems.
Do not remove the protective covers from the
air supply connection of the actuator or from the
instrument ports of the actuator and accessories
until the actuator is ready for installation at the site.

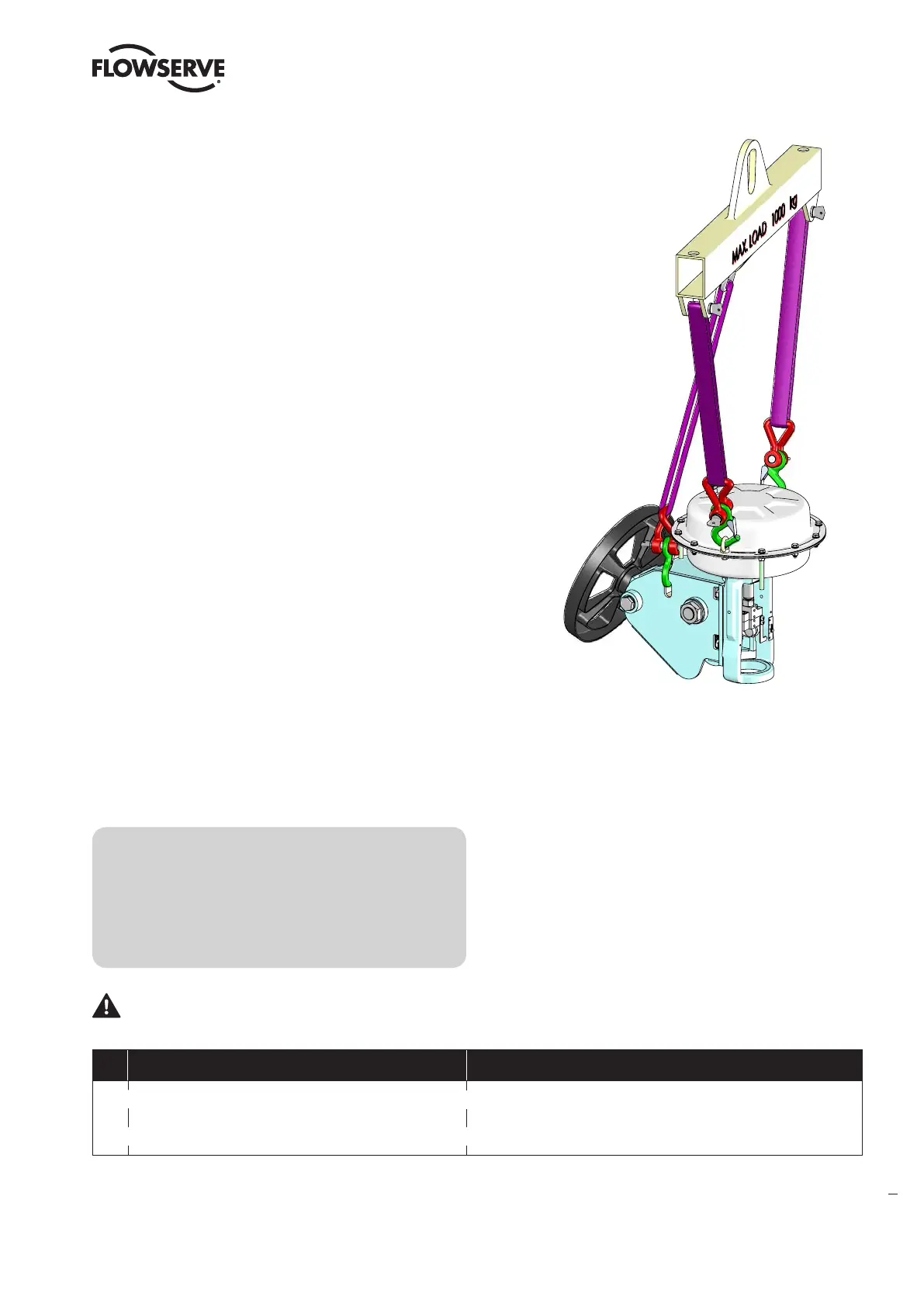

Figure 4: Triple-Leg Sling (Example)
Prior to installation of the actuator, we require, that you check the following conditions to reduce the risk of malfunction and
safety related incidents.
No. Check Possible malfunction or safety related incident
1 Confirm that the nominal / operational data on the
serial plate matches the operational data of the
facility.
An operational mismatch can cause considerable damage to
the actuator or may lead to a failure at the facility.
9 Installation
The actuator must be installed and commis-
sioned by qualified staff - personnel who are fa-
miliar with the installation, commissioning and
operation of this product and possess the rele-
vant qualifications in their field of activity.
Table 1: Basic safety massages for installing the actuator (continued on next page 6)
