MARK 3 USER INSTRUCTIONS ENGLISH 71569102 08-06
Page 64 of 68 flowserve.com

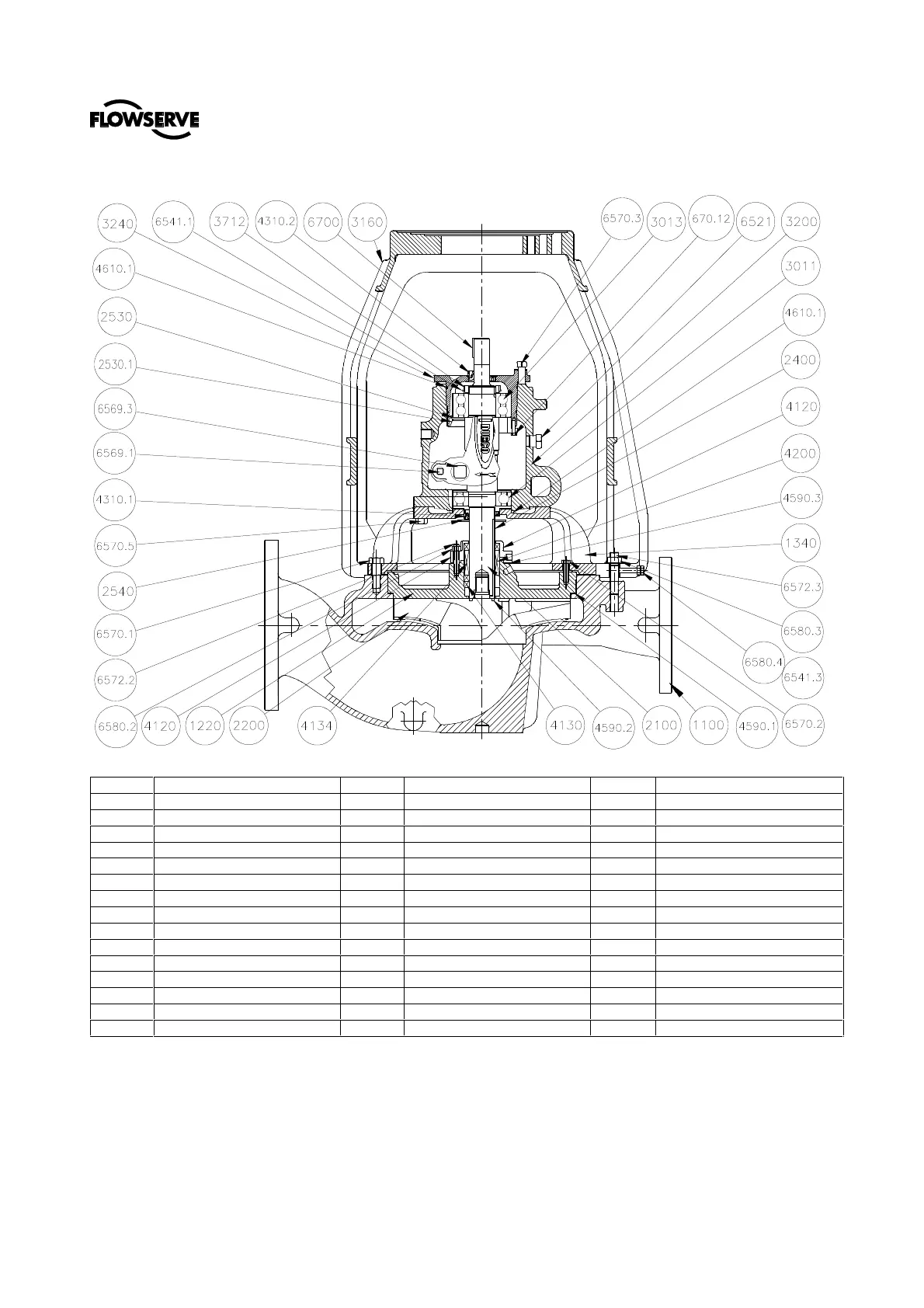

8.8 Mark 3 In-Line pump, Group 2
Item Description
3712 Bearing locknut 6569.3 Plug – sight gage
1100 Casing 4120 Gland 6570.1 Screw - casing
1220 Cover 4130 Packing - optional 6570.2 Screw - cover/adapter
1340 Adapter - bearing housing 4134 Seal cage – packing optional, 6570.3 Screw - bearing carrier set
2100 Shaft 4200 Mechanical seal 6570.5 Screw - bearing housing
2200 Impeller 4310.1 Oil seal inboard 6570.12 Screw - clamp
2400 Sleeve, optional 4310.2 Oil seal outboard 6570.15* Screw – pump stand
2530.1 Retaining ring - bearing 4590.1 Gasket - cover 6572.2 Stud - gland
2530.2 Retaining ring - clamp type 4590.2 Gasket - impeller 6572.3 Stud – pedestal casing
2540 Deflector - inboard optional 4590.3 Gasket - gland 6575 Jackscrew
3011 Ball bearing - inboard 4610.1 O-ring - adapter 6580.2 Nut - gland
3013 Ball bearing - outboard 4610.2 O-ring - bearing carrier 6580.3 Nut – pedestal casing
3160 Motor pedestal 6521 Plug - bearing housing vent 6580.4 Nut – jackscrew jam nut
3170* Pump stand 6541.1 Lockwasher - bearing 6700 Key - shaft/coupling
3200 Bearing housing 6541.3 Washer
3240 Bearing carrier 6569.1 Plug
* Not shown
