Flowserve Valtek Mark One User Manual

1-10
Flowserve Corporation, Valtek Control Products, Tel. USA 801 489 8611
E0169
Packing Box Nut
(Item No. 117)
Gland Flange
(Item No. 80)
Upper Guide
(Item No. 87)
Stem Guide Liner
(Item No. 86)
Anti-Extrusion Spacer
(Item No. 93)
Upper Packing
(Item No. 88)
Packing Spacer
(Item No. 94-99)
Lower Packing
(Item No. 88)
Anti-Extrusion Spacer
(Item No. 93)
Stem Guide Liner
(Item No. 82)
Lower Guide
(Item No. 83)
Bonnet Flange Nut
(Item No. 114)
Bonnet Flange Stud
(Item No. 108)
Bonnet Flange
(Item No. 70)

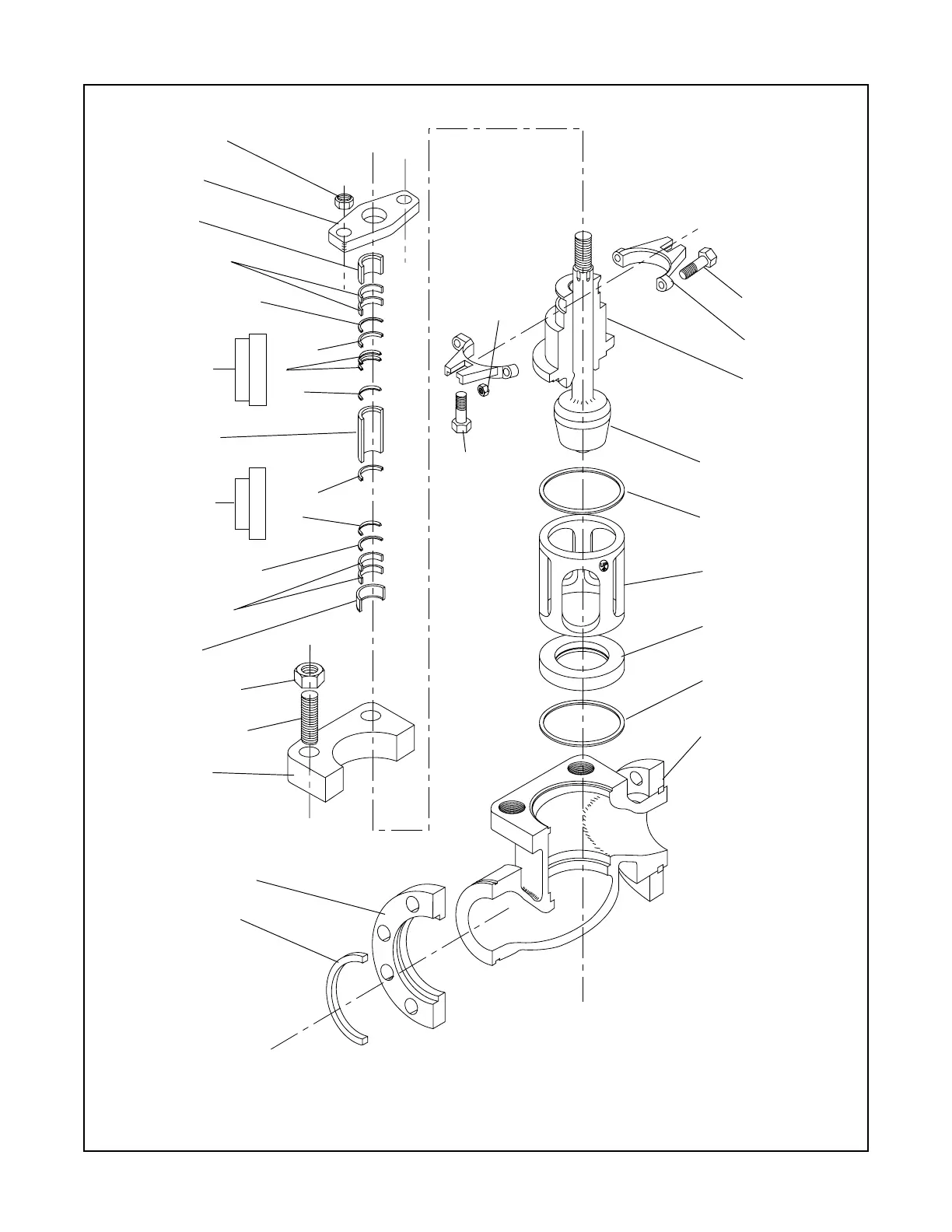

Figure 4: Exploded View – Body Assembly
NOTE: Item numbers correspond directly to the valve's bill of material. Refer to it for specific part numbers.
End Flange
(Item No. 10)
Half Ring
(Item No. 11)
Clamp Bolt
(Item No. 107)
Yoke Clamp
(Item No. 76)
Bonnet
(Item No. 40)
Plug
(Item No. 50)
Bonnet Gasket
(Item No. 58)
Seat Retainer
(Item No. 30)
Seat Ring
(Item No. 83)
Seat Ring Gasket
(Item No. 55)
Body
(Item No. 1)
Clamp Nut
(Item No. 118)
Packing Box
Bolt
(Item No. 109)
Female Ring
V-Ring
Male Ring
Female Ring
Male Ring
