Fluance RT80/RT81 User Manual
23

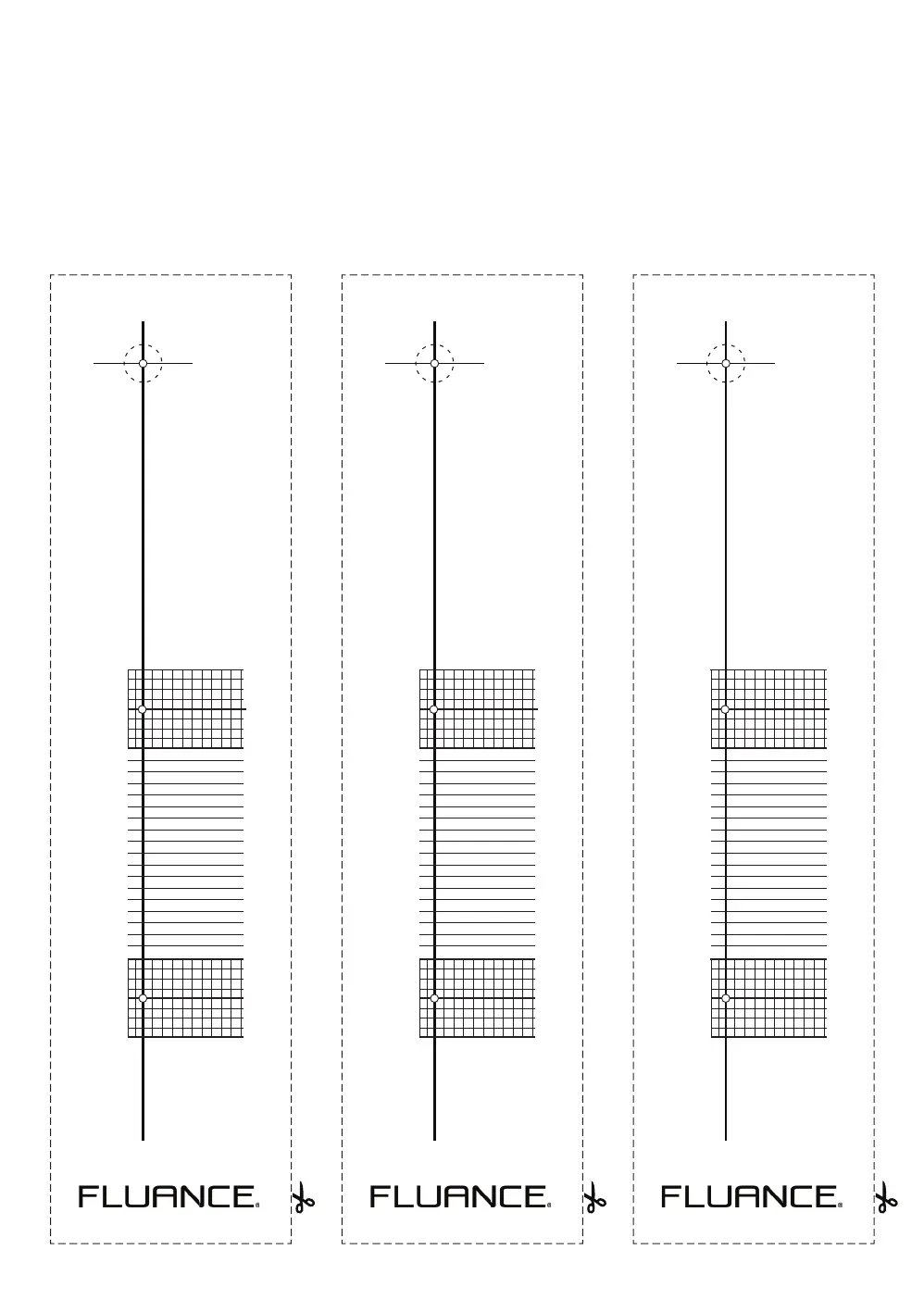

Cartridge Alignment Protractor Cutout
Note: Only 1 protractor is required for the cartridge alignment process. 3 cutouts have been provided for
convenience.
S
A
66mm (2.6”)
B
120.89mm (4.76”)
CC DD
S
A
66mm (2.6”)
B
120.89mm (4.76”)
CC DD
S
A
66mm (2.6”)
B
120.89mm (4.76”)
CC DD
