Fluidmaster 400A User Manual

8 9
Refill Tube
Refill
Clip
Overflow
Pipe

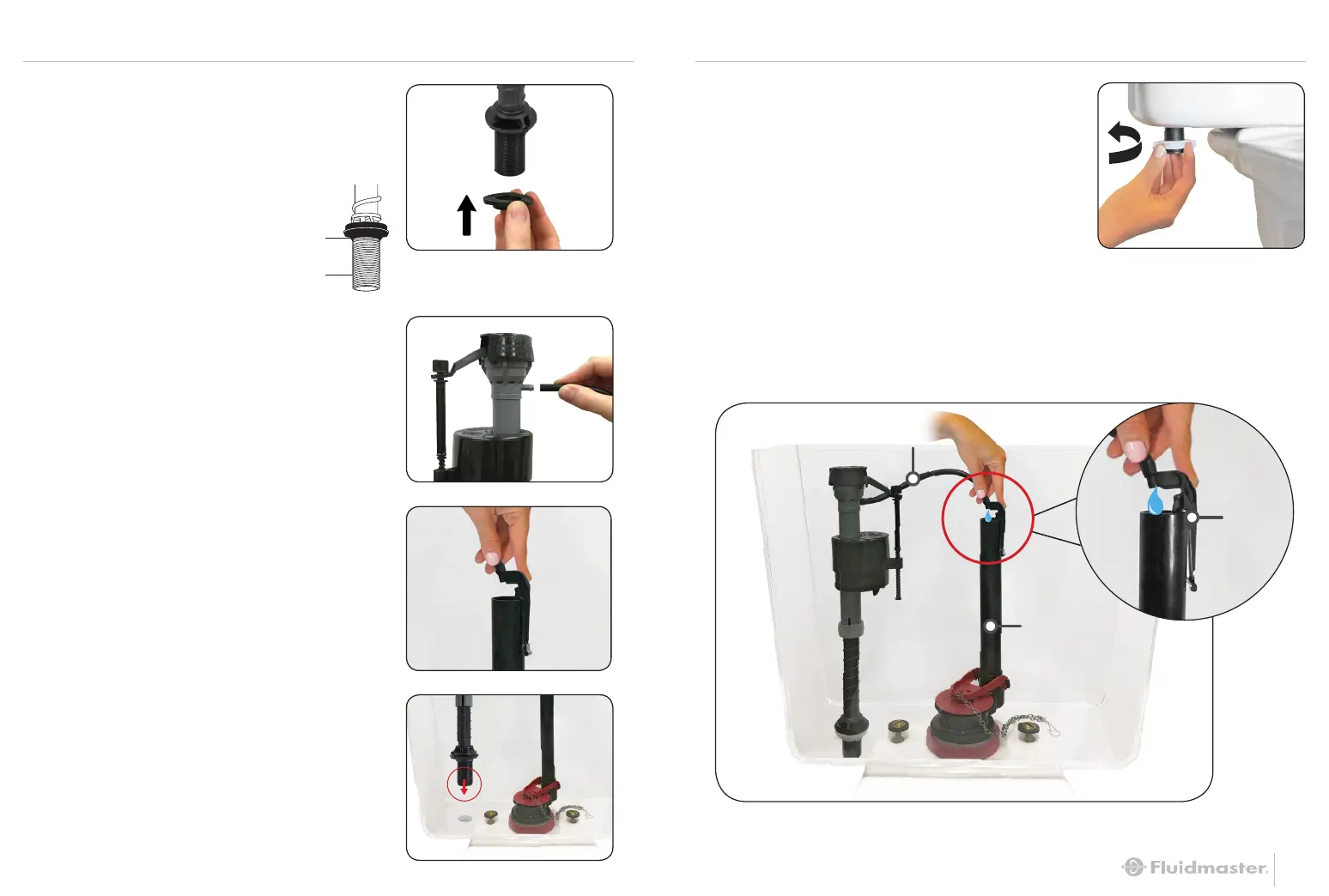

STEP 4: INSTALL NEW FILL VALVE
F: ATTACH REFILL TUBE TO REFILL CLIP
Note: If refill tube is too long, cut tube.
E: INSTALL LOCKNUT
Screw locknut to the
right (counterclockwise)
onto fill valve shank
(below tank)
RIGHT
A: INSTALL SHANK WASHER
Pull up to top of shank.
* Place shank washer
onto threaded shank of
fill valve. WIDE SIDE UP.
B: PUSH REFILL TUBE ONTO
REFILL PORT FIRST
C: ATTACH REFILL CLIP
TO OVERFLOW PIPE
D: INSERT FILL VALVE
Position refill tube to face
overflow pipe.
Shank Washer
Threaded Shank

Fluidmaster 400A Specifications

General

Model	400A
Type	Toilet Fill Valve
Material	Plastic
Adjustable Height	Yes
Universal Fit	Yes
Warranty	5 year
