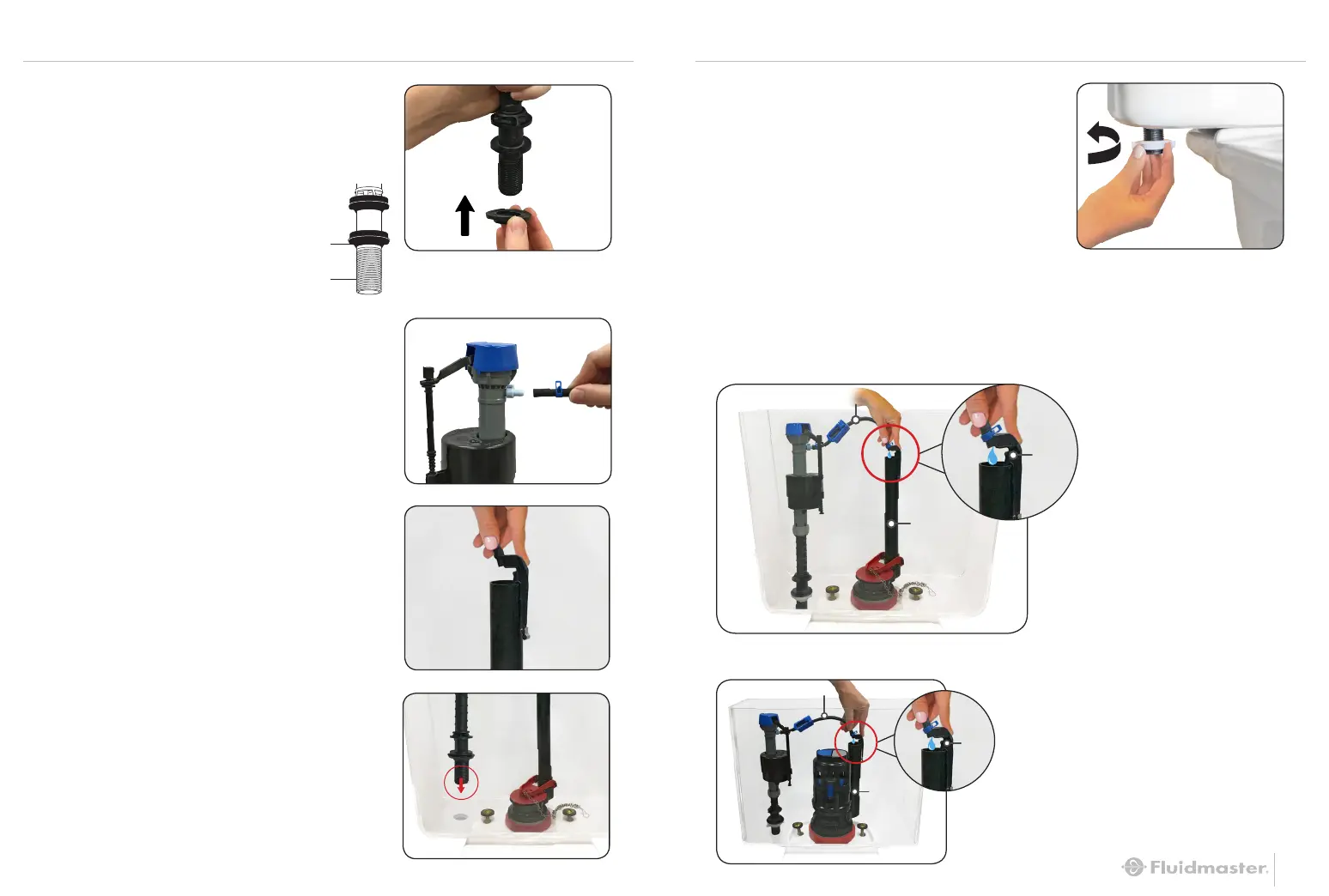

STEP 4: INSTALL NEW FILL VALVE
A: INSTALL SHANK WASHER
Pull up to top of shank.
* Place shank washer
onto threaded shank of
fill valve. WIDE SIDE UP.
C: ATTACH REFILL CLIP
TO OVERFLOW PIPE
E: INSTALL LOCKNUT
Screw locknut to the
right (counterclockwise)
onto fill valve shank
(below tank).
RIGHT
B: PUSH REFILL TUBE ONTO
REFILL PORT FIRST
Squeeze tube clamp arms and
move it towards refill port.
D: INSERT FILL VALVE
Position refill tube to face
overflow pipe.
F: ATTACH REFILL TUBE TO REFILL CLIP
Squeeze tube clamp arms and move it towards refill clip.
Note: If refill tube is too long, cut tube.
Standard Flush Valves
Canister Flush Valves
Refill
Clip
Overflow
Pipe
Refill Tube
Refill
Clip
Refill Tube
Overflow
Pipe
Shank Washer
Threaded Shank
