Fluke Biomedical IMPULSE 6000D - Page 27

Defibrillator/Transcutaneous Pacemaker Analyzer
Analyzing Pacemakers (7000DP only)
13
OFF
DEFIB
Defibrillator/Pacer
7000DP Only
50 Ω
Only
PACER
+
+
Caution
To avoid damage to the
Analyzer or defibrillator, do
not apply defibrillator pulses
to the pacer inputs.
50 - 1500 Ω
fak10.eps

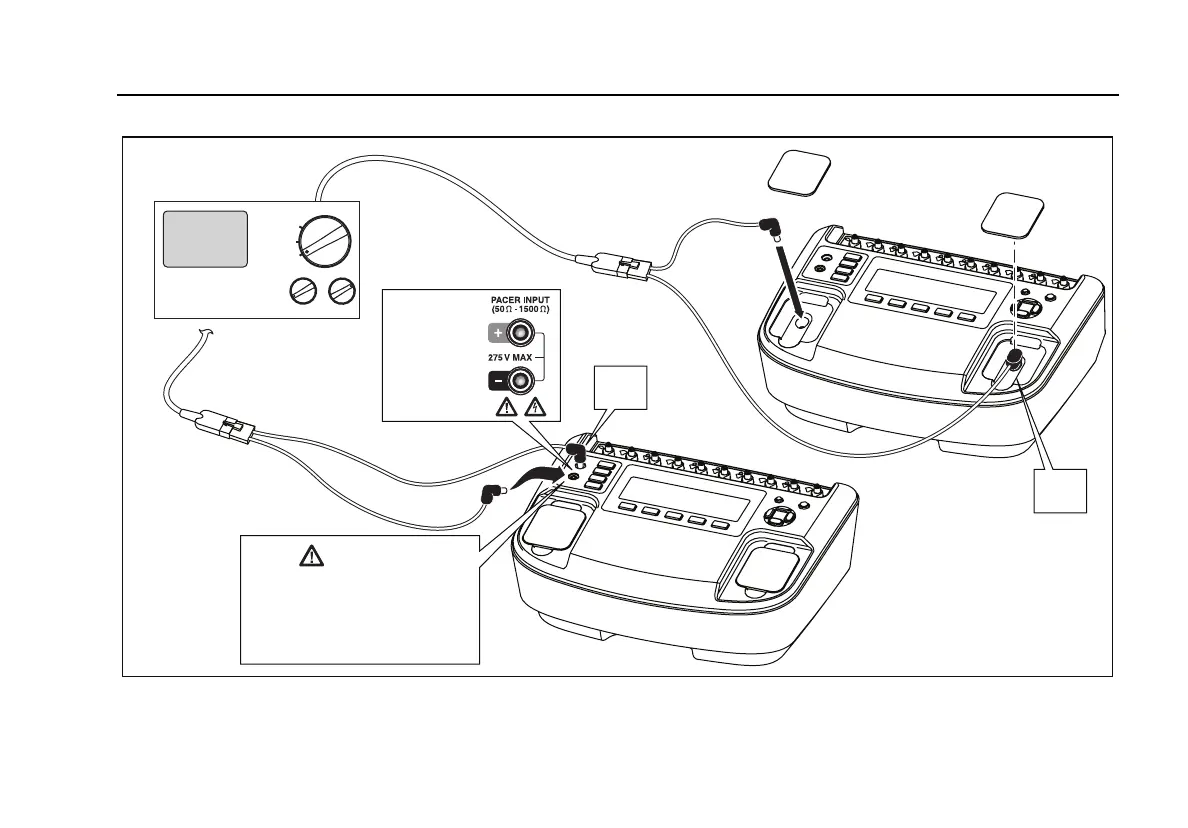

Figure 11. Connecting a Pacemaker to the Analyzer
