Impulse 6000D, 7000DP
Users Manual
8

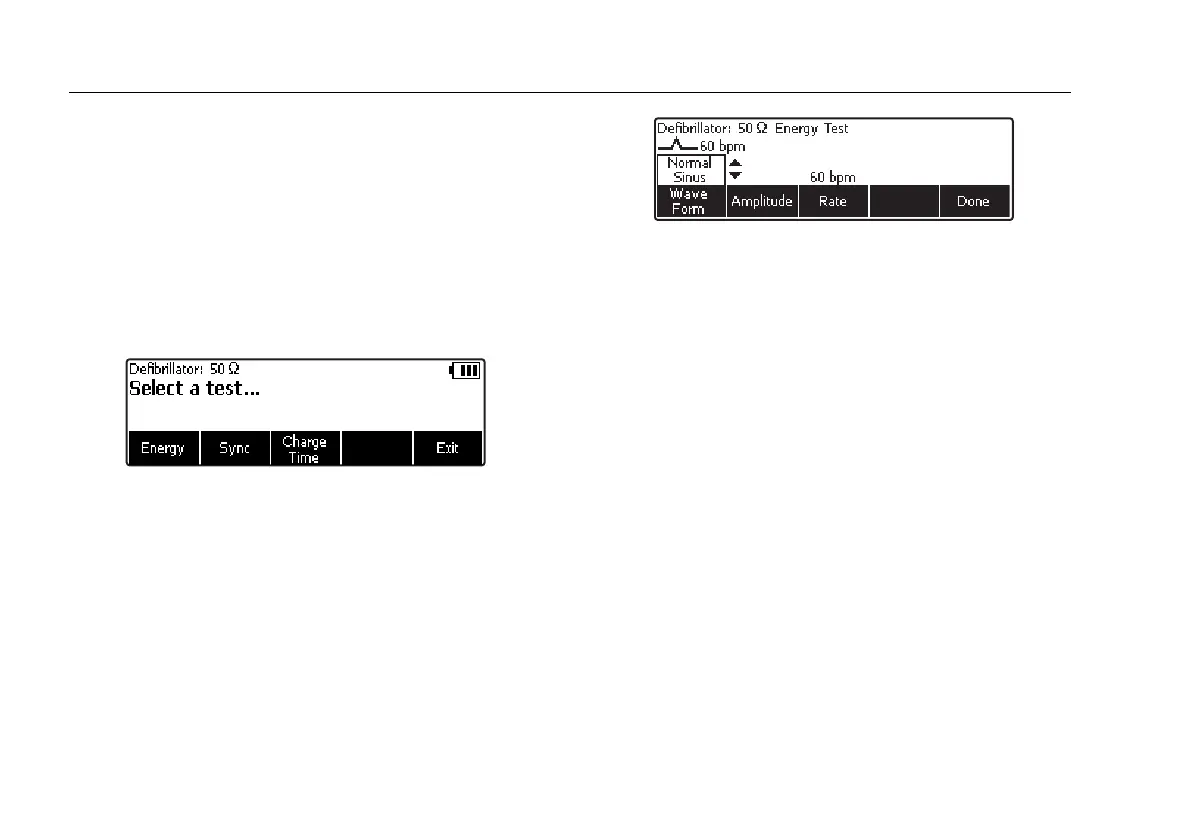

Accessing the Analyzer Tests
The Analyzer uses a series of menus to access various
Analyzer functions and setup variables. As shown in
Figure 4, the Analyzer indicates three different defibrillator
tests (Energy, Sync, and Charge Time) along the bottom
of the display. An Exit selection is also indicated as a way
of backing out of the defibrillator tests. Pressing a softkey
(F1 through F5) under a specific test will cause that test to
be selected.
fak02.eps
Figure 4. Defibrillator Menu
Some menu selections reveal a list of selectable items by
displaying K to the right of the presently selected item.
See Figure 5. To change the selection, press either G or
H to scroll through the possible selections. Once the
desired selection appears, press the function softkey and
K disappears from the display.
fak03.eps
Figure 5. Cursor Navigation Example
Analyzing Defibrillators
There are three main defibrillator test functions to evaluate
a defibrillator’s performance: Energy, Synchronization, and
Charge Time. To set the Analyzer for defibrillator testing,
press M.
The Analyzer’s defibrillator input connectors are designed
to be used with test leads or adapter plates when testing
defibrillators using external paddles.
Connect the defibrillator to the Analyzer as shown in
Figure 6.
Testing Energy Levels
Press the softkey labeled Energy to enter the energy test
procedure. As shown in Figure 7, the Analyzer has a
waveform selection already set. Either the waveform
characteristic is off or it was the last one setup from a
previous defibrillator test.
