Fluke 115C - Understanding the Meter Display; Display Elements and Indicators

115C and 117C
Users Manual
4
Display
VoltAlert
11
7
17
18
12
13
14
9
6
5
4
3
2
1
16
15
8
10

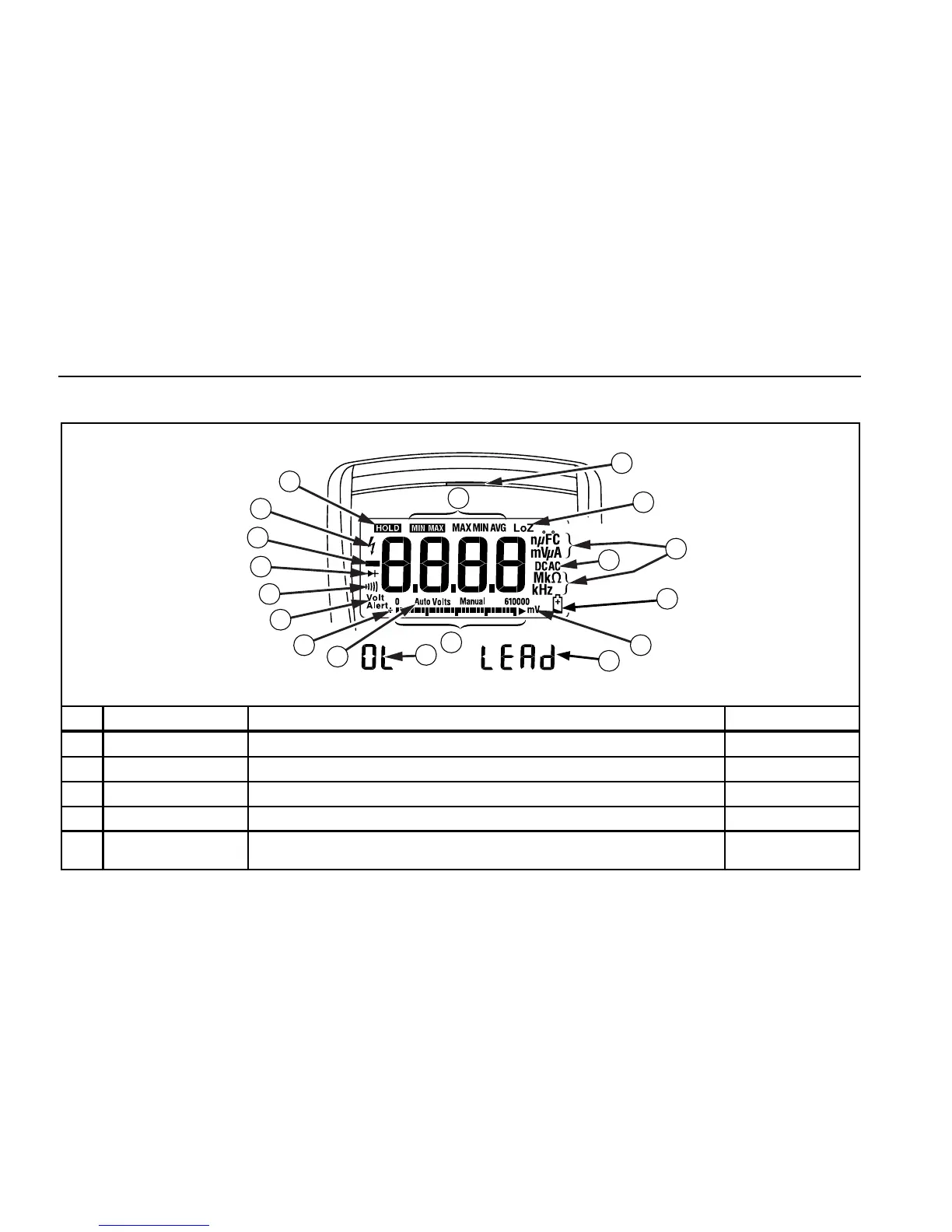

edy02f.eps
No. Symbol Meaning Model
A w The Meter is in the VoltAlert™ non-contact voltage detect mode.
117C
B s The Meter function is set to Continuity.
115C & 117C
C R The Meter function is set to Diode Test
115C & 117C
D O Input is a negative value.
115C & 117C
E
Y
X Unsafe voltage. Measured input voltage ≥30 V, or voltage
overload condition (OL).
115C & 117C
