Fluke 1623 User Manual

Earth/Ground Tester
Safety Regulations
3
ulps
V 05 xam
1
1P
SE
2P
S
FLUKE
11
2
3
4
5
6
7
8
9
10
FLUKE 1623
edv001.eps

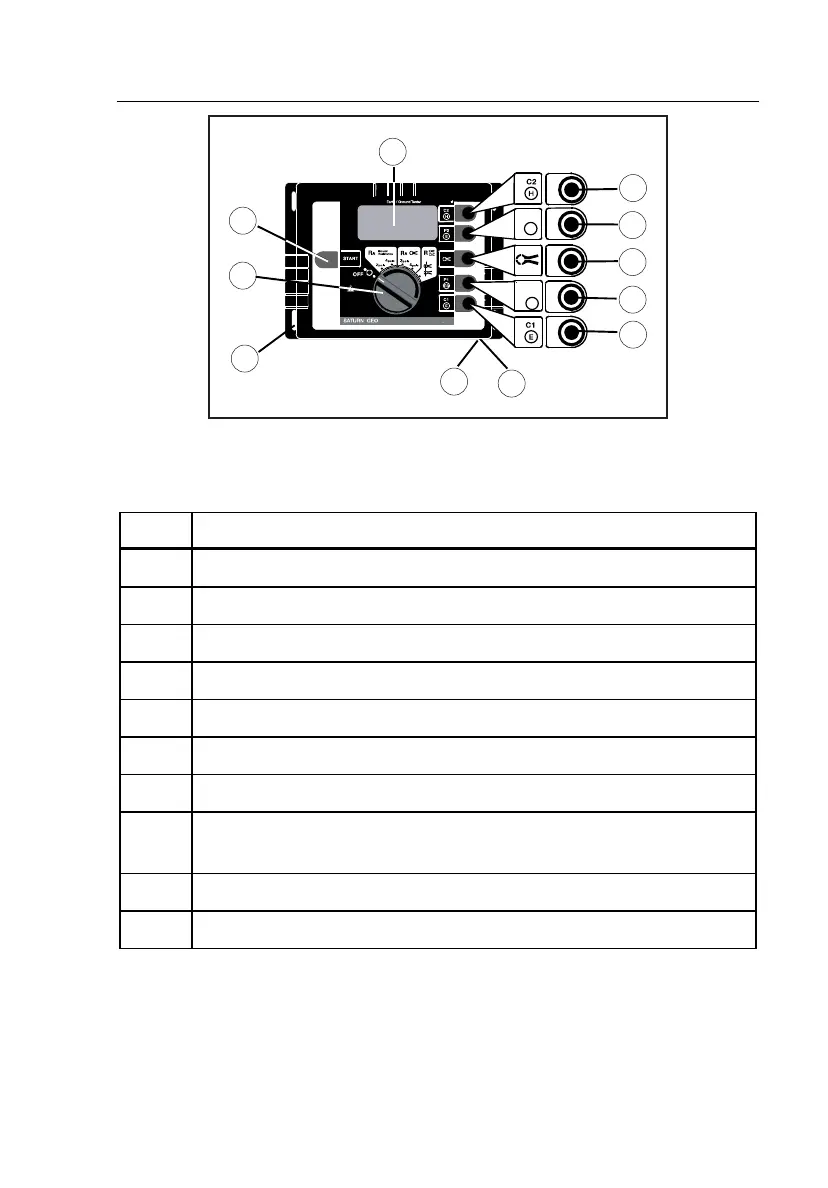

Figure 1. Features and Functions
Table 1. Features and Functions
Item Description
A Rotary switch for selection of measurement functions and ON/OFF.
B START button for starting the selected measurement function.
C Liquid crystal display (LCD).
D Connection “H” for auxiliary earth 4 mm ∅
E Connection “S” for probe 4 mm ∅
F Connection A for sensing current test clamp
G Connection “ES” for earth electrode probe 4 mm ∅
H
Connection “E” for the earth/ground electrode to be measured
4 mm ∅
I Battery compartment for 6 alcaline batteries (type AA, LR6) or NiCd
J Batteries (bottom side of instrument)
Shop for Fluke products online at:
1.877.766.5412
www.MyFlukeStore.com

Fluke 1623 Specifications

General

2-Pole Measurement	Yes
3-Pole Measurement	Yes
4-Pole Measurement	Yes
Data Transfer	USB
Measurement Frequency	128 Hz
Resistance Measurement Range	0.01 Ω to 20 kΩ
Safety Compliance	IEC 61010-1
Display	Digital
Power Supply	6 x AA alkaline batteries
Operating Temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
