Fluke 1770 Series Instructions

5
Instructions
Note
The adapter is compatible only with clamps. Flexis,
such as the i430-Flexi-TF-II, are not supported.
To u se:

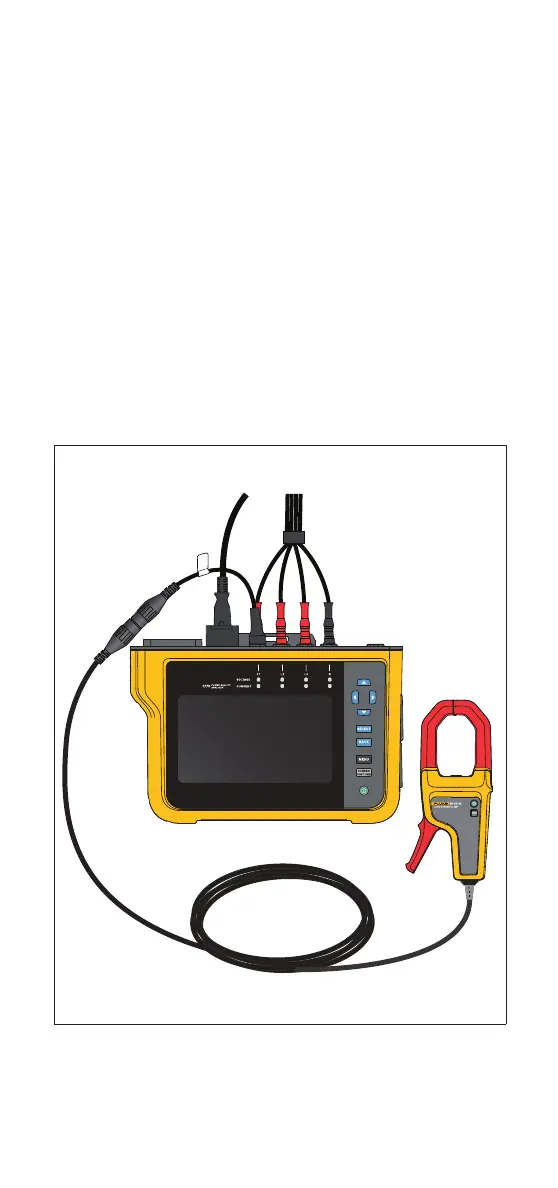

1. Connect the adapter to the clamp and attach the adapter
to the 17xx Analyzer.
2. Apply the required scaling factor and range that is
specific for the attached clamp.
Note
Fluke strongly recommends to use the low range
with the 2.8 V adapter. The higher range may distort
the signal.
F
L
U
K
E 1
7
XX
C
l
a
mp
A
d
a
p
t
er

Fluke 1770 Series Specifications

General

Brand	Fluke
Model	1770 Series
Category	Measuring Instruments
Language	English
