Fluke 180LR - Product Familiarization

Line Laser Levels
Product Familiarization
3
Product Familiarization

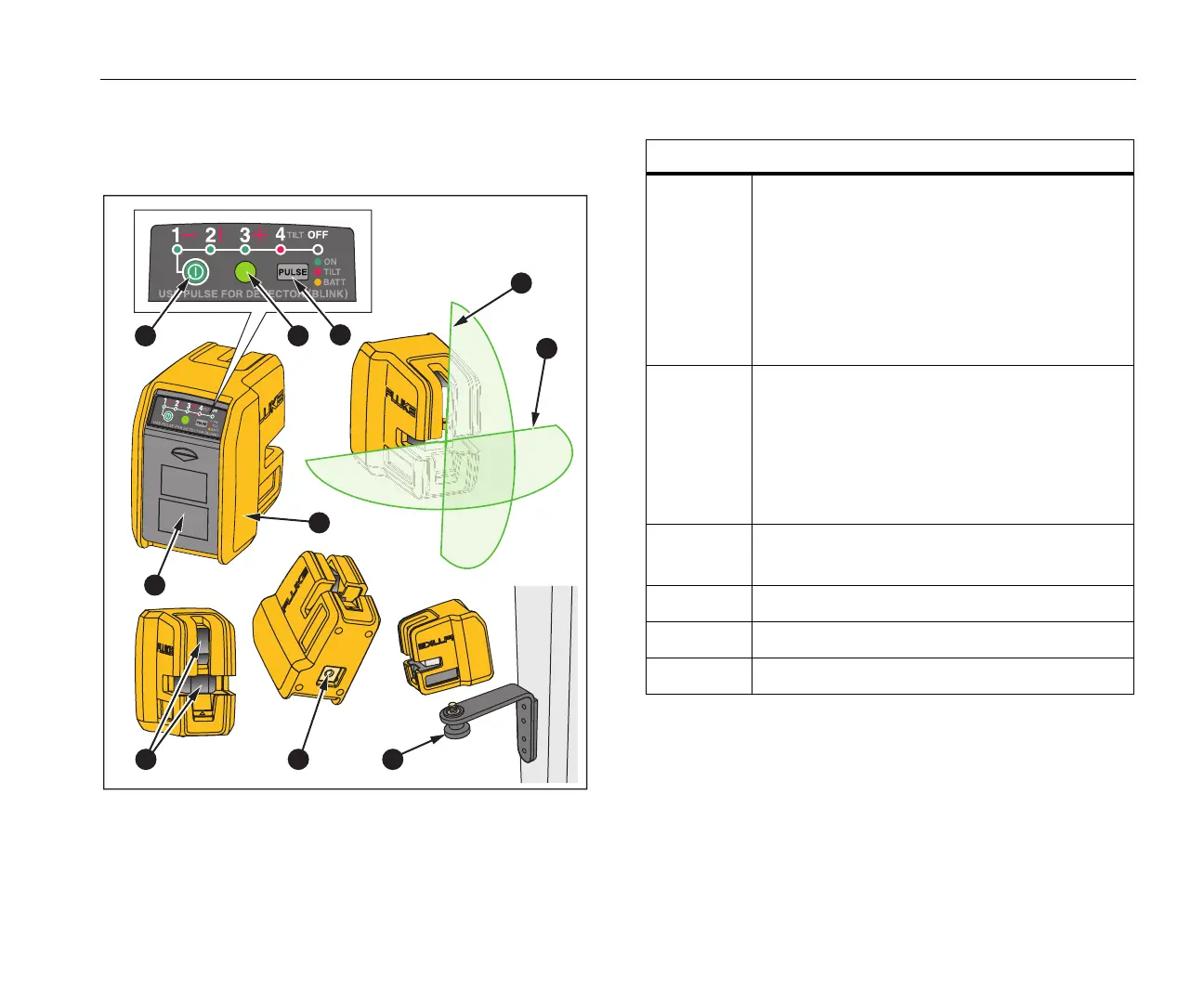

Figure 1 and Table 2 show the features of the Product.
10
7
6
4
5
3
2
1
9
8
Figure 1. Product Features
Table 2. Product Features
Item Description

Power button
Push to scroll through the laser options.
1X - Horizontal laser on
2X - Vertical laser on
3X - Both lasers on, self-level
4X - Both lasers on, manual level
5X - Off

Indicator LED
Solid Green - On and level, solid laser
Blinking Green - On and level, pulsed laser
Red - Tilt, the Product is not level or the Product
is i
n manual level mode.
Yellow - Battery low

Pulse button
Push to pulse the laser
D
Vertical laser
E
Horizontal laser
F
Wall bracket
