2052R/2062R/2000T
Users Manual
30

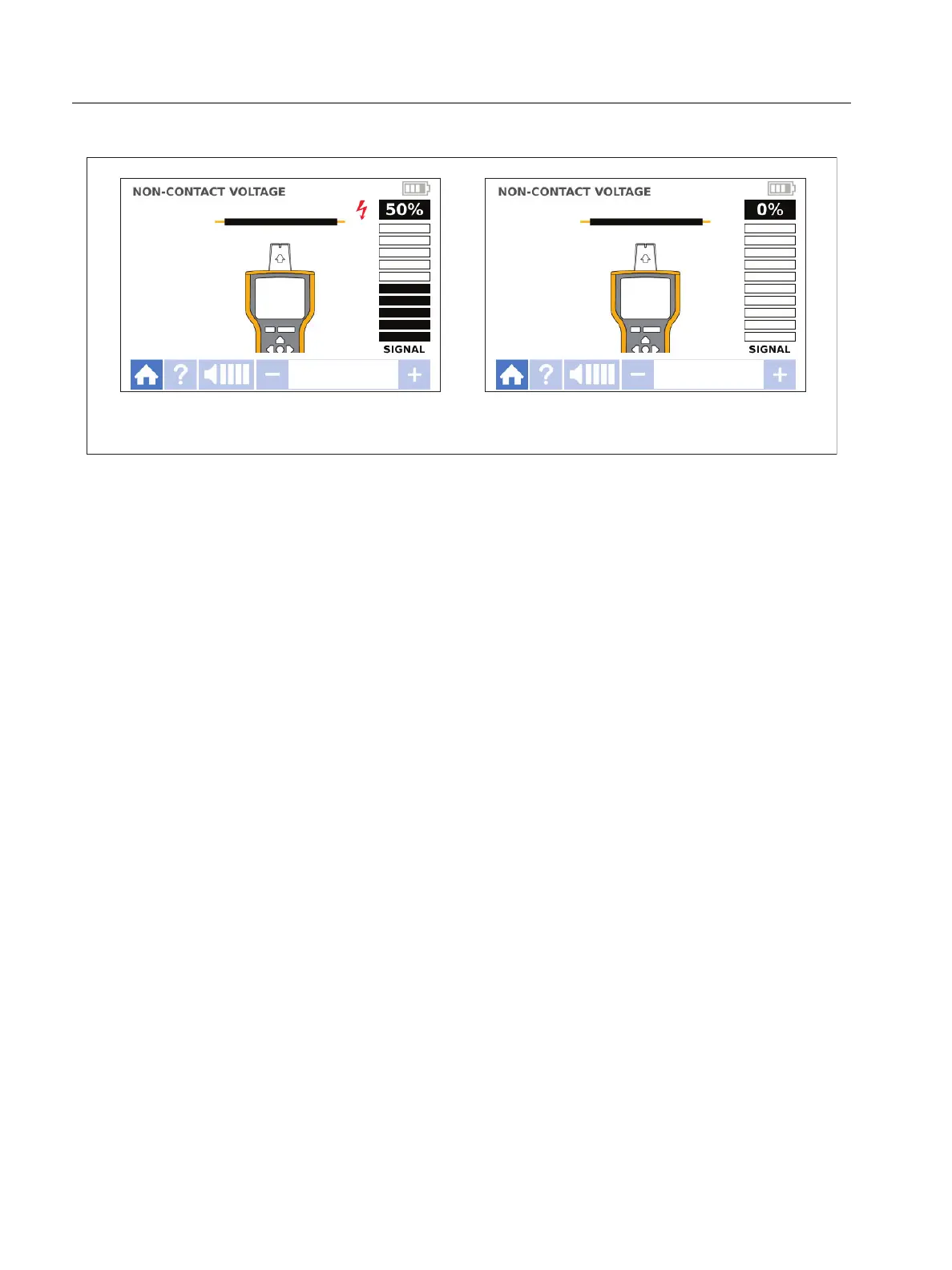

Figure 17. NCV Signal Strength (2062R)
Special Applications
For general instructions to connect the Transmitter, see Connect the Transmitter. Some
applications require the test leads to connect differently. For all applications, connect the
Transmitter on what would be the load-side of an energized circuit whether or not a circuit is
energized or de-energized.
Find a Broken or Open Wire
The signal generated by the Transmitter conducts along the wire while there is continuity in the
metal conductor.
Note
Natural materials in the earth, concrete, or asphalt and buried metal conduits can make
it difficult to trace a wire located underground.
Signal Detected Signal not Detected
