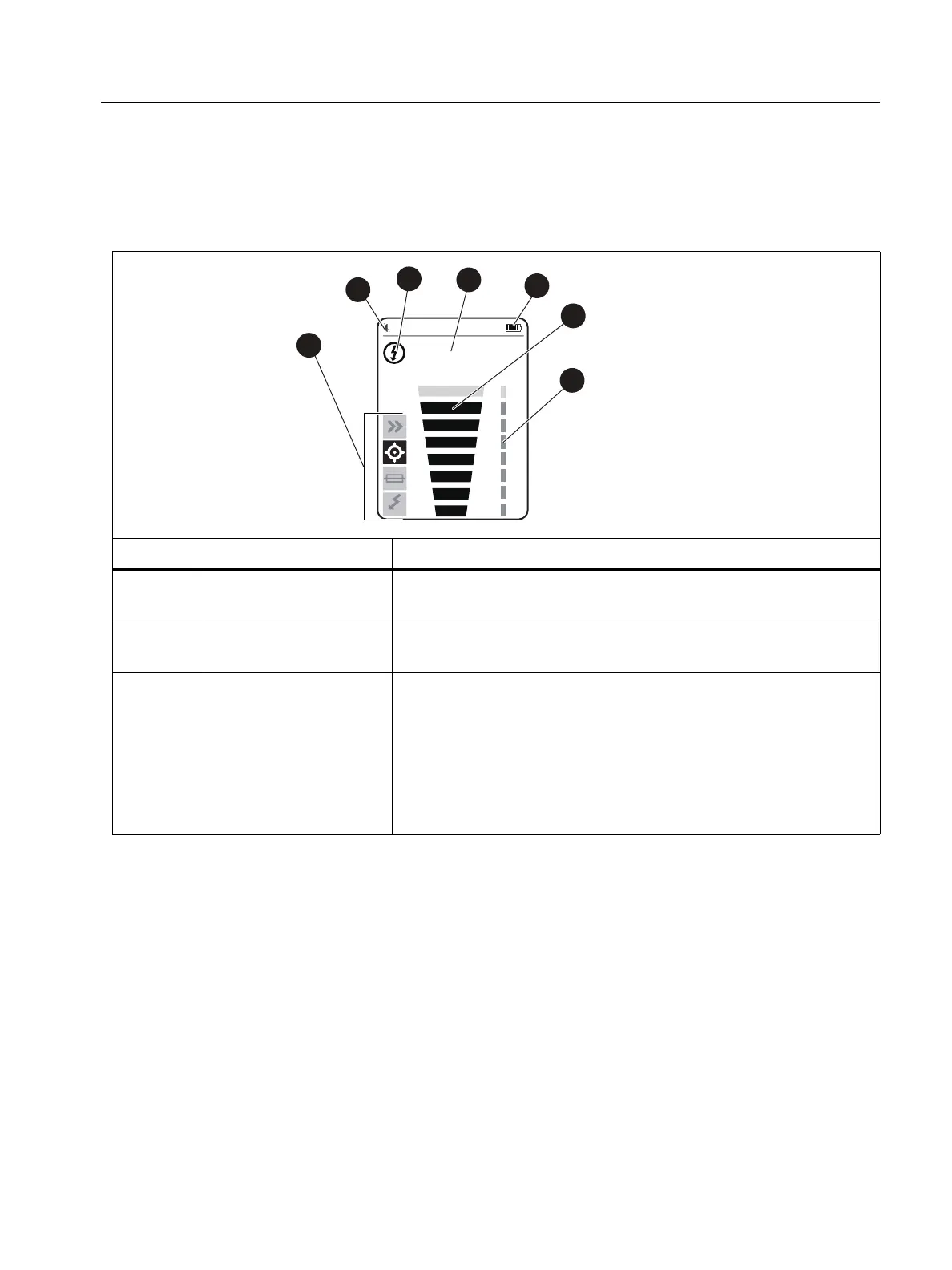

2052R Receiver Display
The display shows different features based on the selected mode. Ta b l e 3 shows the features
on the display of the 2052R receiver. To use the Receiver, see Use the Receiver.
Table 3. 2052R Display Features
Item Description Function

Tra ce mo de
indicators
Shows the selected mode. See Use the Receiver.

Volume level
indicator
Volume level

Energy status
indicator
: In non-NCV modes, the Receiver detects a signal on a
de-energized wire.
: In non-NCV modes, the Receiver detects a signal on an
energized wire. In NCV mode, the Receiver detects an AC
signal within the specifications of the Product.
See Tra n sm it te r.
NCV
88
6
7
4
2
5
1
3
