Wire Tracer Receiver and Transmitter
Special Applications
33

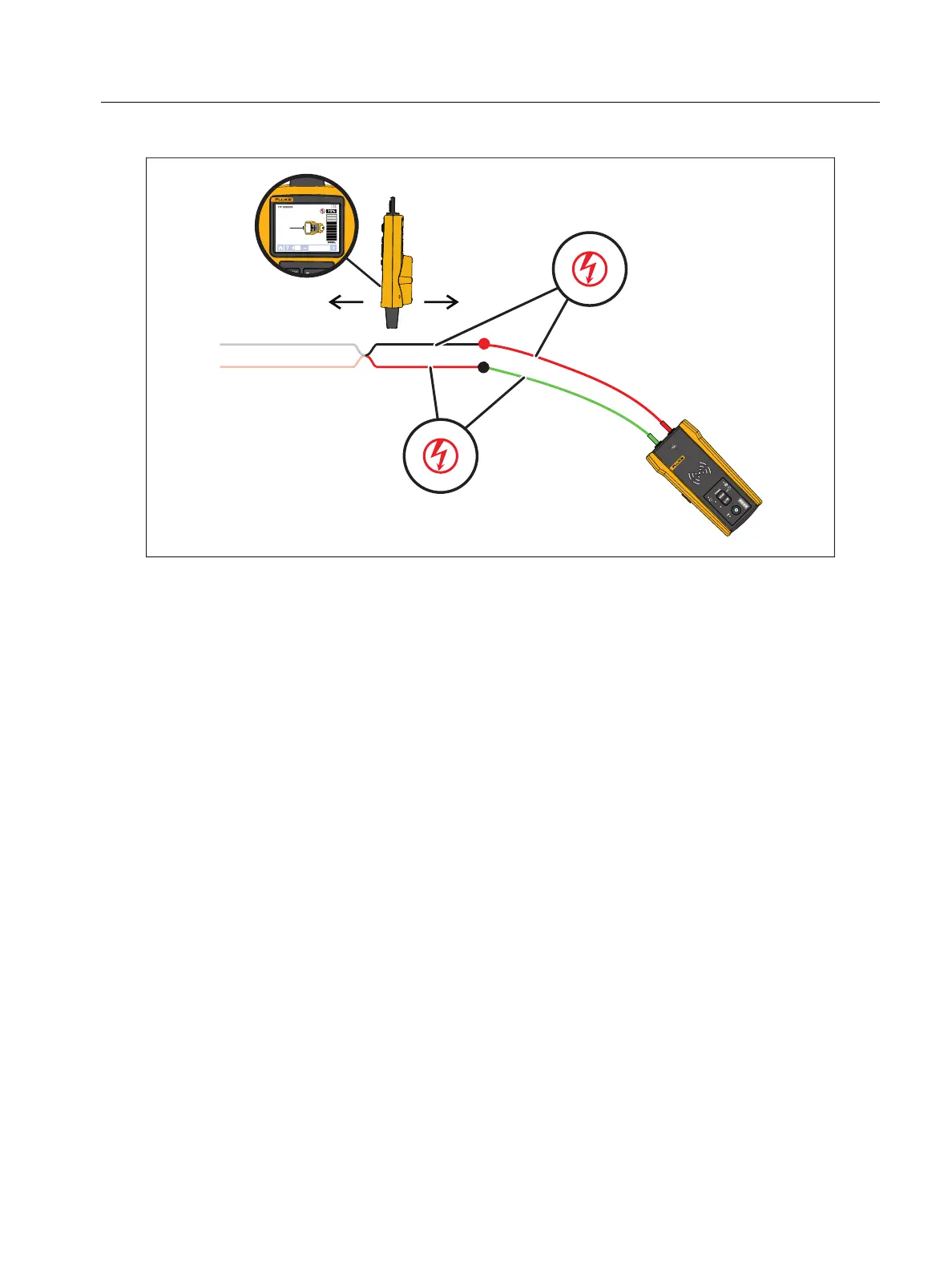

Figure 19. Trace a Short Circuit
3. On the Transmitter, select loop mode.
4. On the Receiver, select tip sensor mode.
5. Trace the wire until the signal stops.
6. Mark the location where the signal stops.
7. Verify the location of the short in the wire.
a. Move the Transmitter to the other end of the wire.
b. Trace from the opposite end of the wire to the location the signal stopped in the
previous step.
