Fluke 23 User Manual

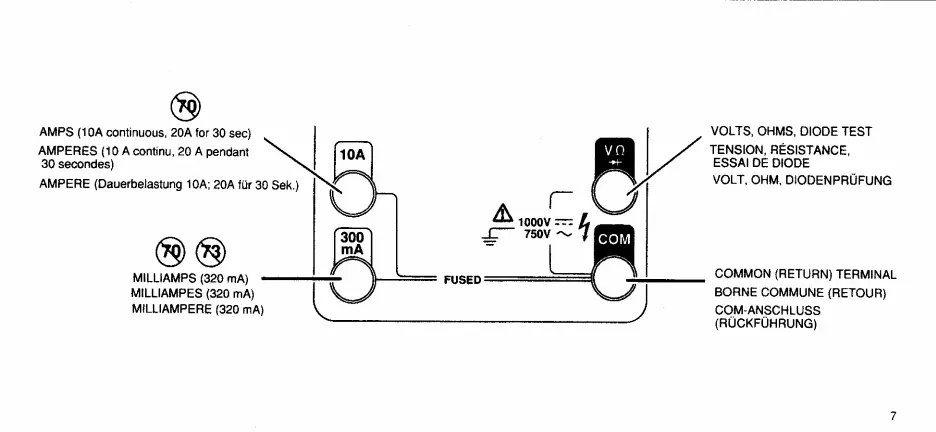

AMPS
(1 OA
continuous,
20A for
30 sec)
AMPERES
(10
A continu,
20
A
pendant
30
secondes)
AMPERE
(Dauerbelastung
10A;
20A fiir
30 Sek.)
(§){§)
MILLIAMPS
(320
mA)
•
MILLIAMPES
(320 mA)
MIUIAMPERE
(320
mA)
VOLTS,
OHMS,
DIODE
TEST
TENSION,
RESISTANCE,
ESSAI
DE
DIODE
VOLT,
OHM,
DIODENPROFUNG
FUSED
COMMON
(RETURN)
TERMINAL
BORNE
COMMUNE
(RETOUR)
COM-ANSCHLUSS
(RUCKFUHRUNG)
7

Fluke 23 Specifications

General

Type	Digital Multimeter
Display	LCD
DC Voltage Range	0.1 mV to 1000 V
Continuity Check	Yes
Diode Test	Yes
Power Supply	9V Battery
Weight	340 g
DC Current Range	0.1μA to 10A
AC Current Range	0.1μA to 10A
Resistance Range	0.1 Ω to 20 MΩ
Battery Life	200 hours
Safety Rating	CAT III 600V
