Fluke 572 User Manual

10
572

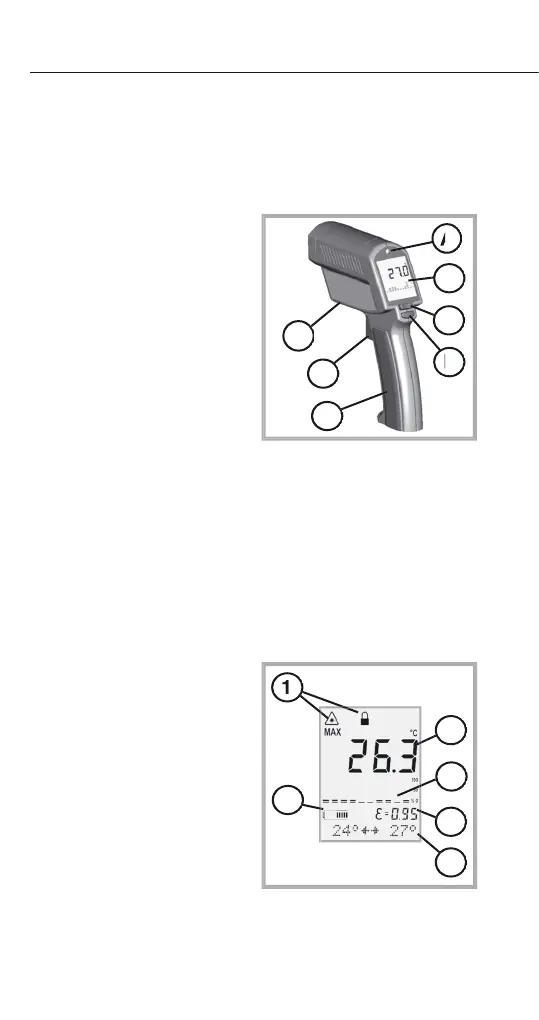

Functions and Display
Function keys and dis-
play:
(A) Visual and audible
Hi-Alarm
(B) Display
(C) Up and Down keys
(D) Enter
(E) Switches for adjust-
ments (inside the
unit’
s
handle)
(F) Trigger
(G) Tripod mount
(underside of unit)
FUNCTIONS
USER INTERFACE
Displayed functions:
(1) Laser condition /
Lock symbol
(2) Main temperature
display
(3) Graphic display
(4) Emissivity value
(5) Status bar
(6) Battery life indicator
DISPLAY
1
2
3
4
5
6
A
A
B
C
D
D
E
F
G

Fluke 572 Specifications

Temperature

temperature range	-30 to 900°C (-25 to 1600°F)
ambient operating range	0 to 50°C (32 to 122°F)
storage temperature	-20 to 50°C (-4 to 122°F)

Display

display resolution	0.1°C (0.2°F)
accuracy at 25°C	± 0.75% of reading or ± 1K (± 1.5°F)
repeatability	±0.5% of reading or ±1°C (±2°F)

Power

power	2 x 1.5 V Alkaline Type AA
battery life	13 hrs. (50% laser and 50% backlight used)
response time (95%)	250 mSec

Dimensions

dimensions	200 x 170 x 50 mm (7.9 x 6.7 x 2 inches)
tripod mount	1/4”-20 UNC
optical resolution (standard focus)	60 : 1 (19mm spot size at 1.15M)
