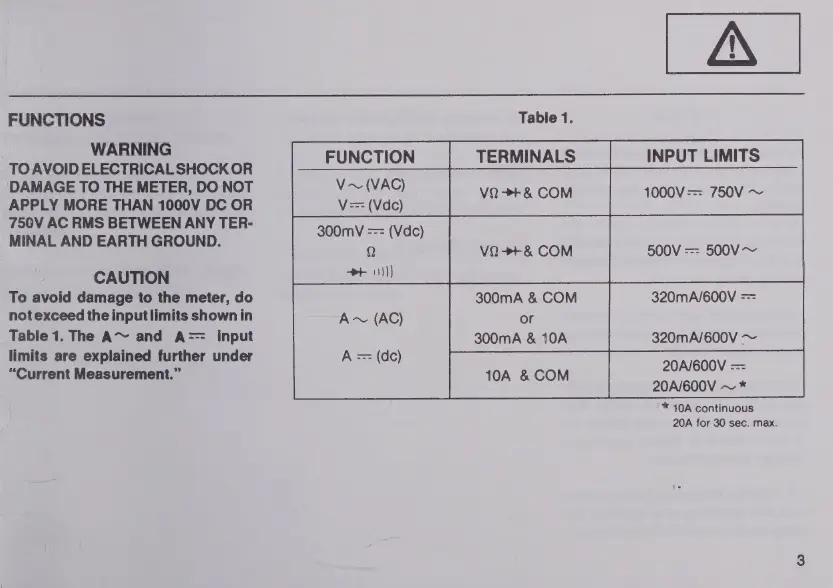

FUNCTIONS
WARNING
TO AVOID ELECTRICAL SHOCK OR
DAMAGE TO THE METER, DO NOT
APPLY MORE THAN 1000V DC OR
750V AC RMS BETWEEN ANY TER-
MINAL AND EARTH GROUND.
CAUTION
To avoid damage to the meter, do
notexceed the input limits shown in
Table 1. The A and A= input
limits are explained further under
"Current Measurement."
Table 1.
FUNCTION
V~ (VAC)
V= (Vdc)
300mV = (Vdo)
Q
+ 1))))
TERMINALS INPUT LIMITS
VA >+& COM 1000V = 750۷ ~
VQ ++ & COM 500V == 500۷ —
300mA 8 COM
or
300mA 8 10A 320mA/600V ~
20A/600V ==
10A 8 COM 20A/600V ~*
* 10A continuous
20A for 30 sec. max.
320mA/600V ==
