825А
REFERENCE FLUKE USE
DESIGNATION DESCRIPTION STOCK NO. CODE
Resistor, wirewound, 76K, 0.5%, 1/2W
Resistor, variable, wirewound, 5K, 20%, 1-1/4W
Vacuum tube, filament regulator, 9-7 9-7
Vacuum tube, pentode, EL84/6BQ5 EL84/6BQ5
Lamp, neon glow, NE2E X40B
Vacuum tube, voltage reference, OG3-2 *OG3-2
Vacuum tube, duo triode, 12AX7 12AX7
Vacuum tube, duo triode, 12AX7 12AX7
R115 R114 CR102
V104 C101 C102 R107 | C104} CRIOI CR103
Go
C105 R118 R104 R120 R109 У106 V102 V103 R116 R102 R103

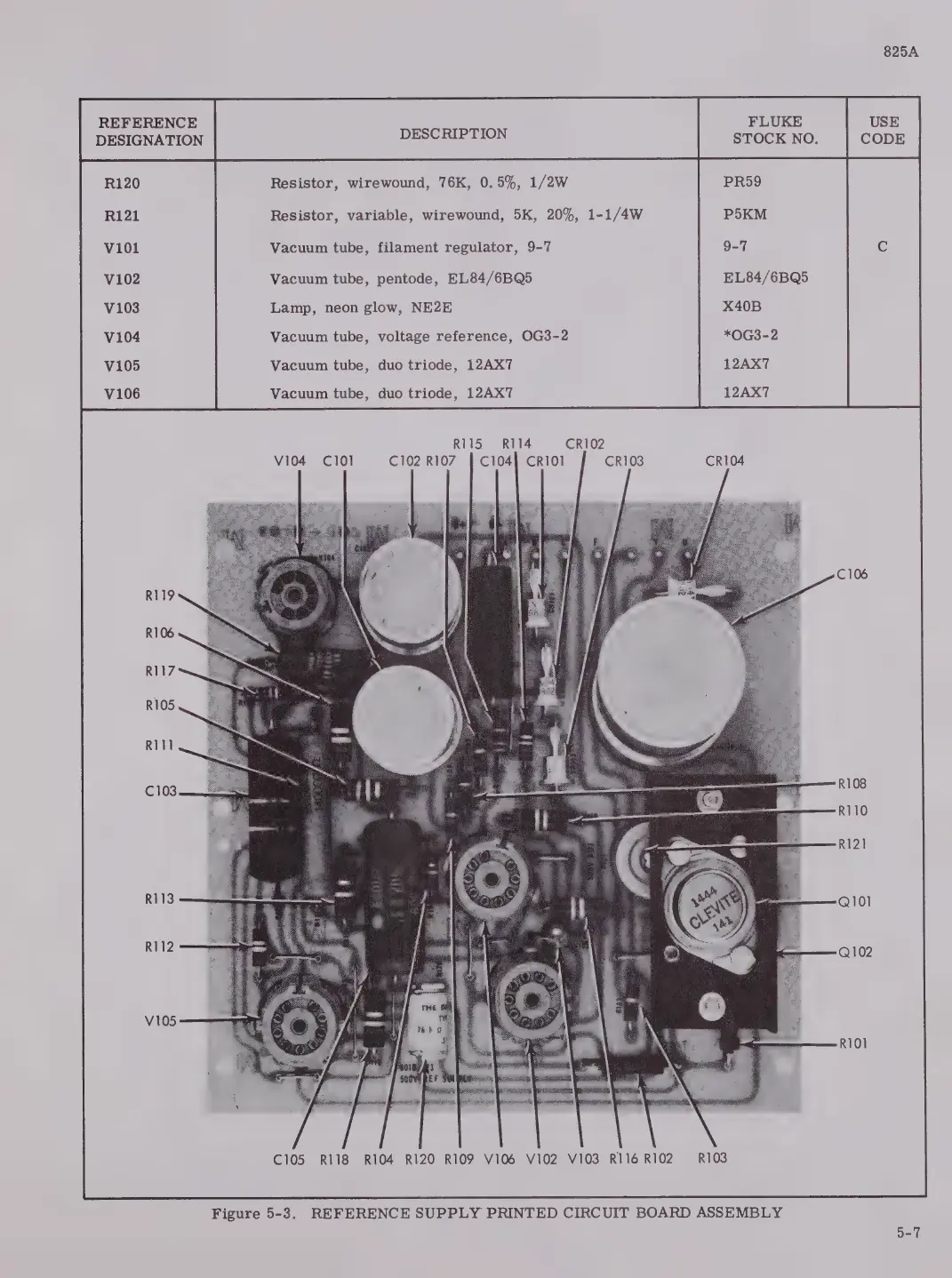

Figure 5-3. REFERENCE SUPPLY PRINTED CIRCUIT BOARD ASSEMBLY
