Fluke 825A - Page 41

REFERENCE
DESIGNATION
R401 thru
R406**
R407 thru
R417**
R418 thru
R428**
R429 thru
R439**
R440 thru
R449
825A
FLUKE
DESCRIPTION
STOCK
NO.
Kelvin-Varley Resistor Board Assembly *801B-403
Resistor, wirewound, 40K +0. 02%, 1/2W *PR512
Resistor, wirewound, 8K +0.02%, 1/2W *PR48
Resistor, wirewound, 1.6K +0.01%, 1/8W *34-2121
Resistor, wirewound, 3202 +0.1%, 1/2W *PR39
Resistor, wirewound, 640 +0.1%, 1/2W *PR24
**These resistors are factory matched for each
instrument. When ordering, specify instrument
serial number.
R401 thru R406
R407 thru R417
R418 thru R428
R429 thru R439
R440 thru R449

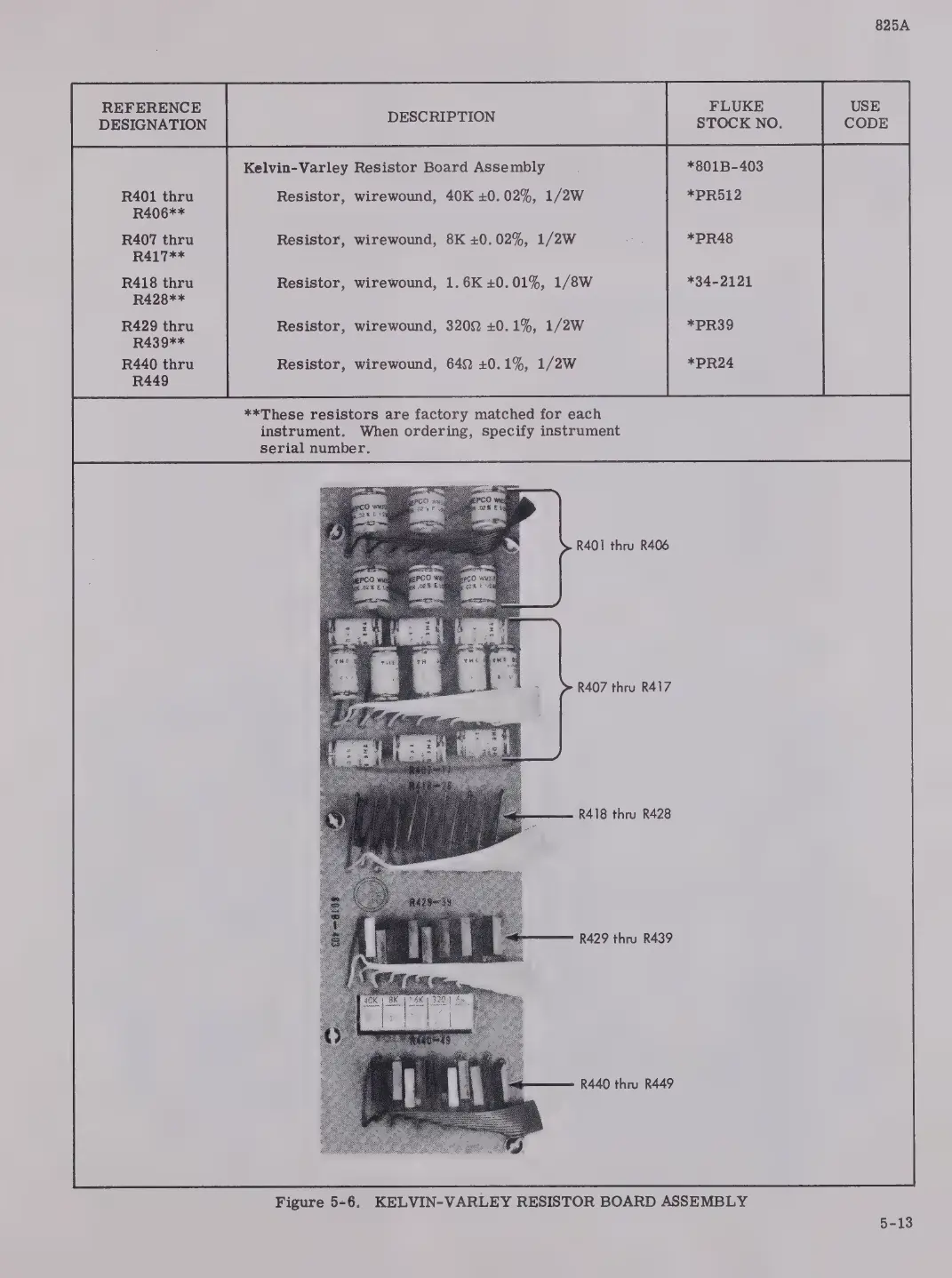

Figure 5-6. KELVIN-VARLEY RESISTOR BOARD ASSEMBLY
5-13
