Fluke 8508A - Page 117

List of Replaceable Parts
Parts Lists 5
5-11
H2
7
MP1
MP5
4
MP2
MP2
2
2
MP4
H7
H4
12
6
H5
6
J6
J1
J2
J3
J4
J5
ALL WIRES EXCEPT GREEN
LOOP ONCE THROUGH FERRITE
RED
RED
RED
BLU
BLK
BLK
GREEN WIRE
RED WIRE
PINK WIRE
BROWN WIRE
BLUE WIRE
WHITE WIRE
BLACK WIRES - FIT THIN
WIRE UNDER THICK WIRE
NOTE !! POSITION CAPACITOR
AWAY FROM OTHER TERMINALS.
MP3
L1
H3
H6
C2
C1
W1
H1
A1
avw029f.eps

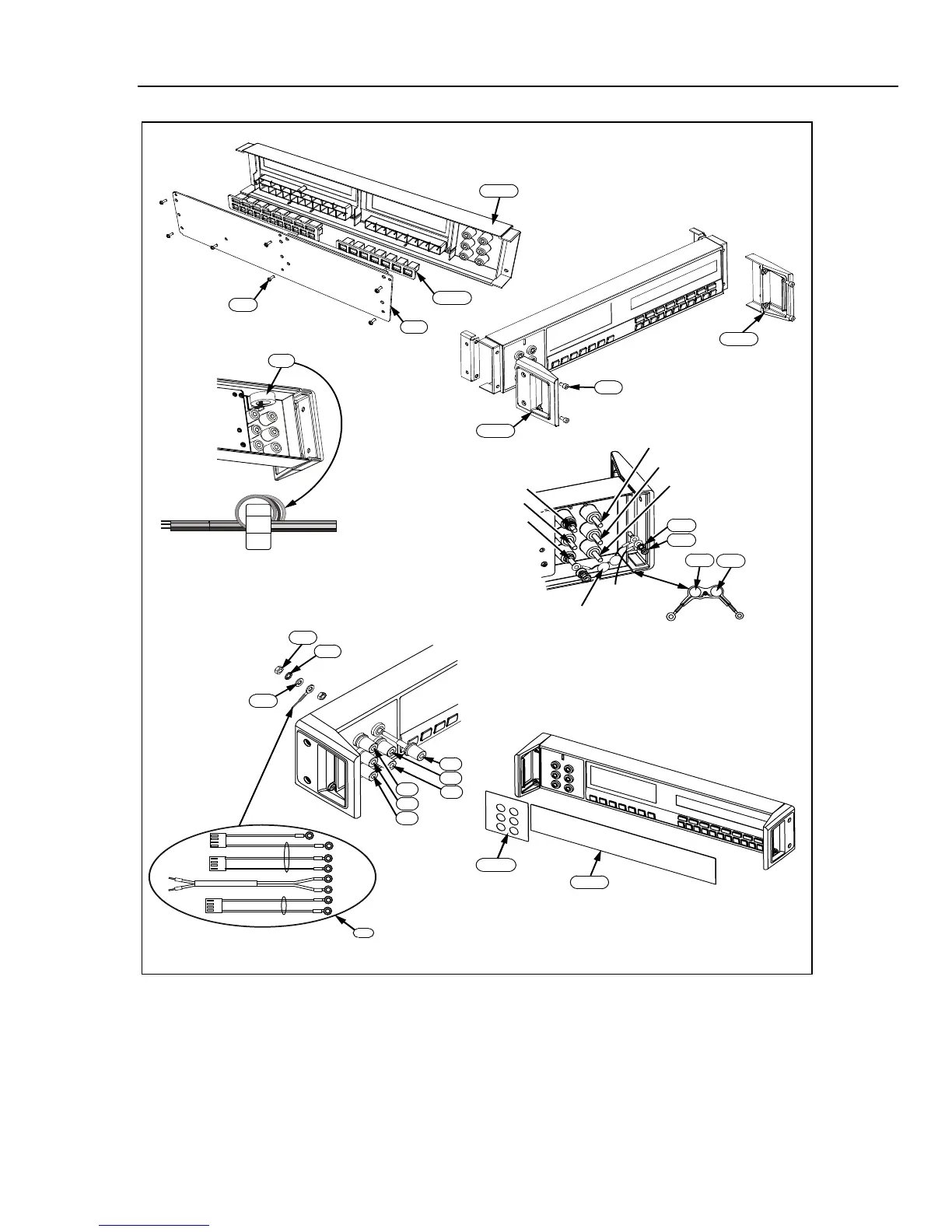

Figure 5-3. A5 Bezel (front panel) Assembly
