7528
NOTE
If either the 7528 or the KELVIN-VARLEY voltage
dividers are not grounded through a rack-mounted
case, provide an earth ground for both
instruments.
1OV REFERENCE
KELVIN-VARLEY
STANDARD DIVIDER
PI 1 WV SOURCE
ww
752A
NVLL DETECTOR
NOTE: Set 752A
mode
wllch 10 “IOOV, 1oO:l”
NOTE
If the NULL DETECTOR is line operated, return this
shield connection back to the 7528 GUARD. The
purpose of the case ground connection shown in
Figure 3 is to provide an e,arth ground to a
battery operated NULL DETECTOR case. In this
instance, the ground connection comes through the
shield wires to the WT. It is important this
connection to earth ground be made for any battery
operated
Fluke
84588 NULL DETECTOR.

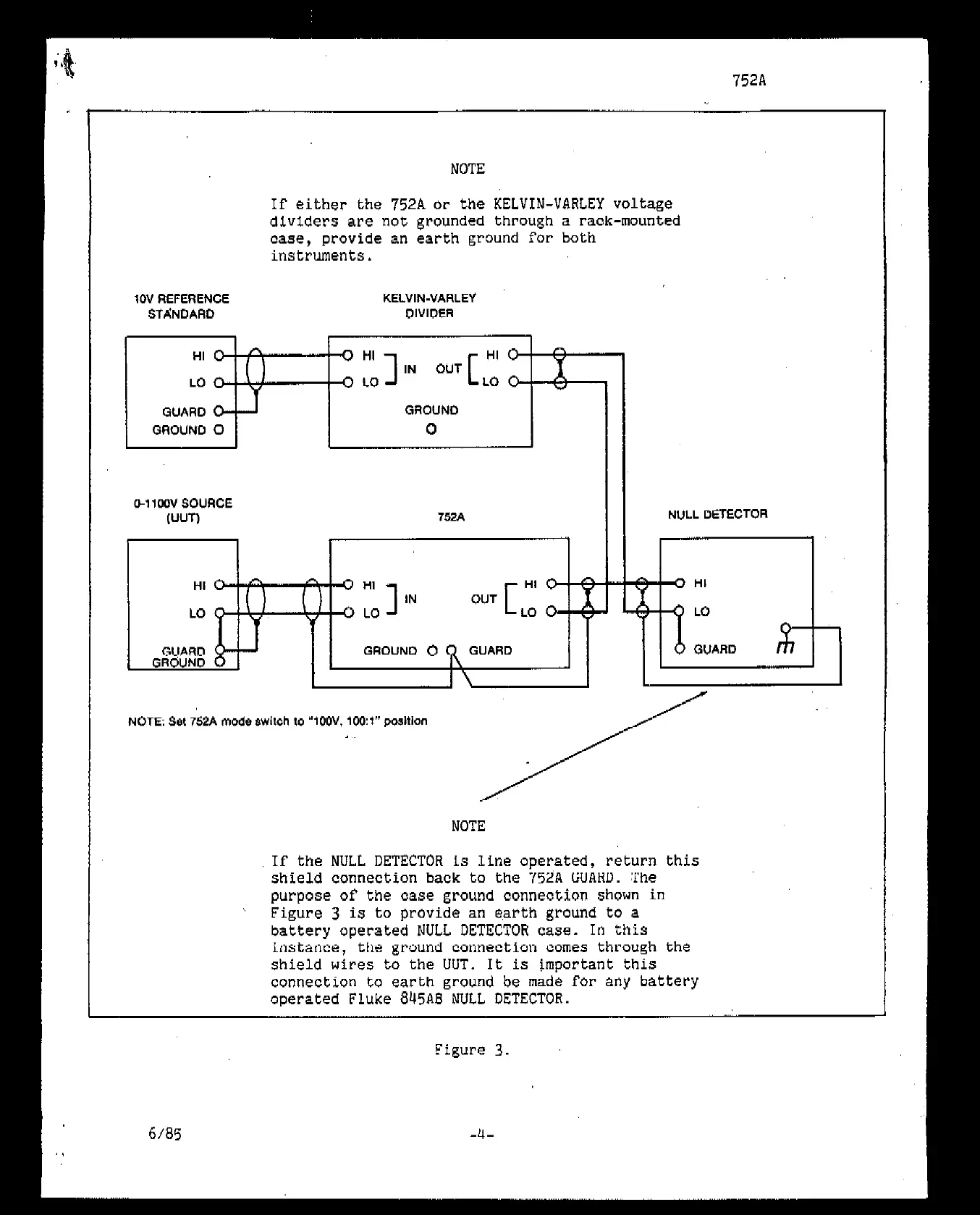

Figure 3.
6/85
-4-
