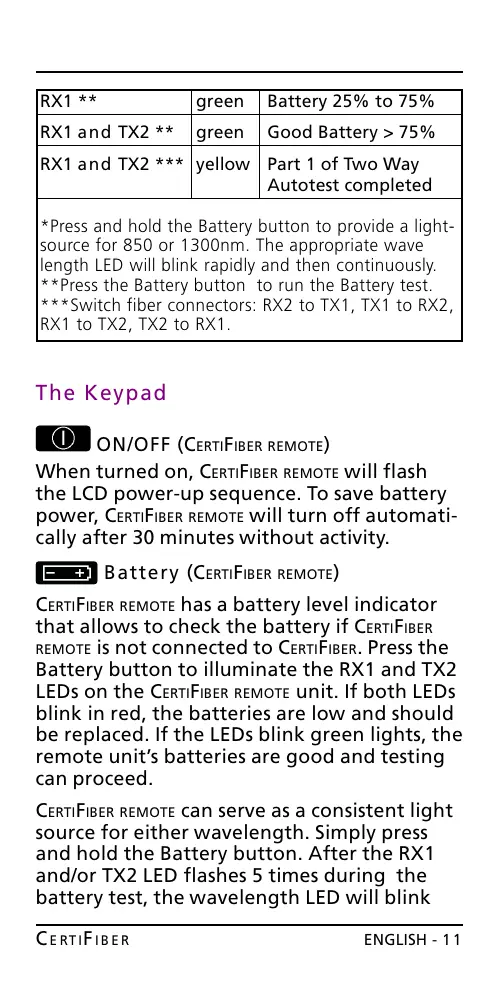

CERTIFIBER ENGLISH - 11
RX1 ** green Battery 25% to 75%
RX1 and TX2 ** green Good Battery > 75%
RX1 and TX2 *** yellow Part 1 of Two Way
Autotest completed
*Press and hold the Battery button to provide a light-
source for 850 or 1300nm. The appropriate wave
length LED will blink rapidly and then continuously.
**Press the Battery button to run the Battery test.
***Switch fiber connectors: RX2 to TX1, TX1 to RX2,
RX1 to TX2, TX2 to RX1.
The Keypad
ON/OFF (CERTIFIBER REMOTE)
When turned on, CERTIFIBER REMOTE will flash
the LCD power-up sequence. To save battery
power, CERTIFIBER REMOTE will turn off automati-
cally after 30 minutes without activity.
Battery (CERTIFIBER REMOTE)
CERTIFIBER REMOTE has a battery level indicator
that allows to check the battery if CERTIFIBER
REMOTE is not connected to CERTIFIBER. Press the
Battery button to illuminate the RX1 and TX2
LEDs on the CERTIFIBER REMOTE unit. If both LEDs
blink in red, the batteries are low and should
be replaced. If the LEDs blink green lights, the
remote units batteries are good and testing
can proceed.
CERTIFIBER REMOTE can serve as a consistent light
source for either wavelength. Simply press
and hold the Battery button. After the RX1
and/or TX2 LED flashes 5 times during the
battery test, the wavelength LED will blink
