Fluke i1010 User Manual

I410/i1010
English
Panel 4

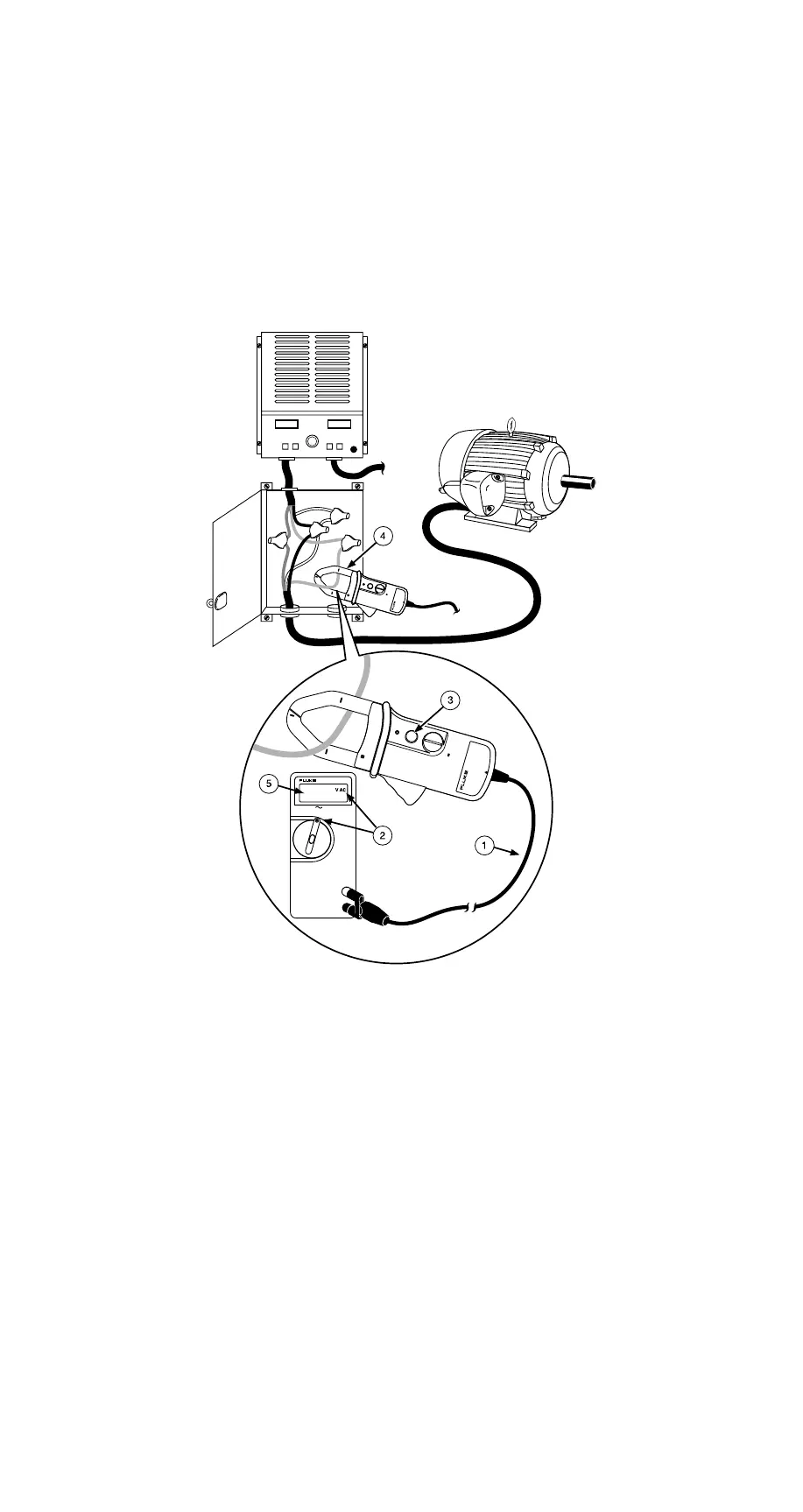

Measuring AC Current
Maximum: 400 A ac rms (i410) or 600 A ac rms (i1010)
0
1
3
2
4
5
6
7
8
9
10
Speed
C
LAM
P
M
E
T
E
R
i410
ZERO
A
600V
CAT
600V
600A
CLAMP METER
i410
ZERO
A
600V
CAT
600V
600A
V
76
TRUE RMS MULTIMETER
ar003i.eps
A Connect to voltmeter.
B Select mV ac (or V ac, but resolution may be limited to
1 A.)
C Set ON.
D Clamp and center around conductor.
E Read voltmeter (1 mV = 1 A.)
1.888.610.7664 sales@GlobalTestSupply.com
Fluke-Direct
.com

Fluke i1010 Specifications

General

Interface	Banana plugs
Cord length	1.6 m
Product color	Red, Yellow
DC voltage (max)	600 V
Measurement category supported	CAT III
Quantity per pack	1 pc(s)
