True-rms Multimeter
Maintenance
13
Maintenance
Maintenance of the Meter consists of battery and fuse replacement, as well as case cleaning.
Testing the Fuse (115, 117)
Test fuse as shown in Figure 1.

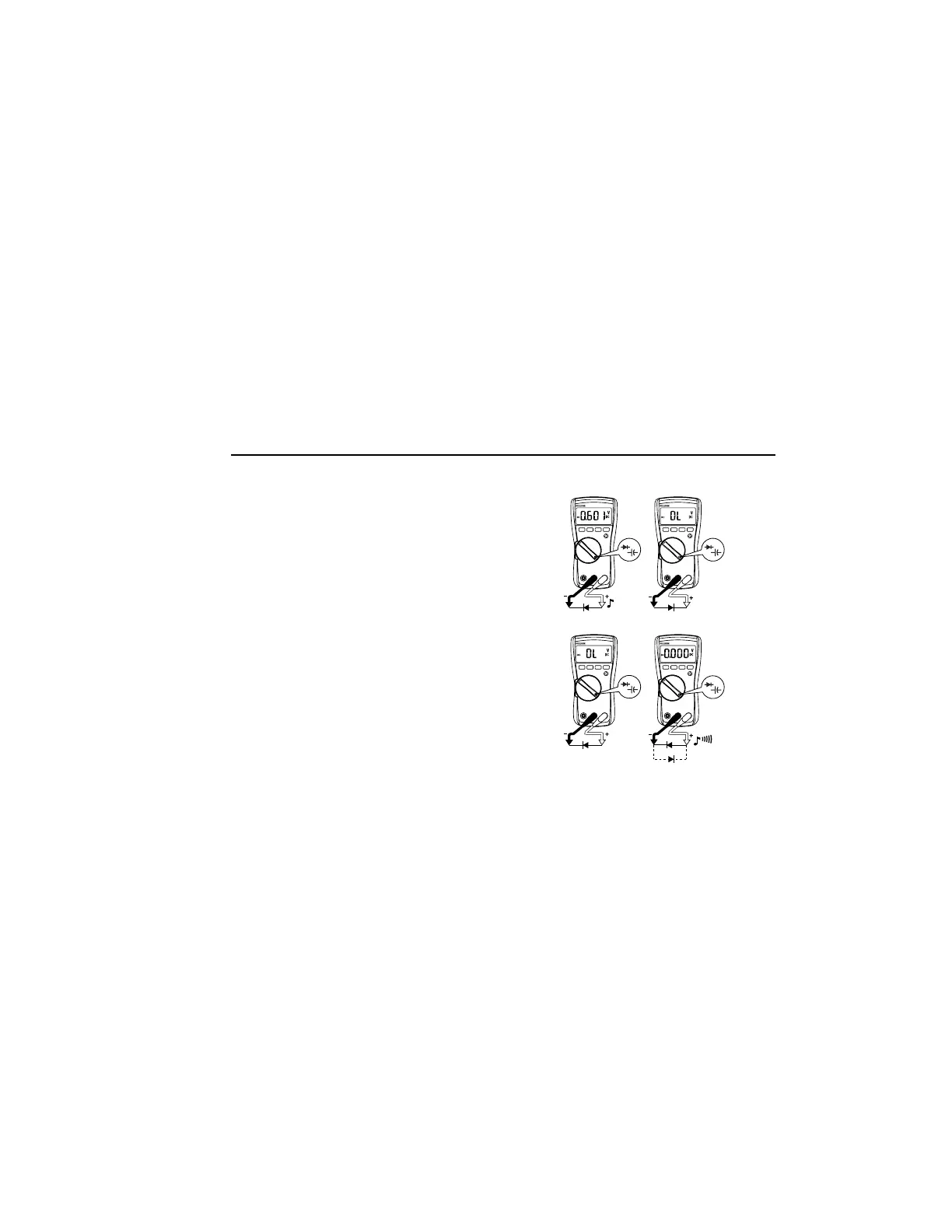

Figure 1. Test the Fuse
Replacing the Battery and Fuse
XW Warning
To avoid shock, injury, or damage to the Meter:
• Remove test leads from the Meter before opening the case or battery door.
• Use ONLY a fuse with the amperage, interrupt voltage, and speed ratings specified.
See Figure 2 for disassembly.
Figure 2. Disassembly
<.5
OK
OK
