114, 115, and 117
Users Manual
16

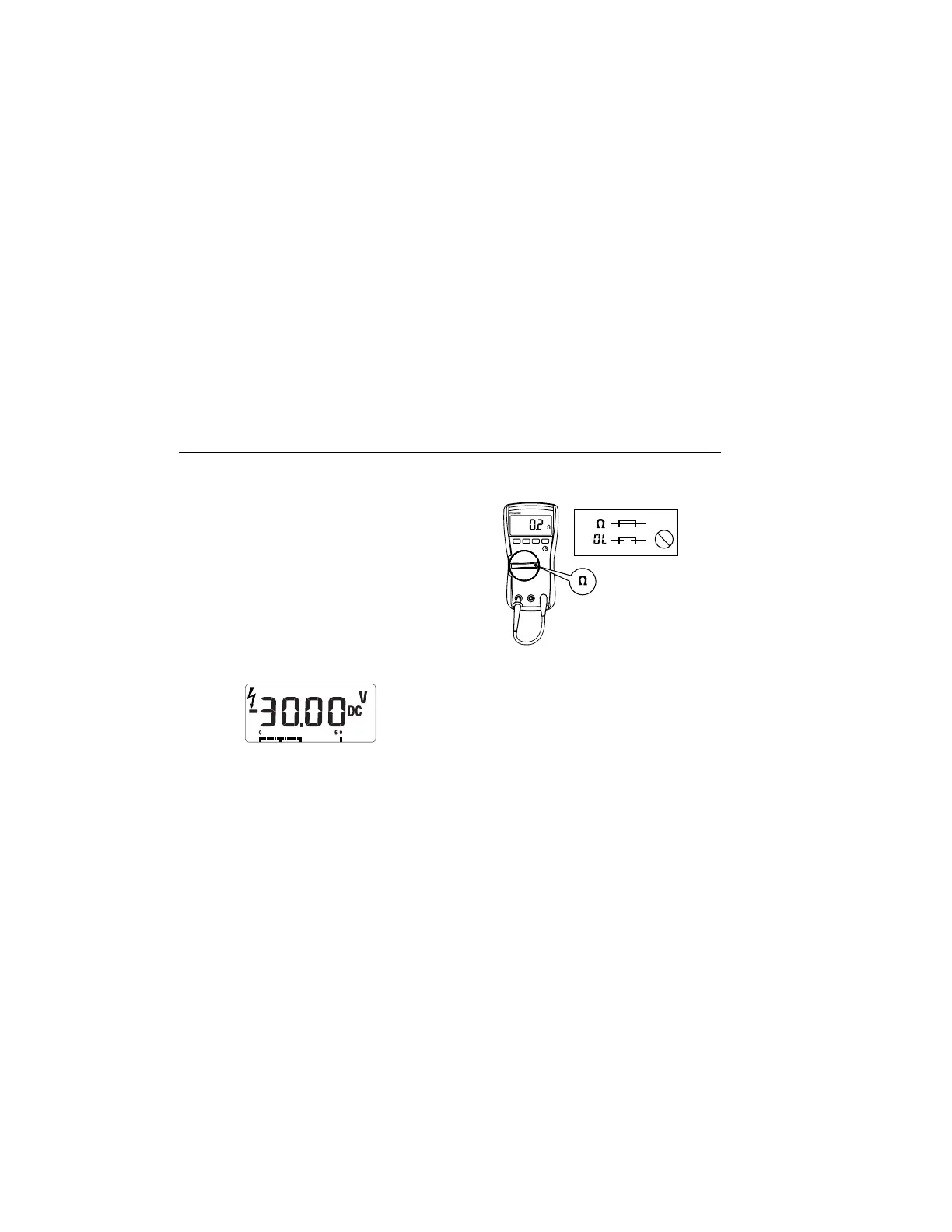

Using the Bargraph
The bar graph is like the needle on an analog meter. It has
an overload indicator (>) to the right and a polarity
indicator (+)to the left.
Because the bar graph is much faster than the digital
display, the bar graph is useful for making peak and null
adjustments.
The bar graph is disabled when measuring capacitance. In
frequency, the bar graph and range annunciator indicates
the underlying voltage or current up to 1 kHz.
The number of segments indicates the measured value and
is relative to the full-scale value of the selected range.
In the 60 V range, for example (see below), the major
divisions on the scale represent 0, 15, 30, 45, and 60 V. An
input of āˆ’30 V turns on the negative sign and the segments
up to the middle of the scale.
aej11f.eps
Testing the Fuse (115 & 117 only)
Test fuse as shown below.
<.5
OK
OK
edy10f.eps
