Fluke IRR1-SOL User Manual

2

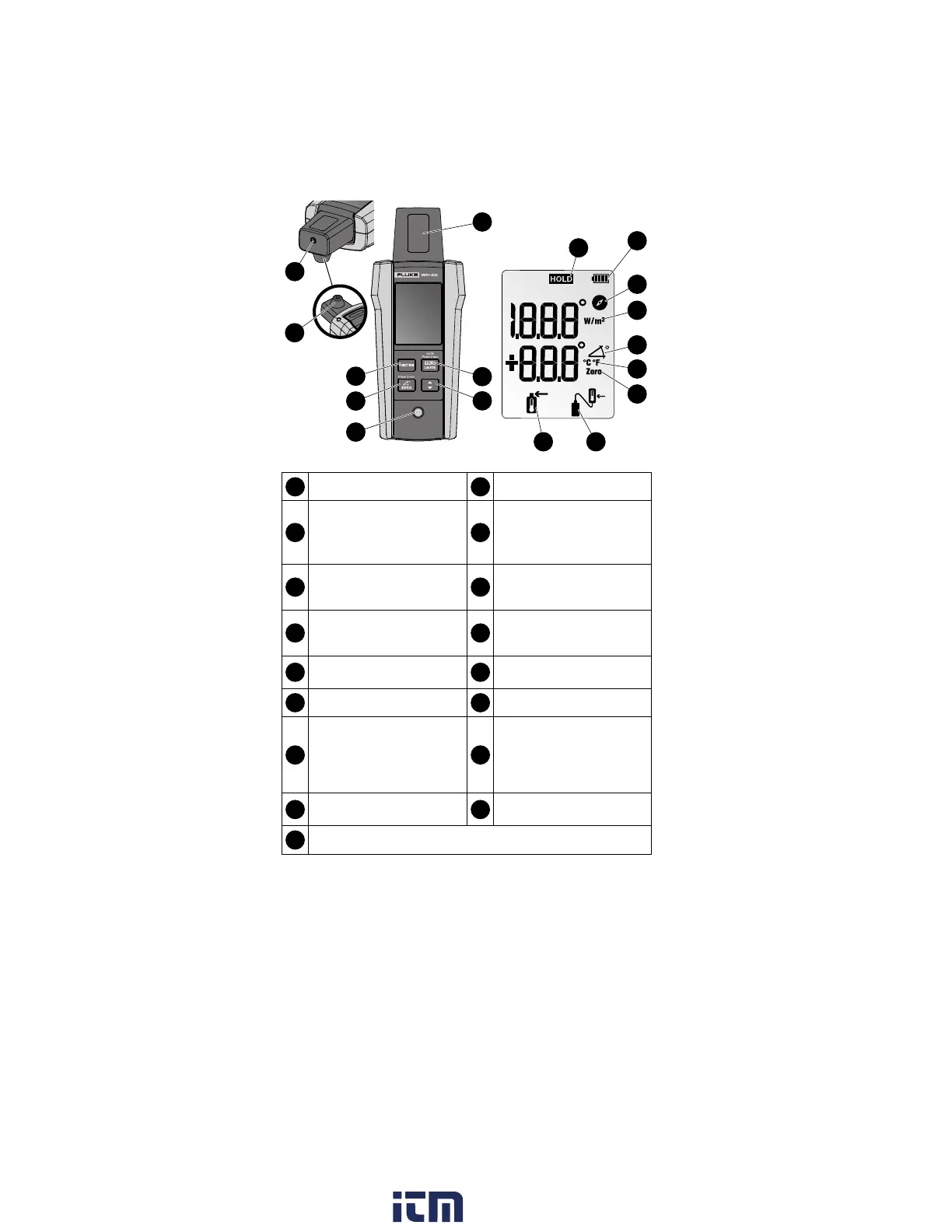

Product Overview
1
2
3
7
8
6
9
10
11
12
13
14
15
1617
5
4
1
ON/OFF Button
10
Battery Level Indicator
2
Angle Reset Button
* Use function to measure
angle di󰀨erence between solar
panel and surface
11
Compass Function Indicator
3
Function key for Irradiance,
Temperature, Compass and
Angle measurements
12
Irradiance Units and
Function Indicator
4
Integrated Temperature
Sensor for panel's surface
measurement
13
Angle Function Indicator
5
External Temperature
Probe Socket
14
Temperature Units Indicator
(Celsius / Fahrenheit)
6
Photovoltaic Irradiance Sensor
15
Angle Reset Indicator
7
Hold Button to hold
measurement on the display
*Push button for 2 seconds
to enable Temperature Units
Change mode
16
External Temperature
Probe Indicator
8
Temperature Units Switch
Button (Celsius / Fahrenheit)
17
Integrated Temperature
Sensor Indicator
9
Hold Indicator
