Fluke PM6681 - Page 120

Figure
9-5
Solder all leads with plenty of
solder, don't
worry about
short-circuits at this
stage.
Figure
9-1
Heat the
leads and push a thin aluminum
sheet
between the leads and the pea.
Figure
9-3
Place solder on
the
pad.
Figure
9-7
Use a strong magnifying glas
to
make
sure there are no
short/circuits
or unsolde-
red leads.
9-2

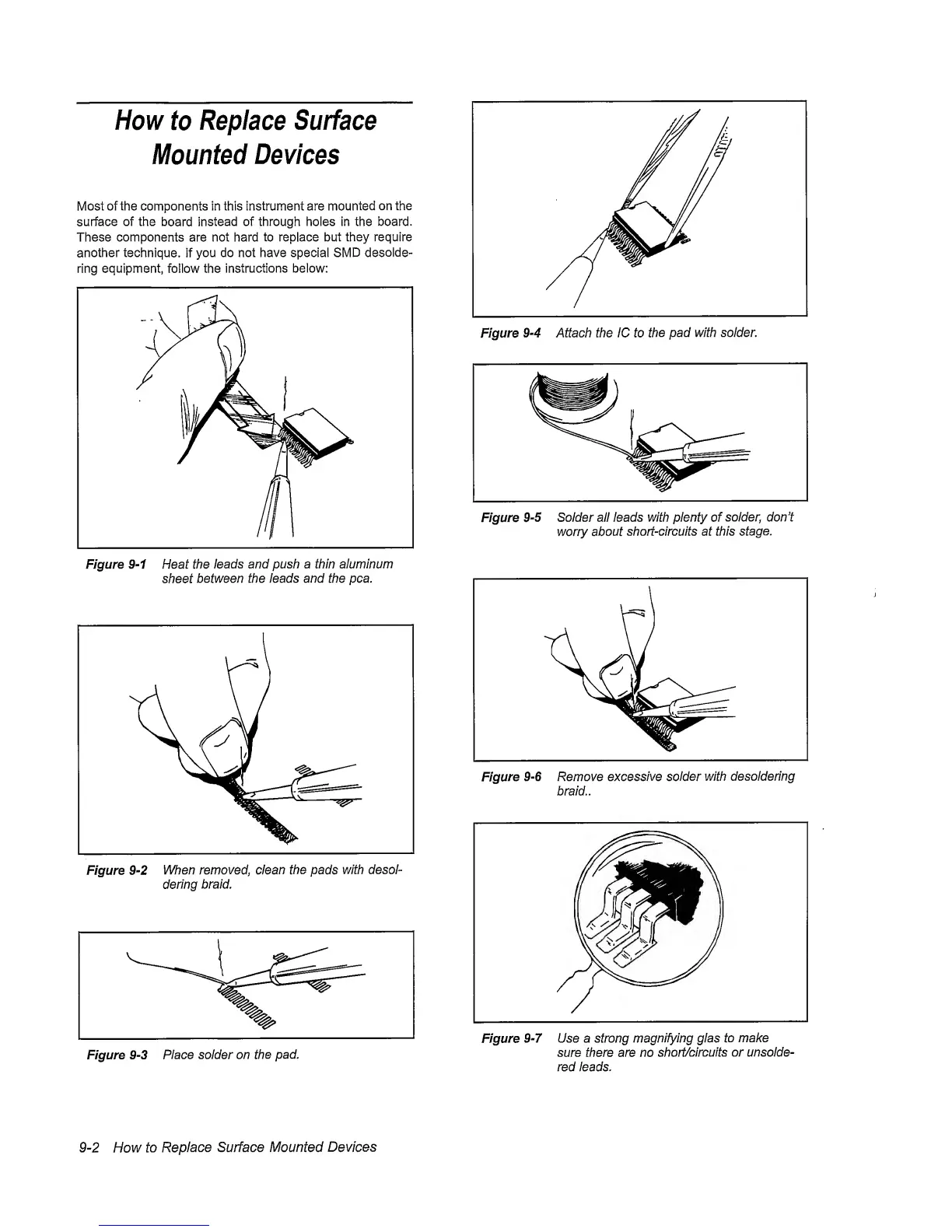

How
to
Replace Surface Mounted
Devices
I
