Rear
Panel
Unit
The
rear panel consists of an
aluminum
panel with some
mounted connectors,
(see Figure 4-25).
The following
con-
nectors
are mounted on the rear
panel:
INPUTS:
—
External
reference input
-
BNC
(
D
)
—
External arming input
-
BNC
(
E
)
—
Rear panel inputs
(factory-mounted
option)
-
Power
supply inlet including EMI filter
OUTPUTS:
-
Internal reference output
-
BNC
(
G
)
-
Gate open output
-
BNC
(
H
)
-
Analog output
(X).
-
Probe compensation output.
-
Trigger level
output.
-
A GPIB
communication connector.

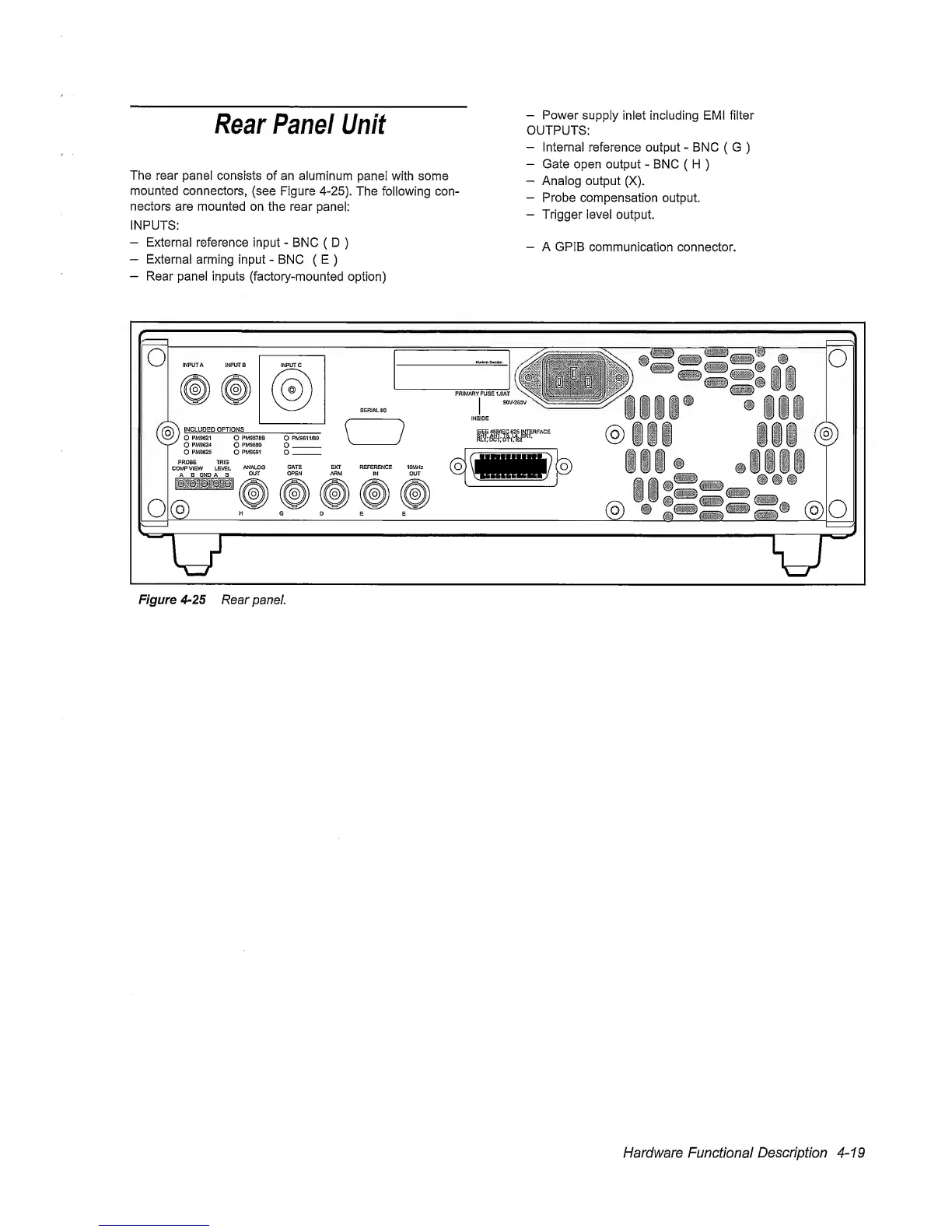

Figure
4-25
Rear
panel.
Hardware Functional
Description
4~19
